Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch(mm): | 4mm, 5mm, 6mm, 8mm; P4 P5 P6 P8 | Screen Size: | 4㎡,5㎡,6㎡,7㎡,8㎡,9㎡,10㎡,12㎡ As Per Chassis Size |
|---|---|---|---|
| Control Mode: | VGA Synchronous | Type: | One Side LED Screen |
| Picture Tube Chip Color: | Full Color And Monochrome | Drive Model: | 4x2/6 Wheels/4*2 |
| Wheelbase(mm): | 2300mm 2800mm 3300mm 3360mm 3400mm 3800mm 4500mm 4700mm 5600mm | Color: | White; Blue; Green; Yellow; Customized |
| High Light: | scrolling billboard truck,mobile led display truck |
||
P6 LED billboard truck scrolling light box truck single side LED full color screen truck
Product Description
1. Purpose: For mobile advertising, products promotion, branding, concerts and so on. It can on-site display, exchange, interaction, wide publicity and gain great effective of advertising.
2. Main parts: LED screen, Generator set, Computer, Control system etc.
3. Optional items: Mobile stage
4. LED screen: SMD P4 P5 P6 P8 for optional.
5. Generator brand: China famous brand and Internation brand for optional
6. Scrolling light box: Light box size as per different chassis
| Condition | New condition/RHD/LHD/4x2 | ||
|
Chassis |
Brand | Foton | |
| Model | BJ | ||
| Curb weight(kg) | 8495 kg | ||
| Wheelbase(mm) | 3800 mm | ||
| Dimensions(mm) | 7290*2330*3350 mm | ||
| Front/Rear axle loading(kg) | 3200/6000 kg | ||
| Front/Rear overhang(mm) | 1120/2355 mm | ||
| Wheel track (front/rear) (mm) | 1685/1615 mm | ||
| Approach/Departure angle(°) | 22/11 | ||
| Max. driving speed(km/h) | 90 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brakes |
Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Quantity | 6pcs with one spare tire | |
| Specifications | 7.50-16 | ||
| Transmission | Manual type, 6 Forwards and 1 reverse | ||
| Cabin | Single row seat, Tiltable. It can accommodate three people. With air conditioner | ||
| Engine | Model | YZ4105ZLQ | |
| Fuel type | Diesel | ||
| Displacement(ml) | 4087 ml | ||
| Power(kw) | 105 kw | ||
| Horsepower(HP) | 143 HP | ||
| Cylinder number | 6 | ||
| Emission standard | Euro 2 | ||
| LED Advertising Screen System | |||
| Upper |
1. P6: One side P6 LED outdoor full color display screen, size 4800*2112 mm with lifting function 2. P5: One side P5 LED outdoor full color display screen, size 4800*2112 mm with lifting function 3. Another side 4800*2112 mm and rear side 1536*1536 mm outdoor full color display screen 4. Omar Silent diesel generator set 5. Control system,sound system 6. Amplifier 1pc, Control Panel 1pc. 7. Waterproof wood floor |
||
| Remarks | Color is optional | ||

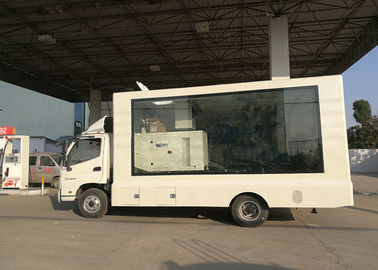

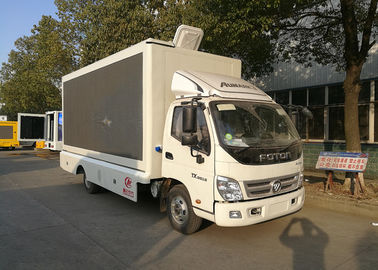

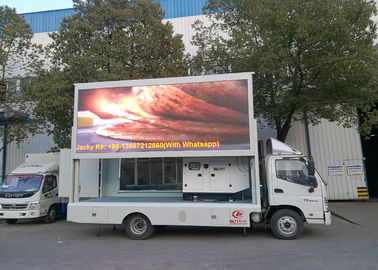

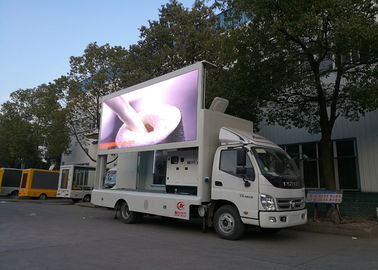

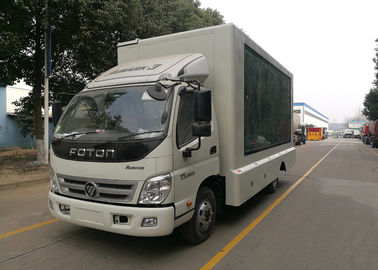

Products Show
Sales Service
①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of Mobile Advertisement Truck products I can order from your company?
A: We can supply all kinds of LED advertising truck, Mobile stage truck, Mobile stage truck with LED screen, LED advertising trailer, Mobile stage trailer, Mobile stage trailer with LED screen and LED bus etc.
Q2: What is your production standard of Mobile Advertisement Truck products? Whether your Mobile Advertisement Truck can export to USA, Canada and Europen countries?
A: Our CBU Mobile Advertisement Truck is produced as per China GB local standard, but the LED screen and other mian products have CE certificate; We can't export CBU Mobile Advertisement Truck to those countries, but we can export super structure to those market, we exported 30 units LED truck super structure to USA market at the beginning of 2018.
Q3: Have you supplied to Mobile Advertisement Truck any renowned companies?
A: Our group company is a regular strategic partner of some big advertising company and mobile cellphone company. We have supplied many different type Mobile Advertisement Truck for them with different chassis brand. Eg: China biggest cellphone company VIVO and OPPO group is our customer and they already purchased more 300 units LED truck from us in the past 3 years.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
