Payment & Shipping Terms:
|Capacity:||14t,14ton,14tons,15ton,15t,15tons,16t,16ton,16tons||Tank Material:||Polished Stainless Steel|
|Insulation Layer:||Three Layers||Spraying Width:||4500mm|
|Asphalt Spraying Volume:||0.25~3.5L/m2||Working Speed:||1.5~7km/h|
|No. Of Spraying Nozzles:||36||Tank Volume:||5cbm,5000liters,6cbm,6000liters|
stainless steel tanker trailers,
4000 gallon water truck
16CBM bitumen distribution truck Howo 10-wheel bitumen transport truck 16ton
1) Spraying asphalt and bitument:heated asphalt,hot modified asphalt,cutback asphalt,emulsified asphalt
2) System of 10tons bitumen distributor truck
3) Imported brand of key parts such as hudraulic pump,hudraulic motor,asphalt pump,Proportional Valve,automatic control system
4) Italy burner for automatic fire and temperature control
Specifications of asphalt sprayer Truck

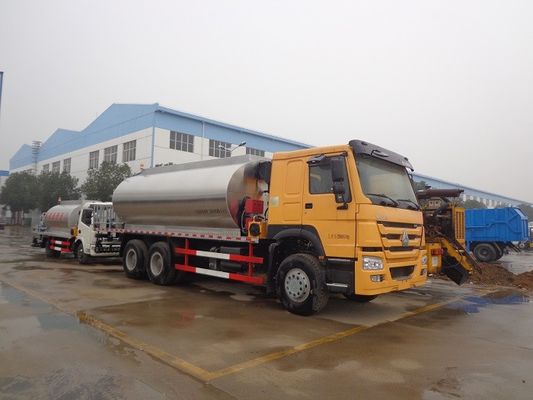

Reference Pictures of bitumen distribution truck
|Overall Dimension||10200x2500x3730 mm|
|Gross Vehicle Weight||25000 kg|
|Curb Weight||16000 kg|
|Loading Weight||8870 kg|
|Wheel Base||4600 +1350mm|
|Front/rear Tread||1500/2277 mm|
|Approach/Departure Angle||23/15 degree|
WD615.47,Weichai Diesel Engine,
watering cooling, four stroke, 6 cylinder in line
|Engine horsepower||371HP EURO II|
|Max Driving Speed||90 km/h|
|Cabin||HW76,2~3 Passenger allowed, Right Hand Driving, with Air Conditioner|
|Tire||12R22.5 (10 pieces+1piece spare tire)|
|Outside Material||1.2mm Stainless plate|
|Insulation layer||40mm rock wool insulation layer,≤20℃/8h|
|Driving Motor||05-130-BD31(NING BO TILORMS)|
|Proportional Valve||EFBG-03-160-HF/Taiwan brand|
|Shuttle Valve||Shanxi Yuci brand|
|Overflow Valve||Shanxi Yuci brand|
|Control System||CLW-32-01/Germany STW|
|Control Method||Computer control|
|Smart asphalt nozzle||36 pcs intelligent nozzles|
|Temperature sensor||2 pcs from Zhejiang China|
|Speed sensor||2 pcs from Germany|
|Heating method||Automatic heating by oil|
|Heat transfer oil pump||40-25-160(Hebei province,China)|
|Gasoline Engine||LUTIAN brand,6kw|
Work Scene of bitumen distribution truck
Key parts of bitumen distribution truck
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
Q1: What kinds of bitumen distribution truck I can order from your company?
A: We can supply various sizes of asphalt sprayer Truck such as 2ton,3ton,4ton,5ton,6ton to 25ton, if you need larger size, there are 2 axles and 3 axles semil trailer for optional.
Q2: What is your production standard of bitumen distribution truck ? Whether your 10Tons Bitumen Distributor Truck or trailers export to USA, Canada and Europen countries?
A: Our bitumen distribution truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 10Tons Bitumen Distributor Truck super structure to Europen countries before.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
