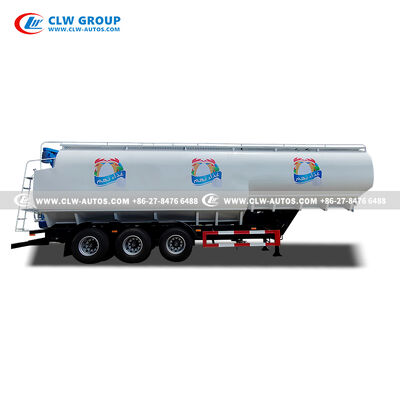

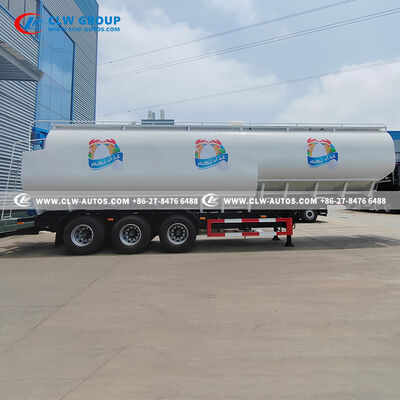

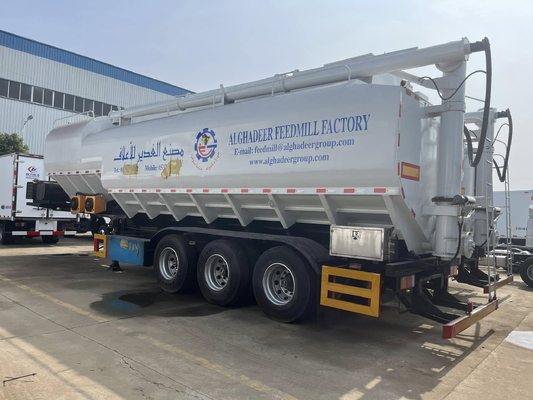

65m³ Huge Volume Bulk Feed Transport Trailer with Low Residual Discharge and Remote Control System

Large Image : 65m³ Huge Volume Bulk Feed Transport Trailer with Low Residual Discharge and Remote Control System

Product Details:

Place of Origin:	CHINA
Brand Name:	CLW GROUP
Certification:	ISO
Model Number:	semi-trailer

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	20600
Packaging Details:	Rain shelter fabric packaging
Delivery Time:	30DAYS
Supply Ability:	10pcs/month

Contact Now

Detailed Product Description

Overall Dimension:

12600 × 2550 × 4000 Mm

Highlight:

65m³ bulk feed transport trailer

low residual discharge feed trailer

remote control feed transport trailer

65m³ Heavy Duty Tri-axle Bulk Grain and Feed Transport Trailer with Low Residual Discharge

Hubei Weiyu - Maximize Your Logistics Efficiency

Our flagship 12.6m bulk feed semi-trailer delivers exceptional capacity with a 65m³ huge volume. It adopts an integrated frame and tank structure, combined with a short rear overhang design, achieving a perfect balance of large load capacity and maneuverability.

The trailer features a high-strength one-piece tank, arc bottom for smooth discharge, and 360° rotating auger. Equipped with advanced Siemens motor drive and remote control system, it enables one-person operation to significantly reduce labor costs. Weiyu remains committed to R&D and upgrades to provide better products.

Core Parameters

Overall Dimension: 12600 × 2550 × 4000 mm
Tank Volume: 65 m³
Wheelbase: 5780 + 1310 + 1310 mm
Leaf Spring: -/8/8/8, -4/4/4
Tire Spec: 12R22.5 12PR
Axle: FUWA 13T Axle
Turning Radius: 2160 mm
Application: Bulk Feed, Grain, Powder Material

Technical Specifications

Item	Specification
Overall Dimension (L×W×H)	11000×2550×3999 mm
Axle Configuration	3 Axles (Fuwa Axle)
Tank Volume	65 CBM
Tare Weight	9.2 Tons
Wheelbase	4950+1310+1310 mm
Leaf Spring	-/8/8/8, -/4/4/4
Tire Specification	12R22.5 12PR (Chaoyang Tire)
Kingpin Distance from Front	1500 mm
Kingpin Plate Ground Clearance	1300 mm
Front Turning Radius	1965 mm
Clearance Radius	2260 mm
Kingpin Center to Rear End	9500 mm

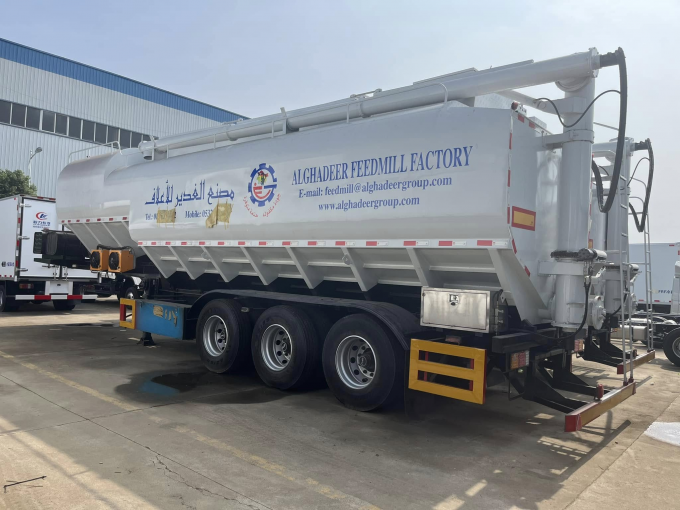

Unloading System	Full Remote Control Auger, Optional 360° Rotation
Control Mode	LCD Display (Remote + Manual)
Top Cover	Pneumatic Sliding Cover
Motor	Siemens Motor
Tank Material	One-Piece Bent Steel Plate, U-Type Design
