Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel |
|---|

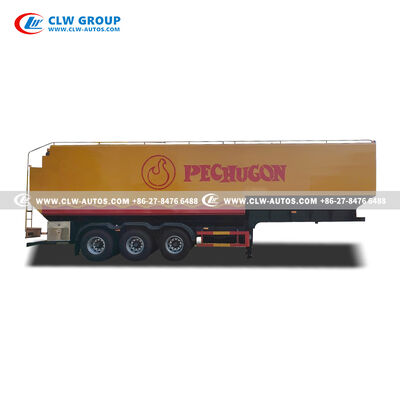

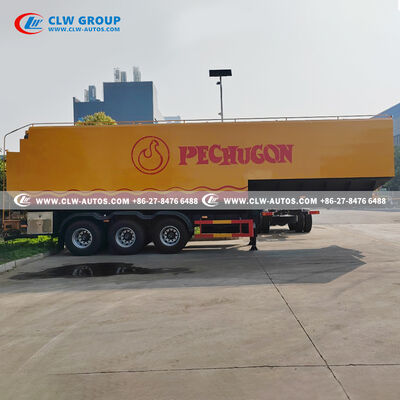

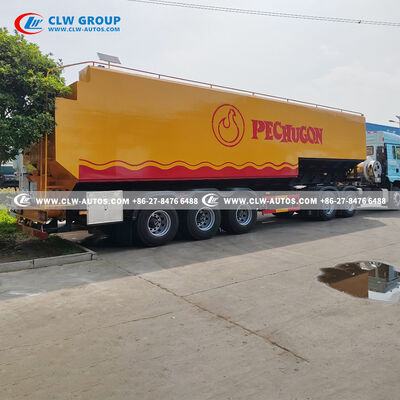

Our 11m bulk feed semi-trailer is a cost-effective solution for bulk animal feed transportation, featuring a new U-shaped tank design, 65m³ large volume, and 9.2 tons lightweight tare weight. With patented appearance, short rear overhang, and optimized unloading system, it delivers superior performance for feed logistics.
Kangmu Special Vehicles focuses on livestock industry equipment, with continuous R&D to provide the best bulk feed transport solutions.
| Item | Specification |
|---|---|
| Overall Dimension | 11000*2550*3999 mm |
| Axle | 3 Axles (Fuwa) |
| Volume | 65 m³ |
| Tare Weight | 9.2 T |
| Wheelbase | 4950+1310+1310 mm |
| Leaf Spring | -/8/8/8, -/4/4/4 |
| Tire | 12R22.5 12PR (Chaoyang) |
| Kingpin Front Distance | 1500 mm |
| Kingpin Plate Height | 1300 mm |
| Turning Radius | 1965 mm (Front), 2260 mm (Clearance) |
| Kingpin to Rear | 9500 mm |
| Unloading | Remote Control Auger, Optional 360° Rotation |
| Control | LCD (Remote + Manual) |
| Top Cover | Pneumatic Sliding Cover |
| Motor | Siemens |
| Tank | U-Type, One-Piece Bent Steel |
![]()
![]()
![]()
