12.6m 6 Compartments Carbon Steel Feed Trailer for Bulk Feed and Mixed Ration Delivery

Weiyu Special Vehicle – Your Trusted Partner in Animal Husbandry Logistics

This premium tri-axle bulk feed semi-trailer is available in 10m (50m³), 11m (59m³), and 12.6m (65m³) configurations. It showcases a sleek, patented appearance and is built with top-tier components including FUWA axles, Siemens motors, and Chaoyang tires.

The trailer boasts a lightweight yet robust structure, with a self-weight of only 10 tons for the 65m³ model. The LCD control panel supports both remote and manual modes, ensuring convenient and safe operation. The hidden tail auger design maximizes loading capacity, making it a high-end, practical, and cost-effective choice for your business.

• Overall Dimension: 12600 × 2550 × 4000 mm
• Volume: 65 m³
• Wheelbase: 5780 + 1310 + 1310 mm
• Suspension: Leaf Spring (-/8/8/8, -4/4/4)
• Control Mode: Remote + Manual (LCD Display)

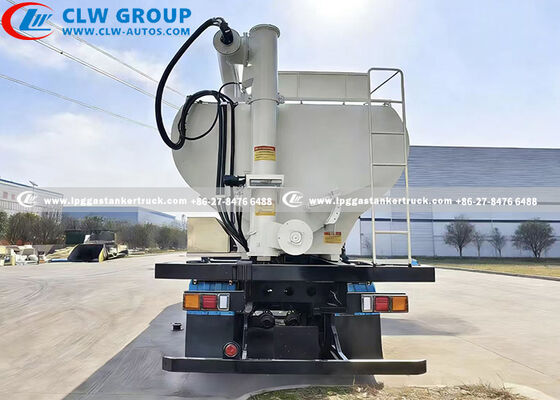

• Auger: 360° Rotatable, High-speed Discharge
• Warranty: Professional After-sales Service & Technical Support

• Item	Specification
  Overall Dimension	11000×2550×3999 mm
  Axle	3 Axles (Fuwa)
  Volume	65 m³
  Tare Weight	9.2 T
  Wheelbase	4950+1310+1310 mm
  Leaf Spring	-/8/8/8, -/4/4/4
  Tire	12R22.5 12PR (Chaoyang)
  Kingpin Front Distance	1500 mm
  Kingpin Plate Height	1300 mm
  Turning Radius	1965 mm (Front), 2260 mm (Clearance)
  Kingpin to Rear	9500 mm
  Unloading	Remote Control Auger, Optional 360° Rotation
  Control	LCD (Remote + Manual)
  Top Cover	Pneumatic Sliding Cover
  Motor	Siemens
  Tank	U-Type, One-Piece Bent Steel
