Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Dongfeng, ISUZU, Howo, Foton | Drive Model: | 4x2, 6 Wheels |
|---|---|---|---|
| Wheelbase: | 2800mm,3300mm,3360mm,3800mm,4500mm,4700mm,etc. | LED Board Type: | One-Side Screen, Two-Sides Screen, Three-Sides Screen |
| Screen Size: | 4㎡,5㎡,6㎡,7㎡,8㎡,9㎡,10㎡,12㎡ As Per Chassis Size | Pixel Pitch: | 4mm, 5mm, 6mm; P4 P5 P6 |
| Picture Tube Chip Color: | Full Color And Monochrome | Control Mode: | VGA Synchronous |
| Color: | White; Blue; Green; Yellow; Customized | Warranty: | 1 Year |
| High Light: | scrolling billboard truck,mobile led display truck |
||

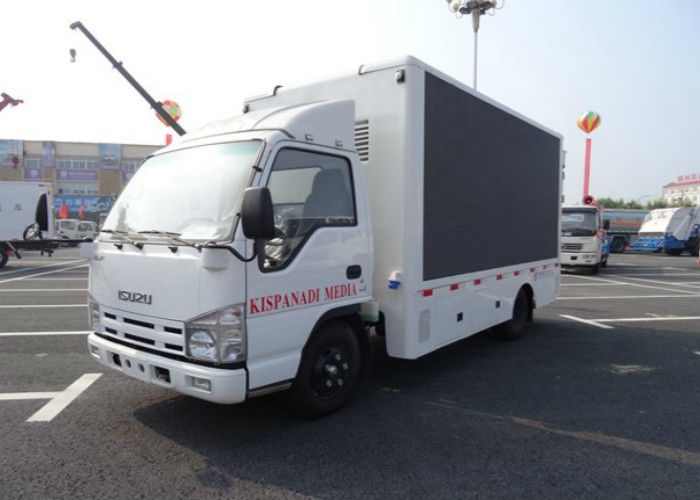

ISUZU outdoor digital Advertising Truck with P6 LED display screen
Product Description
1. Purpose: For mobile advertising, products promotion, branding, draft activities, concerts, and sport events, etc.
2. Main parts: LED screen, Generator set, Computer, Control system etc.
Product Details
| Chassis Specification | |||
| Item No. | Parameters | ||
| Drive model | 4x2, 6 Wheels | ||
| Overall Dimension | 5995×2040×2990(mm) | ||
| Chassis Brand | ISUZU 100P | ||
| Cabin | Single, Left Hand Driving, with ABS | ||
| Engine | Model | 4JB1CN, 4 Cylinders | |
| Power | 72KW/98HP | ||
| Emission standard | EUROIV | ||
| Displacement | 2771(ml) | ||
| Fuel type | Diesel | ||
| Gearbox | 5 Forward & 1 Reverse Gear | ||
| Brake System | Pneumatic | ||
| Steering Gear | Power Assistant | ||
| Wheel Base | 3360(mm) | ||
| Front/Rear Axle Loading | 2000/4800(Kg) | ||
| Approach/Departure Angle | 24/16(°) | ||
| Tire | 7.00-16 | ||
| Max Driving Speed | 100(km/h) | ||
| Upper Structure | |||
| LED Screen | Right LED Screen | 3840mm(L)×1728mm(H)=6.63m2 P6 full-color Screen | |
| Left LED Screen | 3840mm(L)×1728mm(H)=6.63m2 P6 full-color Screen | ||
| Rear LED Screen | 1280mm(L)×1440mm(H)=1.84m2 P6 full-color Screen | ||
| P6 full-color outdoor LED display, waterproof, shake-proof, high brightness, long life | |||
| Multi-media system | ①1 unit computer ②Sound system including 4 units waterproof loudspeaker 1 unit power amplifiers |
||
| Generator Set |
①OUMA brand, Silent diesel generator ②220V domestic power supply |
||
| Security system | Overheat protection | ||
| Remarks |
①Circulating ventilation and cooling systems ②Aluminum patterned floor ③Internal and external electrical distribution box |
||
| Optional Items | ①Mobile stage | ||
| ②Scrolling light box | |||
Product Show
FAQ
Q1: What kinds of Mobile Advertisement Truck products I can order from your company?
A: We can supply all kinds of LED advertising truck, Mobile stage truck, Mobile stage truck with LED screen, LED advertising trailer, Mobile stage trailer, Mobile stage trailer with LED screen and LED bus etc.
Q2: What is your production standard of Mobile Advertisement Truck products? Whether your Mobile Advertisement Truck can export to USA, Canada and Europen countries?
A: Our CBU Mobile Advertisement Truck is produced as per China GB local standard, but the LED screen and other mian products have CE certificate; We can't export CBU Mobile Advertisement Truck to those countries, but we can export super structure to those market, we exported 30 units LED truck super structure to USA market at the beginning of 2018.
Q3: Have you supplied to Mobile Advertisement Truck any renowned companies?
A: Our group company is a regular strategic partner of some big advertising company and mobile cellphone company. We have supplied many different type Mobile Advertisement Truck for them with different chassis brand. Eg: China biggest cellphone company VIVO and OPPO group is our customer and they already purchased more 300 units LED truck from us in the past 3 years.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
