|Tanker VolumeTanker Volume:||50CBM/50000Liters||Tank Material:||Q345R/SA516|
|Design Pressure:||1.71MPa 1.77MPa 17.1bar, 17.7bar||Loading Material:||Propane/Liquefied Petroleum Gas/LPG|
|Medium Density:||420Kg/m³, 450Kg/m³, 460Kg/m³, 480Kg/m³, 500Kg/m³, 520Kg/m³, 540Kg/m.||Mechanical Property Test:||Tensile, Strength, Impact Test|
|Thickness Of Shell And Head:||10mm, 12mm||After-sales Service:||Spare Parts Supply And Engineer Support|
|Color And Logo:||Color And Logo||Warranty:||1 Year|

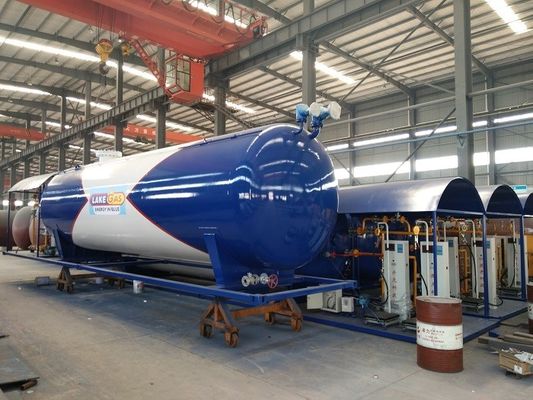

50cbm / 50,000L Liquid Propane Gas Bulk Storage and Dispenser Tank Q345R / SA516 LPG Skid Station
1. Storage medium: LPG, Liquid ammoina and Aether, etc.
2. LPG skid station capacity: 5m³ 10m³ 15m³ 20m³ 30m³ 40m³ 45m³ 50m³. This one is 10m³ LPG skid station.
3. Manufacturing standards: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008.
|Parameter of 50000liters propane Gas Storage Tank|
|Volume||50cbm||Thickness of Shell||14mm|
|Tank Material||Q345R||Thickness of End plate||16mm|
|Overall Size||9182*2728*3318 mm||Tank Net Weight||10640 kg|
|Tank Diameter||2700mm||Loading Capacity||23750 kg|
|Design Pressure||1.77Mpa||Gas Density||420-550kg/M3|
|Hydraulic Test Pressure||2.22Mpa||Corrosion Allowance||1mm|
|Design Temperature||-20ºC~60ºC||Heat Treatment||Bulk|
|Vapor Outlet||DN50||Gas Outlet||DN50|
|Life time||20 years|
|J41N-2.5-50||Stop Valve DN50||6||RF|
|J41N-2.5-25||Stop Valve DN25||2||RF|
|J41N-2.5-80||Stop Valve DN80||1||RF|
|J24W-320-DN6||J24W Needle Valve M20*1.5||1|
|HG21584-95||Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5||1||RF|
|A42F-25-80||Safety Valve DN80||1||RF|
|Y-100T||Pressure Gauge M20*1.5 1.5degree 0~4Mpa||1|
|WTQ-280||Thermometer M33*2 2.5 degree||1||-40ºC~60ºC|
We supply package solution for lpg station building as follows
1) Quick feedback to solve your questions;
2) Regular customer after-sale visiting;
3) Free technical staff training and guidance;
4) Reasonable price and good quality;
5) Quick delivery and shipment.
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
