Product Details:
Payment & Shipping Terms:
|
| After-sales Service Provided: | Spare Parts Supply And Engineer Support | Tanker Volume: | 50CBM/50000Liters/25MT/25tons |
|---|---|---|---|
| Tank Material: | Q345R/SA516 | Loading Material: | Propane/Liquefied Petroleum Gas/LPG |
| Design Pressure: | 1.77MPa | Medium Density: | 420Kg/m³ 450Kg/m³ 460Kg/m³ 480Kg/m³ 500Kg/m³ 520Kg/m³ 540Kg/m³ |
| Mechanical Property Test: | Tensile, Strength, Impact Test | Thickness Of Shell And Endplate: | 14-16mm |
| Condition: | New Printed | Color: | Customers' |
| Use: | LPG,LPG/PROPANE | Warranty: | 1 Year |
| High Light: | Diameter 2800mm Liquefied Petroleum Gas Tank,25T Liquefied Petroleum Gas Tank,50m3 LPG Storage Tank |
||
50,000Liters 50cbm 25 tons 50m3 50 cubic LPG tank liquefied petroleum gas propane LPG storage tank
Description
Liquefied petroleum gas storage tanks include compressed gas or liquefied gas storage tanks. Liquefied petroleum gas storage tanks can be divided into fixed volume storage tanks and active volume storage tanks according to the volume change of containers. Large fixed volume LPG storage tanks It is made into a spherical shape, and the small one is made into a cylindrical shape. The active volume storage tank is also called the low-pressure gas storage tank. It is commonly called the gas cabinet. Its geometric volume can be changed, tightly sealed, no gas leakage, and the balance of air pressure and the adjustment of gas supply. The pressure generally does not exceed 60MPa.
1. LPG Tank Storage Content: LPG Gas, Propane, Butane, Liquid Ammonia, etc
2. Tank Design Standard: GB150-2013, ASME Standard with U STAMP.
3. Test: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.
Specifications
| NO. | model | design pressure | Cylinder size (diameter * tube length * wall thickness mm) | Dimensions (outside diameter * total height / total length mm) | Material | Total net weight(kg) |
| 1 | 10m/10000L | 1.77MPa | 1600*4400*10 | 1620*2400*5300 | Q345R | 2800 |
| 2 | 15m/15000L | 1.77MPa | 1800*5250*12 | 1824*2600*6300 | Q345R | 4250 |
| 3 | 25m/25000L | 1.77MPa | 2200*5800*12 | 2224*3000*7100 | Q345R | 5850 |
| 4 | 30m/30000L | 1.77MPa | 2200*7100*12 | 2224*3000*8400 | Q345R | 6800 |
| 5 | 45m/45000L | 1.77MPa | 2600*7500*14 | 2628*3400*9000 | Q345R | 9770 |
| 6 | 50m/50000L | 1.77MPa | 2600*8500*14 | 2628*3400*10000 | Q345R | 10800 |
| P.S: We can produce according to your request, you need the model, to provide you with the best quality, best price, best service | ||||||
| Product | 50m3 LPG storage tank( propane) | |||||
| Nominal Diameter | 2800mm | |||||
| Designed Pressure | 1.77MPa | |||||
| Max pressure | 1.61Mpa | |||||
| Whole Dimension | 9912x2628x3218mm | |||||
| Endplate thickness | 16mm | |||||
| Tank thickness | 14mm | |||||
| Curb weight: | 11470kg | |||||
| Loading weight | 19950kg | |||||
| Filling factor | 0.95 | |||||
| Medium density | 420kg/m3 | |||||
| Designed Temperature | 50℃ | |||||
| Tank material | Q345R | |||||
| Corrosion | 1mm | |||||
| Heating testing | PWHT(bulk heat treatment) | |||||
| Water Testing | 2.22 Mpa | |||||
| Hermetic testing | 1.77 Mpa | |||||
| Safety spare part | Equipment with Safety Valve, Liquid gage, Pressure gage, Temperature gage, | |||||
| Manufacturer Standard | GB150 Steel pressure vessel, pressure vessel safety technology to monitor the procedures | |||||

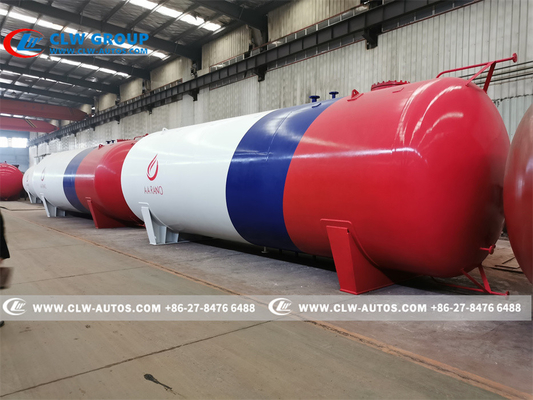

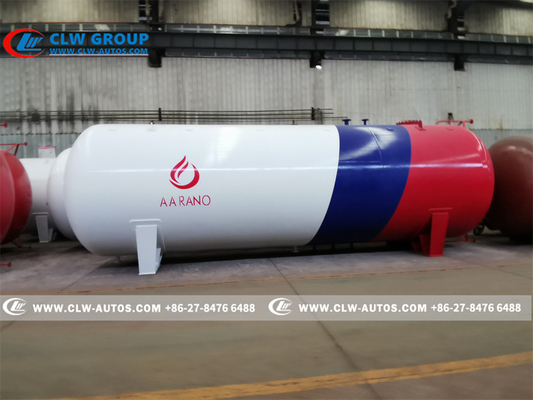

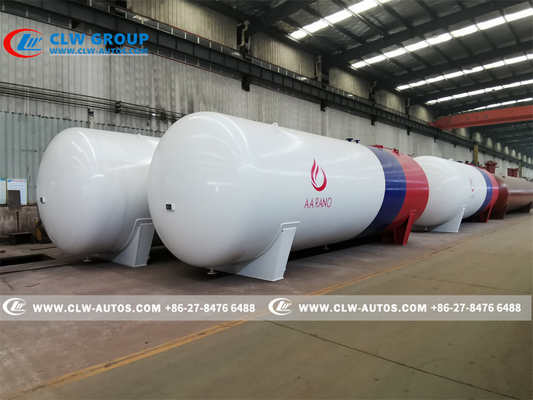

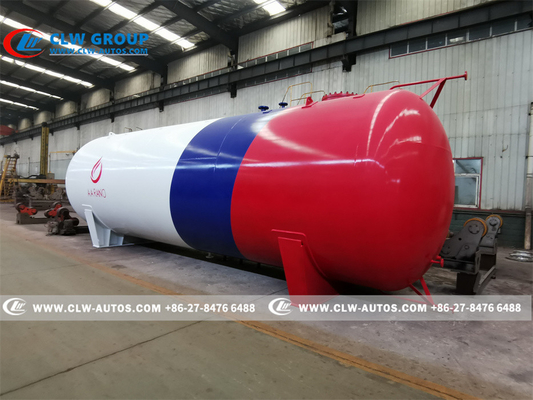

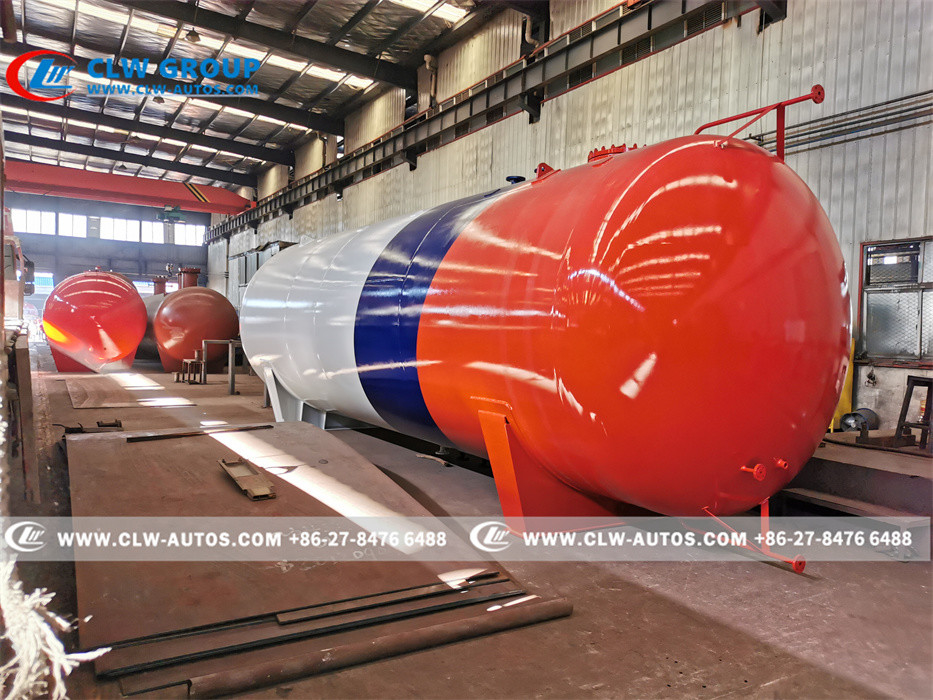

Reference photos
Tank diagram
Tank workshop
Other LPG tank/gas plant details
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
