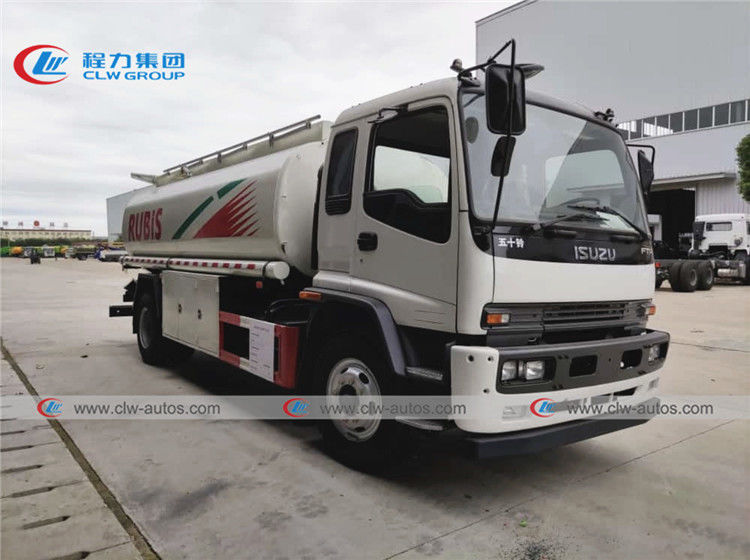

205hp ISUZU FTR 15K Liters 15T Fuel Delivery Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

205hp ISUZU FTR 15K Liters 15T Fuel Delivery Truck

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  205hp ISUZU FTR 15K Liters 15T Fuel Delivery Truck

Product Details:

Place of Origin: Suizhou,China
Brand Name: CLW
Certification: CCC,ISO
Model Number: CLW5162WYT

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: 18960 usd/unit~42560 usd/unit
Packaging Details: Naked with waxing before shipment
Delivery Time: 20~30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 units/per month
Detailed Product Description
Tank Volume: 10000l~15000L,15m3,15K Liters,15000liters,15cbm Fuel Type: Diesel Engine 205hp
Drive Wheel: 4X2,6X4,8X4,4X4,6X6,8X8 Tank Material: Carbon Steel,Q235 Carbon Steel/ Stainless Steel
Transmission Type: Manual, Automatic Wheelbase: 4500mm,4700mm
Product Name: Fuel Tanker Truck, Fuel Delivery Truck, Fuel Tank Truck,oil Tanker Truck Storage: Edible Oil,disel,gasoline,petroleum,oil,chemical
Conditon: Brand New Engine Capacity: 5.19L,5190ml
Color: Customer's Require, According To Customer's Requirements, Per Your Request, Opitional, Paint According To Your Requirements Emission Standard: Euro 5/6
Steering: Left Hand Drive
High Light:

15T Fuel Delivery Truck

,

205hp Fuel Delivery Truck

,

CLW5162WYT

Description



Fuel tanker truck(also called fuel truck,fuel tank truck,fuel delivery truck,fuel oil delivery truck,gallon fuel truck,petrol tanker truck,oil truck,oil tanker truck,oil bowser,diesel transport truck,gasoline transport truck,petrol tanker,petro dispenser truck) is used to transport fuel,oil,diesel,gasoline,kerosene and so on.



1. Purpose of ISUZU fuel tanker truck: It used for vehicles refueling and mobile transporting Fuel/Petrol/Diesel, etc.

2. Optional for Refueling System of ISUZU fuel tanker truck: Oil pump, Hose reel with filling gun/Oil dispenser machine

3. Tank shape of ISUZU fuel tanker truck: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
5. Refueling machine of ISUZU fuel tanker truck: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
6. Optional parts of ISUZU fuel tanker truck: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.





Feature--Stable and reliable ISUZU truck chassis;--High quality carbon steel material;--Independent compartment for different types of fuel types;--Serveral baffles inside tank to improve safety performance;--High pressure gas leakage test to ensure tank safety;

-- The tank shape adopts advanced welding technology and arc butt welding technology of the head as well as the integral one forming technology, fast installation, convenient maintenance, beautiful appearance.

--The anti-corrosion coating on the surface of the tank adopts sand blasting, derusting treatment, spraying, cleaning and other advanced technologies.

-- choose high quality domestic or imported safety accessories, carburetor and pump for users to choose, complete supporting.

--strictly adopt scientific advanced construction technology to ensure the lowest shrinkage rate and the highest dimensional stability in the low temperature state.



Specification
Condition Brand new/left hand drive /4X2
Chassis Brand ISUZU
Wheelbase(mm) 4500 mm
Dimensions(mm) 8400X2500X3100 mm
Front/Rear Axle loading(kg) 6300/13000 kg
Tire Quantity 6 pcs with one spare tire
Specifications 10.00R20
Transmission Manual type MLD, 6 Forwards and 1 reverse
Cab It can accommodate three people with cabin width 2mm and with Air Conditioner



Engine

Brand ISUZU
Model 4HK1-TC50
Fuel type Diesel
Displacement(ml) 5190 ml
Power(kw) 151kw
Horsepower(HP) 205HP
Cylinder number 4
Emission standard Euro V
Fuel Tank
Fuel tank Capacity(cbm/liters) 15 cbm/15,000 liters
Tank material Tank material:Q235 high tensile strength steel,optional for aluminum alloy or stainless steel
Thickness(mm) 5mm of tank and 6mm of end plate
Compartment No. 1,or as customized
Manhole cover ∮500mm 1 set with breather valve
Bottom Valve 1 set of API Pneumatic Bottom Valves
Discharging valve 1 set ∮100 discharging valves
Handrail Pneumatic control at tank two sides
Ladder At rear of tank
Painting Color and design as customer’s requirement



Key word: 15tons fuel truck,15t oil truck,isuzu fuel truck,Fuel dispenser truck, Oil Dispenser Truck, Oil Refueling Truck, Oil Delivery Truck,15k liters fuel truck,15000liters fuel truck,isuzu tanker truck



Reference pictures

205hp ISUZU FTR 15K Liters 15T Fuel Delivery Truck 0205hp ISUZU FTR 15K Liters 15T Fuel Delivery Truck 1205hp ISUZU FTR 15K Liters 15T Fuel Delivery Truck 2205hp ISUZU FTR 15K Liters 15T Fuel Delivery Truck 3205hp ISUZU FTR 15K Liters 15T Fuel Delivery Truck 4
