HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Home ProductsTanks Trucks And Trailers

Dongfeng 10cbm Intelligent Road Maintenance Construction Bitumen Distributor Asphalt Sprayer Paver Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Dongfeng 10cbm Intelligent Road Maintenance Construction Bitumen Distributor Asphalt Sprayer Paver Truck

Dongfeng 10cbm Intelligent Road Maintenance Construction Bitumen Distributor Asphalt Sprayer Paver Truck
Dongfeng 10cbm Intelligent Road Maintenance Construction Bitumen Distributor Asphalt Sprayer Paver Truck Dongfeng 10cbm Intelligent Road Maintenance Construction Bitumen Distributor Asphalt Sprayer Paver Truck Dongfeng 10cbm Intelligent Road Maintenance Construction Bitumen Distributor Asphalt Sprayer Paver Truck Dongfeng 10cbm Intelligent Road Maintenance Construction Bitumen Distributor Asphalt Sprayer Paver Truck

Large Image :  Dongfeng 10cbm Intelligent Road Maintenance Construction Bitumen Distributor Asphalt Sprayer Paver Truck

Product Details:

Place of Origin: Suizhou, China
Brand Name: CLW
Certification: CCC,ISO,BV,SGS
Model Number: CLW5096CEG

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Naked packing,Ro-ro,Bulk Ship
Delivery Time: 30-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Unit/Month
Detailed Product Description
Chassis Brand: Dongfeng, Foton, Sinotruk HOWO, Isuzu, Etc. Engine Power: 190HP
Tank Capacity: 10cbm 10m3 10000L 10cubic Meter 12cbm Paving Width: 4500-6000mm
Bitumen Capacity: 0.25-3.5L//M2 Asphalt Pump: Chinese Brand /Optional International Brand
Hydraulic Motor: Chinese Brand /Optional International Brand Spray Width: 4.5-6m
Nozzle Number: 36PCS Control Mode: Operation Box Control
Burner: Italy Brand Warranty: 1 Year
High Light:

Dongfeng Tanks Trucks And Trailers

,

10cbm Tanks Trucks And Trailers

,

4*2 Tanks Trucks And Trailers

Dongfeng 10cbm Intelligent Road Maintenance Construction Bitumen Distributor Asphalt Sprayer Paver Truck





Product Description
1. Can spread a variety of asphalt: high viscosity modified asphalt, hot asphalt, emulsified asphalt, etc.
2. The width of the sprinkler is freely adjustable and each nozzle can be individually controlled.
3. Excellent insulation performance, average temperature drop ≤20°C/8h.
4. Intelligent control system for precise control of the amount of spreading. Manual and automatic two sets of operating systems, complete the sprinkling in the cab, the construction can be completed by one person only.

Product Specification

Cabin Extended cabin, LHD , photo for reference
Vehicle Main Dimensions Body dimensions (L x W x H)mm 8998*2490*3200
Wheel base (mm) 5000
Wheel track (front/rear) (mm) 1430/2568
Weight in KGS Tare Weight 9750
Payload 6055
Front axles loading capacity 1x6000
Rear axles loading capacity 1x9000
Max. driving speed(km/h) 80
Engine Brand Cummins
Model B190 33
Type Euro-III emission, intercooler, turbocharge
Horse Power 190 HP
Max Torque 550 N.m
Tank Capacity 10 cbm
Spray Width 6000mm
Hydraulic Pump Model CBQ-F540
Spray Value 0.5-3.0 ( Kg )
Hydraulic Motor L2F63W2P2( Liyuan )
Insulation Thickness 50mm
Controller ZM - I
Nozzles 39
Burner G20 ( Riello )
Asphalt Pump QGB450
Generator(Converter) EC6500CX

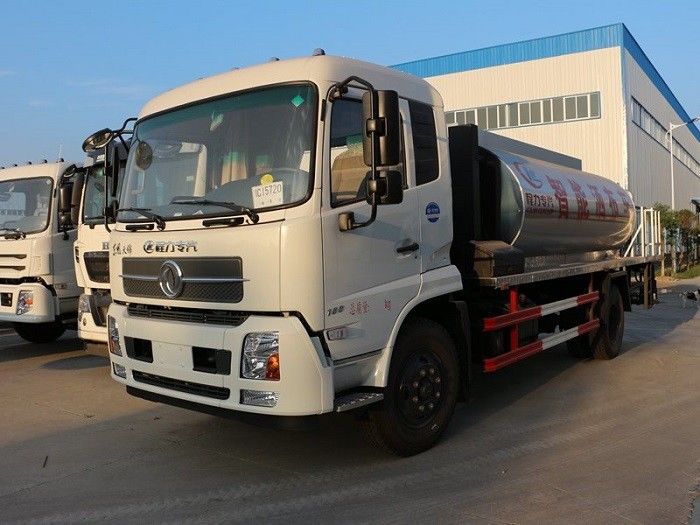

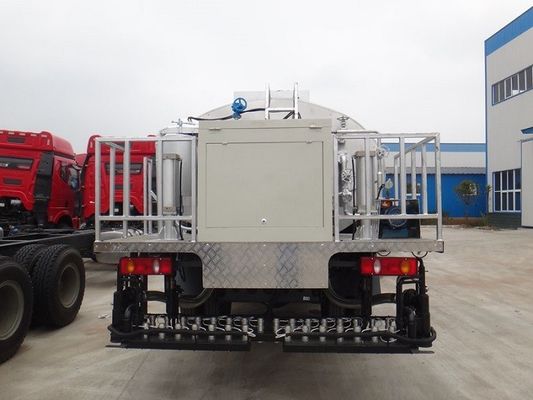

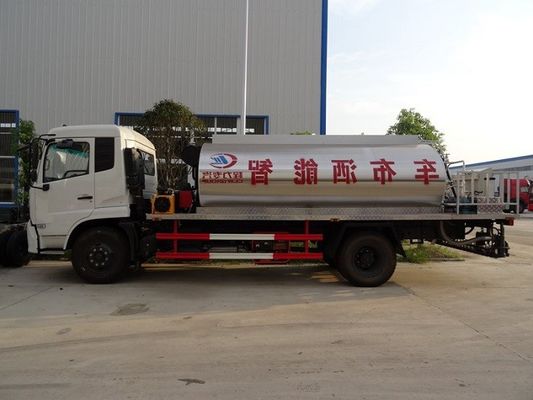

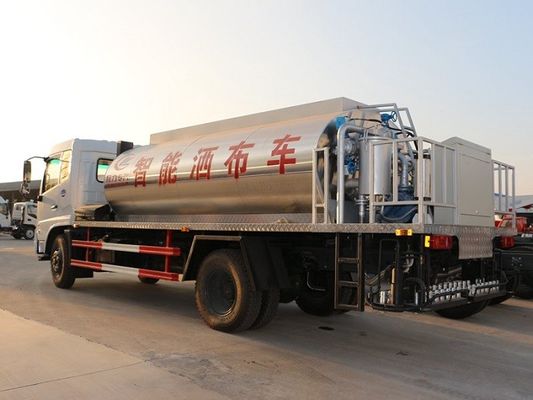

Reference Photos

Dongfeng 10cbm Intelligent Road Maintenance Construction Bitumen Distributor Asphalt Sprayer Paver Truck 0

Dongfeng 10cbm Intelligent Road Maintenance Construction Bitumen Distributor Asphalt Sprayer Paver Truck 1

Dongfeng 10cbm Intelligent Road Maintenance Construction Bitumen Distributor Asphalt Sprayer Paver Truck 2



Working Scene

Dongfeng 10cbm Intelligent Road Maintenance Construction Bitumen Distributor Asphalt Sprayer Paver Truck 3

Dongfeng 10cbm Intelligent Road Maintenance Construction Bitumen Distributor Asphalt Sprayer Paver Truck 4



Sales Service



① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.



FAQ



Q1: What kinds of bitumen distribution truck I can order from your company?

A: We can supply various sizes of asphalt sprayer Truck such as 2ton,3ton,4ton,5ton,6ton to 25ton, if you need larger size, there are 2 axles and 3 axles semil trailer for optional.



Q2: What is your production standard of bitumen distribution truck ? Whether your 10Tons Bitumen Distributor Truck or trailers export to USA, Canada and Europen countries?

A: Our bitumen distribution truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 10Tons Bitumen Distributor Truck super structure to Europen countries before.



Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
