Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Dongfeng, Isuzu, Foton, JAC, Etc. | Gearbox: | 5 Forward & 1 Reverse Gear |
|---|---|---|---|
| Tanker Volume: | 3m3, 4m3, 5m3, 6m3, 8m3, 10m3, Etc. | Tank Material: | Carbon Steel, Stainless Steel Or Aluminum Alloy |
| Tank Shape: | Square Round, Round | Transport Oil Type: | Diesel, Petrol, Gasoline, Oil, Etc. |
| Oil Pump: | Chinese Famous Brand | Oil Dispenser: | Chinese Famous Brand |
| Hose Reel With Filling Gun: | 15 Meter (Length Can Be Longer As Per Request) | Oil Vapor Recovery System: | Optional |
| Delivery Time: | 35 Days | Color: | Customized |
| Warranty: | 1 Year | ||
| High Light: | 5m3 small fuel tanker,5cbm small fuel tanker,CLW5096JYC |
||
Description
1. Tank material: we can provide carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum tanks, steel with plastic (or rubber) tanks and plastic tanks.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
Specification
| General Technical Parameters | ||||
| Overall Dimension | 5990x2050x2500 (mm) | Gross Vehicle Weight | 7360(kg) | |
| Curb Weight | 3765(kg) | Loading Weight | 3360(kg) | |
| Chassis Specification | ||||
| Chassis parameters | Chassis Brand | DONGFENG | ||
| Cabin | Single, Right Hand Driving | |||
| Engine | Power | 102HP | ||
| Emission standard | EURO 3 | |||
| Displacement | 3.7L | |||
| Fuel type | Diesel | |||
| Gearbox | 5 Forward & 1 Reverse Gear | |||
| Front and Rear Axle load | 3.5T rear axle | |||
| Wheel Base | 3308(mm) | |||
| Overhang( Front/Rear) | 1040/1647(mm) | |||
| Angle(Approach/departure) | 16/14(°) | |||
| Brake System | Pneumatic | |||
| Steering Gear | Power Assistant | |||
| Tire | 7.00R16, 6 Pieces | |||
| Maximum speed | 80(km/h) | |||
| Superstructure | ||||
| Fuel Tanker | Tank Volume | 5,000 Liters / 5m3 | ||
| Tank Material | Q235B Carbon Steel | |||
| Tank Shape | Square Round | |||
| Transport oil type | Diesel/Petrol | |||
| Refueling system | Oil Pump | 1pc, Chinese famous brand | ||

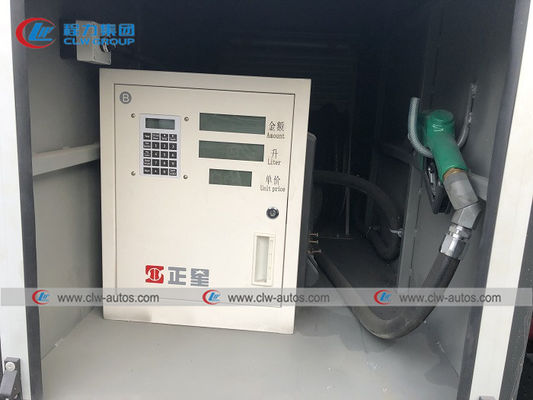

| Oil dispenser | 1pc, Chinese famous brand, Digital Screen Display with Keyboard, Oil Filling Display in Liter, Price & Amount | |||
| Hose Reel with Filling Gun | 6 Meter (Length can be longer as per request), Corrosion Resistant | |||
| Equipment | Lifting fence, ladder, Manhole 1 Unit, Emergency cut-off valve 1 Unit | |||
| Optional API standard system | Anti-overflow probe Oil Vapor Recovery System |
|||

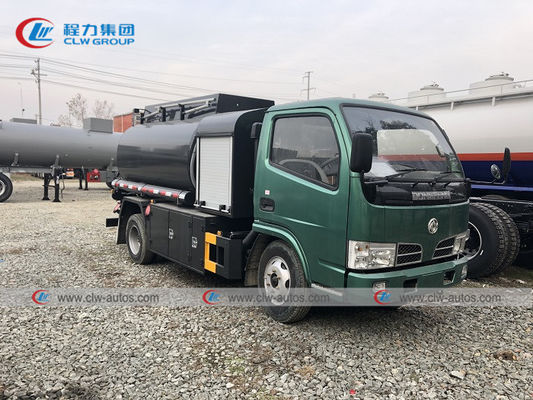

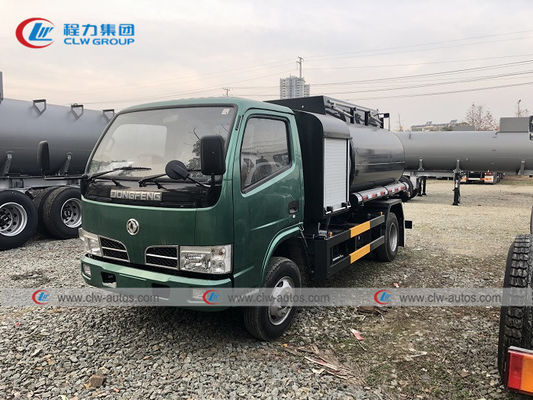

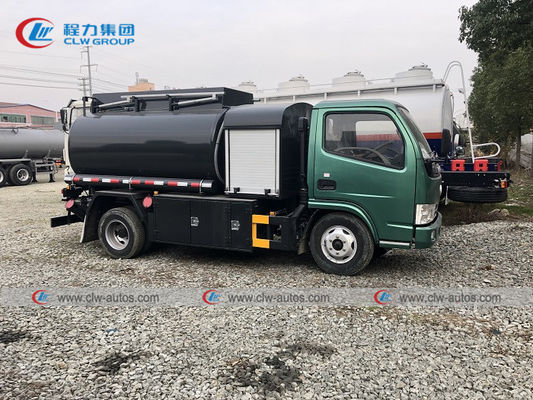

Reference Photos
Product Details
Factory Show
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of Helicopter refueling truck I can order from your company?
A: We can supply different size helicopter refueling truck as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.
Q2: What is your production standard of Helicopter Refueling Truck products?
A: China GB local standard.
Q3: Can we adopts International brand fuel pump for helicopter refueling truck?
A: Sure, we already cooperated with many international brand supplier.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
