Tri Axle 1300 Gallons 50000L Oil Delivery Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Tri Axle 1300 Gallons 50000L Oil Delivery Truck

Tri Axle 1300 Gallons 50000L Oil Delivery Truck
Tri Axle 1300 Gallons 50000L Oil Delivery Truck Tri Axle 1300 Gallons 50000L Oil Delivery Truck Tri Axle 1300 Gallons 50000L Oil Delivery Truck Tri Axle 1300 Gallons 50000L Oil Delivery Truck Tri Axle 1300 Gallons 50000L Oil Delivery Truck

Large Image :  Tri Axle 1300 Gallons 50000L Oil Delivery Truck

Product Details:

Place of Origin: Suizhou,China
Brand Name: CLW
Certification: ISO, CCC
Model Number: CLW9401WYT

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: 12250-25560USD/UNIT
Packaging Details: Naked package shipped by bulk ship
Delivery Time: Within 30days after received advance payments
Payment Terms: L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability: 300units/month
Detailed Product Description
Tank Volume: 50000L,50000liters,50m3,50cbm,12000 Gallons,13000gallons Tank Material: Q235 Carbon Steel/Aluminum Alloy
Product Name: Fuel Tanker Trailer,fuel Transport Truck,fuel Tanker Semi Trailer Compartment: 1,2,3 Optional
Axle: 13tons FUWA/BPW/L1 Tire: 12R22.5
Thickness: 5mm/6mm Painting: As Require
High Light:

50000L Oil Delivery Truck

,

1300 Gallons Oil Delivery Truck

,

CLW9401WYT

Function

--Fuel Transport Truck Trailer(also called fuel transport trailer,fuel truck trailer,oil tanker semi-trailer,oil truck trailer,fuel tanker trailer,crude oil tanker trailer,oil bowser semi trailer,ragid oil tanker trailer,petrol transport truck,diesel delivery tanker trailer) is a semi-trailer tanker connected with tractor truck. Compared with ordinary small tanker truck, semitrailer tanker can effectively improve the transport efficiency in same time.



In the same tonnage loading,oil tanker trailer reduce the transportation cost and save fuel consumption.



-- Fuel Transport Truck Trailer can be divided into various types as follows,

★carbon steel Fuel Transport Truck Trailer,aluminum alloy Fuel Transport Truck Trailer,stainless steel Fuel Transport Truck Trailer;

According to tank size,there are 20,000liters to 65,000liters Fuel Transport Truck Trailer for option;

★According to axles,there are double axle Fuel Transport Truck Trailer ,2-axle Fuel Transport Truck Trailer ,3-axle Fuel Transport Truck Trailer ,tri-axle Fuel Transport Truck Trailer





Feature

--High quality carbon steel from china top steel factory 4mm,5mm or 6mm tanker trailer thickness;

--Production strictly following china standard,ADR standard oil tanker trailer customized for saudi arabia is also optional.

--Oil tanker trailer shape is optional for oval and squareround oil tanker trailer ;

--Compartment no. is customized,which can load different types of oil or fuel;

--Several baffles inside tanker trailer,a through hole at the bottom to reduce the impact of oil in the tank and improve the strength of the tank;

--Reliable quality axle brand BPW,FUWA,L1

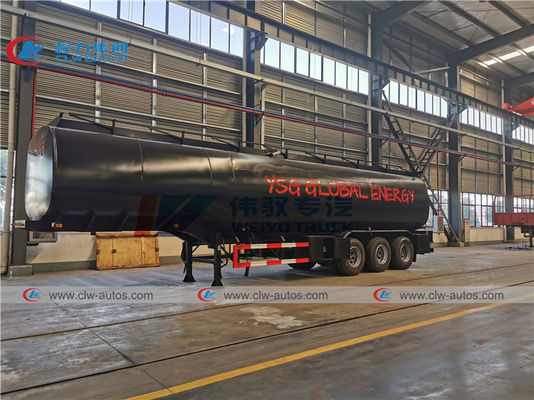

Pictures of 50000liters Fuel Transport Truck Trailer

Tri Axle 1300 Gallons 50000L Oil Delivery Truck 0

Tri Axle 1300 Gallons 50000L Oil Delivery Truck 1

Tri Axle 1300 Gallons 50000L Oil Delivery Truck 2

Tri Axle 1300 Gallons 50000L Oil Delivery Truck 3



Specification of 50000liters Fuel Transport Truck Trailer
Main Dimensions
Overall Length 12500mm
Overall Width 2500mm
Overall Height 3550mm
Tare Weight Around 11,000KGS
Loading Capacity 50m3
Photo only for reference, final product can be made according to exact requirements
Tank Body
Shape Mono block Cylinder
Total Volume(m3) 50
Tanker Body Material 5mm carbon steel
End plate 6mm carbon steel
Baffle 2 Nos,4 mm carbon steel
Lifting Ladder Including Top walkway and backside steel material
Manhole cover 3 manhole covers, ∮500mm 3 sets with 3 breather valves
Bottom Valve 3 sets of API Pneumatic Bottom Valve
Top Safety Rail 1 Set,Pneumatic control at two side
Discharging valve 3 set ∮100mm discharging valves,optional for 3”
No.of Compartment 3
Discharging Pipe 4”rubber hose, 2 pc, 6m long
Chassis
Main Beams Special design I beam, connected by bolts and nuts with tanker body
Axle 3 FUWA axles,13 Tons
Landing Gear JOST brand Two-speed, manual operating, heavy duty landing gear
King Pin JOST brand 2” bolt-in king pin
Suspension heavy duty mechanical suspension
Pneumatic Braking System WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
Wheel rim 9.00-22.5 wheel rim, 13 pieces including one spare
Tire 12R22.5 tubeless tire including one spare tire, 13 pieces
Painting Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
Accessories One standard tool box



Technical Drawing of 50000liters Fuel Transport Truck Trailer50k liters oil tanker trailer16



FAQ★How can I get a sample of 50000liters Fuel Transport Truck Trailer to check your quality?Answer:Due to the oil tanker trailer size,sample can not be sent to your country.But we have supplied a lot of oil tanker trailers to customers in many countries,you can go and check our tanks if you are nearby,Or welcome to visit our factory in china and check the quality by yourself.
How long can I expect to get the 50000liters Fuel Transport Truck Trailer?Answer:20~30 working days after receiving deposit at account.
★What's your payment term?



Answer:40% deposit by T/T and balance by T/T before shipment.We also accept 100% irrevocable LC at sight.
★When can I get the price of 50000liters Fuel Transport Truck Trailer?



Answer:we will contact you as soon as receiving your inquiry by email or message in 24 hours.

★Does your 50000liters Fuel Transport Truck Trailer have warranty service? How long is the warranty period?

Answer:Yes,one year free warranty for tanker body,axles.
Key word: 50000liters Fuel Transport Truck Trailer,50k liter oil tanker trailer,oil tanker trailer,50000l oil tanker trailer,50000liters oil tanker trailer,fuel tanker trailer,fuel tanker semi trailer,oil tank semi trailer,crude oil tanker trailer,heavy oil tanker trailer
