Product Details:
Payment & Shipping Terms:
|
| Design Code: | Total Standard | Type Of Discharge Valve: | API Or French Style |
|---|---|---|---|
| No. Of Compartment: | 2 Or 3 Or 4 Or 5 Or 6 Or 7 Or 8 | Size Of Discharge Valve: | 3inch Or 4 Inch |
| No. Of Axle: | 2 Or 3 Or 4 | Axle Brand: | BPW Or Fuwa Or Hj |
| Tyre Brand: | Triangle Or Double Coin | Size Of Tire: | 12r22.5 Or 315/80r22.5 Or 385/60r22.5 |
| Air Operated Shut-off Valves: | Yes | Rear Ladder: | Yes |
| Top Safety Rail: | Yes | Level Gauge: | Optional |
| Anti-Theft Lock: | Optional | Additional Fuel Tanker: | 500liter Or 1000liter Are Optional |
| Spare Tire Rack: | Yes | ||
| High Light: | 42CBM Oil Truck Trailer,CCC 3 Axle Oil Truck Trailer,42000 liters fuel truck trailer |
||

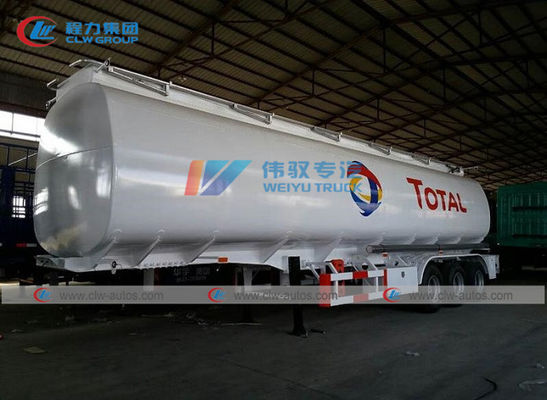

China Made 42, 000liters Total Standard 3-Axle Fuel Tanker Semi-Trailer 42cbm Oil Tank Truck Trailer
Product Description
1-Oil Tanker Trailers ,also called oil tanker semitrailer,fuel tank semitrailer,oil tanker trailer,
oil semitrailer,semi tanker trailer,stainless steel tanker trailer,carbon steel fuel trailer is used to deliver/transport/haulage oil,eatable oil,palm oil,maripa oil,gasoline,diesel,kerosene and so on.
2-Oil Tanker Trailerscan be designed as customer's request according to special standard request of TOTAL,vietnam,Tanzania and Zambia.
3--Oil Tanker Trailers is optional for air bag suspension,front axle lifting.
4-Nice shape and rational structure.
5-High class running system and tank material.
6--high-intensity kingpin and landing legs.
7--top gemany brand BPW axle or Chinese brand FUWA axles.
8--Durable and long term service life.
Product Specification
| Main Dimensions | ||||
| Overall Length | Approx.11600mm | |||
| Overall Width | 2500mm | |||
| Overall Height | Approx.3650mm | |||
| Tare Weight | Approximate 9500KGS | |||
| Loading Capacity | 40m3 | |||
| Tank Body | ||||
| Shape | Mono block Cylinder | |||
| Total Volume(m3) | 42CBM | |||
| Tanker Body Material | 5mm Carbon Steel Q235 | |||
| End plate | 6mm Carbon Steel Q235 | |||
| Lifting Ladder | Including Top walkway and backside steel material | |||
| Manhole cover | Aluminum alloy API manhole cover , ∮500mm , with breather valves and anti-Spillage valves | |||
| Bottom Valve | DN100 Pneumatic Bottom Valve,Pneumatic control for each compartment | |||
| Discharging valve | DN80mm French type discharging valves,Total standard | |||
| No.of Baffles | No. Of 4 | |||
| Discharging Pipe | 4"rubber hose, Designed for total of 16m length of hoses(4X4m) | |||
| Chassis | ||||
| Main Beams | Special design I beam, Steel Saddle support 8 No's each side. | |||
| Axle | 3 axles | |||
| FUWA 13 Ton | ||||
| Landing Gear | JOST brand C200,Two-speed, manual operating, heavy duty landing gear | |||
| King Pin | JOST Brand 2'' and 3.5" bolt-in king pin;interchangeable. | |||
| Suspension | Full set of heavy duty leaf spring type | |||
| Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. | |||
| Wheel rim | 9.0-22.5 steer rim,7 pieces including one spare | |||
| Tire | 315/80R22.5 tubeless tire with one spare tire, 7 pieces | |||
| TOTAL standard Lighting system |
|
|||
| Other TOTAL Design and parts | 1. Dust Board to Cover the Tires 2. Rear Ladder to access the top of the tanker. Well secured,with angle,not vertical,linked to mechanism for automatic handrail lifting. 3. Walkway with fold-able handrail. (air operated) 4.Tool Box 120cm (Without Tools). 5.Double Spare Tire Carrier (Winch Type). 6.Anti-skid design on the whole available surface 7. 2 No's of fire extinguisher holder. 8. Drip collecting system(slope-by directing liquid to a on/off tap) 9. Earthing plots(qty 4, front left/right+back left/right,in brass) 10. A yellow,refective safety line 5cm wide shall be placed along both side of tank shell |
|||
Reference Photos
Main Structure Diagram
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of fuel tank trailer I can order from your company?
A: We can supply various sizes of fuel tank trailer from30-50tons,etc.
Q2: What's the material of your fuel tanker?
A: We usually provide carbon steel, stainless steel, and aluminium materials for customer choice.
Q3: What is your production standard of fuel tank trailer? Whether your fuel tank trailer export to USA, Canada and Europen countries?
A: Our fuel tank trailer is produced as per China GB local standard; We can export super structure to those market, we ever exported fuel tank trailer super structure to Europen countries before.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
