Payment & Shipping Terms:
|Design Standard:||ADR||Axle:||11.5ton K-Hitch Brand|
|Volume Of Bin:||25cbm||No. Of Hydraulics:||4(2 For Door And 2 For Bin )|
|Paintings:||Two Pack||Lightings:||Adr Code Orion Brand|
|Brake:||ABS Brakes||Suspension:||K-Hitch Brand Leaf Spring Or Air Bag|
|Steel:||Chinese Nm450 Or Hardox||Tire:||11r22.5 With One Spare Tire|
|Rim:||8.25-22.5 10 Stud, PCD 285.75||Spare Tire Rack:||Yes For Two Spare Tire Design|
|Tool Box:||600*600mm||Others:||Road Train Design|

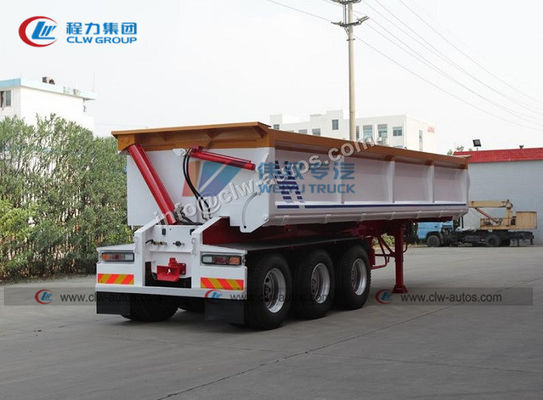

ADR Side Dump Semi Trailer,
Aussie Friendly Side Dump Semi Trailer,
3 Axle Side Tippers
We are specilized in designing and building many kinds of OZ ADR standard trailers, such as:
1. earth-moving side tipper;
2. end tipper;
3. grain end tipper;
4. water tanker;
5. quad-axle lowloader deck-widener;
6. tri-axle lowloader deck-widener;
7. 45ft dropdeck extendable;
8. 45ft flatdeck extendable;
9. 45ft sliding lowloader;
10. dolly trailer;
11. pig trailer/Tagalong Truck, etc.
We sincerely welcome you to visit our factory and provide your precious suggestion for us!
|Photo for reference, final produce can be made according to exact requirements;
and our drawing confirmed from the buyer
|Bin and door||5mm thickness by hardox 450 or Chinese NM450|
|Chassis||Heavy duty and extra durability designed Fabricated I-Beam - 345 MPA
welded by automatic Submerged-Arc processes.
Top Flange 16mm,width 140mm; Double Middle Flange 6mm and 8mm ;
Bottom Flange 16mm,width 140mm.
|FUWA K-Hitch brand 11.5ton|
|Cylinder||two set of hydraulic tip cylinder Ø 150mm , door cylinder Ø 80mm
Single Stage, Double Acting, Externally Mounted to each end
|Hydraulic system||One (1) Air-Operated Directional Control Valve with manual over ride.
Two (2) 1" Hydraulic hoses fitted to front of subframe
with 1" BSP compatible couplings
|Suspension||mechanical with 10-piece leaf spring. Air bag is optional|
|King Pin||JOST brand 2'' or 3.5'' Two bosses with 90mm Kingpin
to suit Tandem or Tri Axle Dolly
|Landing Gear||Jost brand Two Speed, Manually operated, with Rubber Flap Guard to front|
|Wheel Rim||9.0R22.5 10 stud steel rim 13 pieces PCD 335; alloy rim is optional|
|Tyre||Chengshan brand 12R22.5 tubeless tire, 13 pieces|
|Spare Tire Rack||Dual Swinging type|
|Braking System||3 sets of T30/30 Spring brake chamber;
40L air tanks with Wabco air controlled system.
|Mud guard||Spring Tension Rubber over Tri Group|
|Finish||Sandblasted to grade 2.5; 2k Primer and Painted in 2-Pack to required color|
|Light & wire||LED Combination Rear Lights, and LED Side lights.
with ADR standard wire and 7-pin socket
|Others||Road Train Spec.|
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
Q1: What kinds of side trailer I can order from your company?
A: We can supply various sizes of side trailer from30-120tons,etc.
Q2: What's the material of your side trailer?
A: We usually provide carbon steel, stainless steel, and aluminium alloy for customer's requirements.
Q3: What is your production standard of side trailer? Whether your side trailer been exported to USA, Canada and Europen countries?
A: Our side trailer is produced as per China GB local standard; We can export super structure to those market, we ever exported side trailer super structure to Europen countries before.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
