Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Howo, Dongfeng, Isuzu, Foton, JAC, Etc. | Gearbox: | 8 Forward & 2 Reverse Gear |
|---|---|---|---|
| Tanker Volume: | 15m3, 16m3, 17m3, 18m3, 19m3, 20m3, Etc. | Tank Material: | Carbon Steel, Stainless Steel Or Aluminum Alloy |
| Tank Shape: | Square Round, Round | Transport Oil Type: | Diesel, Petrol, Gasoline, Oil, Etc. |
| Oil Pump: | Chinese Famous Brand | Oil Dispenser: | Chinese Famous Brand |
| Hose Reel With Filling Gun: | 15 Meter (Length Can Be Longer As Per Request) | Oil Vapor Recovery System: | Optional |
| Delivery Time: | 35 Days | Color: | Customized |
| Warranty: | 1 Year | ||
| High Light: | ISUZU Aircraft Refueling Trucks,12000L Aircraft Refueling Trucks,12CBM mobile refueling truck |
||

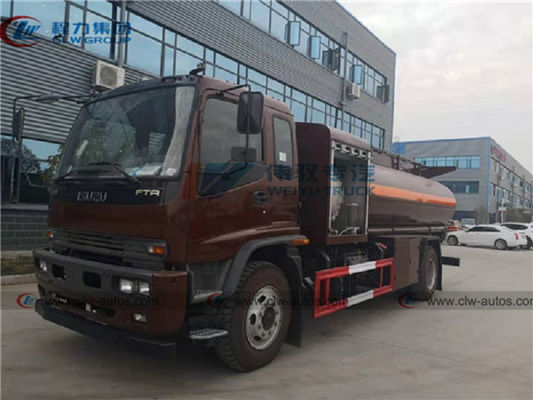

Product Description
1. Purpose: It used for helicopter refueling and mobile transporting aviation kerosene.
2. Main parts: Fuel pump, flow meter and filling gun etc.
3. Advantage: Our helicopter refueling truck have most competitive price.
Product Specification
| Truck Specification | ||
| Cab | ISUZU cab with one sleeper with A/C | |
| Driving Type | 4*2 Left hand driving | |
| Max Speed (km/h) | 100 | |
| Overall dimension(mm) | 8840*2450*3000 (mm) | |
| GVW (kg) | 19000 | |
| Mass in working order (kg) | 8900 | |
| Wheelbase(mm) | 5550 | |
| Tire | 10.00R20 | |
| Clutch | Single-plate dry diaphragm spring clutch | |
| Steering | Hydraulic steering with power assistance | |
| Gear box | 8-speed | |
| Bridge | Front axle | 6300kg |
| Rear axle | 13000kg | |
| Engine | Model | 4HK1-TC50 / EURO V |
| Fuel Type | Diesel fuel | |
| Type | in line-4,ind-cooler turbocharged | |
| Max output power/rotate speed (hp /rpm ) | 205hp | |
| Braking system | Service Brake | Compressed air brake |
| Eletric system | 24v | |
| Upper-Body specification | ||
| Rated Capacity (L) | 12000 | |
| Tank | Material | Stainless steel |
Reference Photos
Aluminum Alloy Tank Production Process
Other Kinds of Fuel Dispenser Trucks
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of Helicopter refueling truck I can order from your company?
A: We can supply different size helicopter refueling truck as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.
Q2: What is your production standard of Helicopter Refueling Truck products?
A: China GB local standard.
Q3: Can we adopts International brand fuel pump for helicopter refueling truck?
A: Sure, we already cooperated with many international brand supplier.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
