Dongfeng 4*2 30m3 Cattle Feed Truck With 3 Screw Augers

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

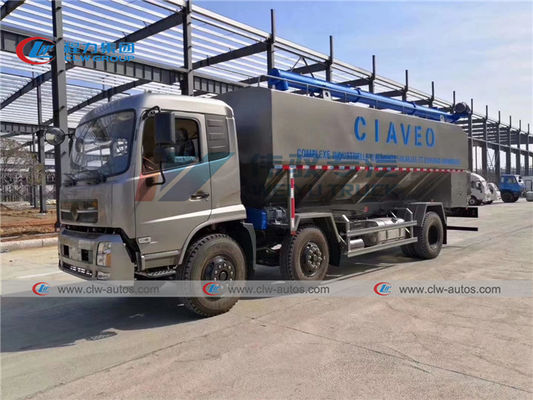

Dongfeng 4*2 30m3 Cattle Feed Truck With 3 Screw Augers

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Dongfeng 4*2 30m3 Cattle Feed Truck With 3 Screw Augers

Product Details:

Place of Origin: Suizhou,China
Brand Name: CLW
Certification: CCC ISO ASME
Model Number: CLW9448

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: Negotiable
Packaging Details: Naked package shipped by bulk ship
Delivery Time: 30 days after received advance payments
Payment Terms: L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability: 300units/month
Detailed Product Description
Truck Brand: ISUZU,HOWO,DONGFENG,FAW,SHACMAN Bulk Feed Truck Material: Carbon Steel/aluminum Alloy Bulk Feed Trailer
Loading Medium: Bulk Feed,grain,powder And So On Volume: 30m3
Thickness: 4mm Compartment: 1,2,3 Optional
Color: Customized Logo: As Per Your Request
Purpose: Chicken/duck/cow Feed
High Light:

30m3 Cattle Feed Truck

,

Dongfeng Cattle Feed Truck

,

3 Screw Augers Bulk Feed Truck

Dongfeng 30m3 Bulk Feed Truck Chicken/Duck/Cow Animal Feed Truck



Dedicated configuration



The tank body is made of 4mm high-quality carbon steel plate, and the whole vehicle has 3 screw augers, driven by 3 5.5KW motors. The top screw auger is lifted by hydraulic control and can rotate 180° left and right.

The tank body is divided into three bins, which can independently control the discharge sequence and speed of each sub bin.



Description:

Model of Cab Flat Top,Row and a half
Driving Type 4*2
Wheel Base 5000mm
Model of GearBox/Manufacturer DF6S900/Dongfeng Automobile Gearbox Co., Ltd
Model of Engine/Manufacturer ISB180 50/Dongfeng Cummins Engine Limited
Engine Capacity 5900ML
Rated Power 132(kW)/2500(r/min)/180hp
Max Maximum Torque 700(N.m)/1500(r/min)
Tyre Size 10.00R20 18PR



External Dimensions 10890*2480*3900mm
Bulk Capacity 32m³
Number of Compartments 3
Engine Power/voltage 22kW/380V
Max Transport Height 7.9M
Max Transport Length 4.6M
Rated Discharge Capacity 450~600(kg/min)
Residual Rate ≤0.22
Turning Type Electric
Others ABB Motor,It could connect external electric power



Bulk Feed truck reference photos



Dongfeng 4*2 30m3 Cattle Feed Truck With 3 Screw Augers 0Dongfeng 4*2 30m3 Cattle Feed Truck With 3 Screw Augers 1Dongfeng 4*2 30m3 Cattle Feed Truck With 3 Screw Augers 2Dongfeng 4*2 30m3 Cattle Feed Truck With 3 Screw Augers 3Dongfeng 4*2 30m3 Cattle Feed Truck With 3 Screw Augers 4



Working show



Dongfeng 4*2 30m3 Cattle Feed Truck With 3 Screw Augers 5Dongfeng 4*2 30m3 Cattle Feed Truck With 3 Screw Augers 6



Bulk Feed Truck Diagram



Dongfeng 4*2 30m3 Cattle Feed Truck With 3 Screw Augers 7
