Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum 5083 5454 Carbon Steel | Material Thickness: | 5mm To 7mm |
|---|---|---|---|
| Purpose: | Palm Oil, Soybean Oil,crude Oil,diesl,gasoline | Tank Shape: | Round, Square Round, Oval, |
| Main Beam: | I Beam High Tension Steel | Axle: | Fuwa, BPW, York Axle |
| Tire: | 12R22.5, 315/80R22.5 | Tire Brand: | Linglong, Double Coin, Triangle, Aeolus, Etc |
| Design Market: | African Or Asian Market | ||
| High Light: | 45000 Liters Semi Truck Trailer,Fuel Delivery Semi Truck Trailer |
||
45000liters Diesel Gasoline Truck Trailer 3-axle 45tons Fuel tanker Semi Trailer
Product Description
Specifications of Fuel tanker Semi Trailer
| Main Dimensions | |||||||
| Overall Length | 11780mm | ||||||
| Overall Width | 2500mm | ||||||
| Overall Height | 3880mm | ||||||
| Tare Weight | 10000KGS | ||||||
| Loading Capacity | 45m3 | ||||||
| Photo only for reference, final product can be made according to exact requirements | |||||||
| Tank Body | |||||||
| Shape | Mono block Cylinder | ||||||
| Total Volume(m3) | 45 CBM | ||||||
| Tanker Body Material | 5mm carbon steel | ||||||
| End plate | 6mm carbon steel | ||||||
| Lifting Ladder | Including Top walkway and backside steel material | ||||||
| Manhole cover | 3 manhole cover, ∮500mm 3 sets with 3 breather valves | ||||||
| Bottom Valve | 3 sets of API Pneumatic Bottom Valve | ||||||
| Top Safety Rail | 1 Set | ||||||
| Discharging valve | 3 set ∮100mm discharging valves | ||||||
| No.of Compartment | 3(15000L+15000L+15000L) | ||||||
| Discharging Pipe | 4”rubber hose, 2 pc, 6m long | ||||||
| Chassis | |||||||
| Main Beams | Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation; | ||||||
| Axle | 3 axles | ||||||
| FUWA 13 Tons | |||||||
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | ||||||
| King Pin | JOST brand 2” bolt-in king pin | ||||||
| Suspension | German design heavy duty mechanical suspension | ||||||
| Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. | ||||||
| Wheel rim | 9.00-22.5 wheel rim, 13 pieces including one spare | ||||||
| Tire | 12R22.5 tubeless tire with one spare tire, 13 pieces | ||||||
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint | ||||||
| Accessories | One standard tool box | ||||||

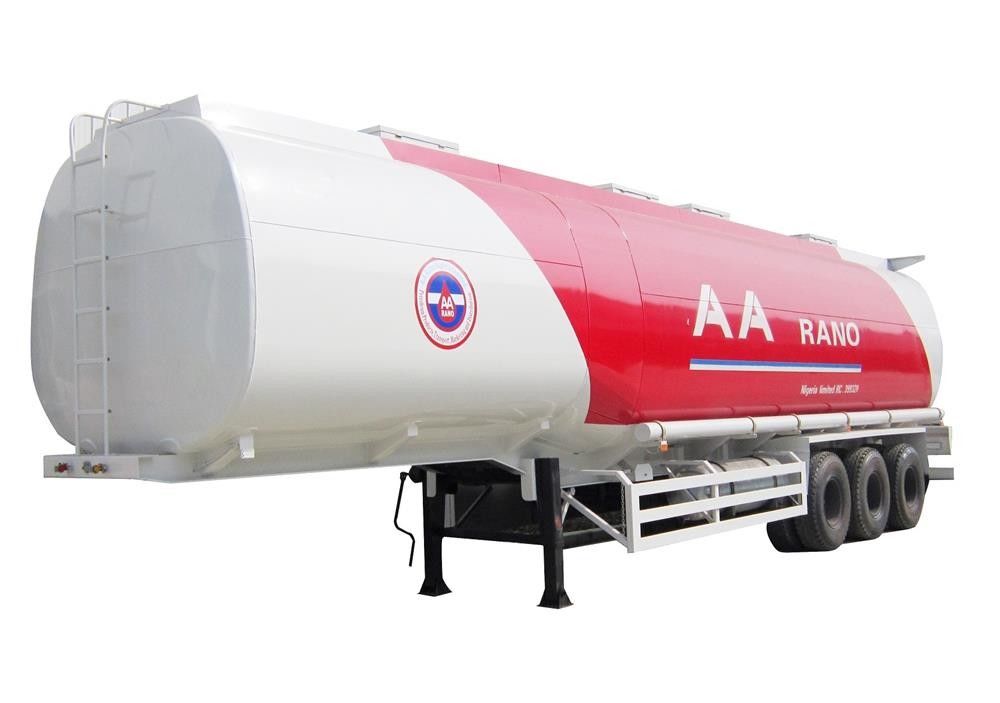

Pictures of Fuel tanker Semi Trailer
Reference picture of discharging valve
'
API manhole
API bottom loading system photos for ref
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of fuel tanker semi trailer I can order from your company?
A: There are various sizes of fuel tanker semi trailer with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied fuel tanker semi trailer to any overseas companies?
A: Yes,with need of cleaning cities,we offered fuel delivery truck to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
