RHD Howo 8000L 10000L Diesel Tanker Truck With Censtar Dispenser

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

RHD Howo 8000L 10000L Diesel Tanker Truck With Censtar Dispenser

RHD Howo 8000L 10000L Diesel Tanker Truck With Censtar Dispenser
RHD Howo 8000L 10000L Diesel Tanker Truck With Censtar Dispenser RHD Howo 8000L 10000L Diesel Tanker Truck With Censtar Dispenser RHD Howo 8000L 10000L Diesel Tanker Truck With Censtar Dispenser RHD Howo 8000L 10000L Diesel Tanker Truck With Censtar Dispenser RHD Howo 8000L 10000L Diesel Tanker Truck With Censtar Dispenser

Large Image :  RHD Howo 8000L 10000L Diesel Tanker Truck With Censtar Dispenser

Product Details:

Place of Origin: Suizhou,China
Brand Name: CLW
Certification: ISO, CCC
Model Number: clw5161WYJYC

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: 9250-25520 USD/UNIT
Packaging Details: Naked package shipped by bulk ship
Delivery Time: 20~30 days after received advance payments
Payment Terms: L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability: 300units/month
Detailed Product Description
Truck Brand: Dongfeng/Howo/JAC/FAW Diesel Bowser Truck Drive Model: 4x2, 6x4, 8x4, 6*4, 4*2,8*4 Diesel Bowser Truck
Tank Volume: 8000liters,8000L,10000L,10000liters Diesel Bowser Truck Fuel Type: Diesel/gasoline/oil/kesosene Diesel Bowser Truck
Condition: New Diesel Bowser Truck Transmission Type: 6 Speed Forward And 1-reverse Diesel Bowser Truck
Horsepower: 116hp 140hp 160hp Diesel Bowser Truck Tank Material: Carbon Steel, Q235 Carbon Steel/ Stainless Steel, Carbon Steel/stainess Steel/aluminum Alloy, Aluminum Alloy Diesel Bowser Truck
Product Name: Refueling Truck,Oil Bowser Truck, Fuel Delivery Truck,Fuel Tank Truck,howo Diesel Bowser Truck Emission Standard: Euro2/3/4/5 Diesel Bowser Truck
Wheelbase: 3800mm Diesel Bowser Truck Color: As Per Your Request
Dispenser: Censtar Diesel Bowser Truck Steering: Right Hand Drive Diesel Bowser Truck
High Light:

10000L Diesel Tanker Truck

,

8000L Diesel Tanker Truck

,

RHD Fuel Delivery Truck

Right Hand Drive Howo 8000L 10000L Mobile Diesel Bowser Tanker Truck With Censtar Dispensers



Mobile diesel bowser Truck (also called fuel tank truck, fuel tanker truck, fuel oil delivery trucks, oil transport tanker truck, mobile refueling truck, oil fueling vehicles, oil bowser trucks, petrol/diesel carrying vehicles, fuel bowser truck, oil tank trailer, fuel tanker semi trailers, mobile oil tank trucks) is used to transport fuel,oil,diesel,gasoline,kerosene and so on.





1. Purpose of diesel bowser Truck : It used for vehicles refueling and mobile transporting Fuel/Petrol/Diesel, etc.

2. Optional for Refueling System of diesel bowser Truck : Oil pump, Hose reel with filling gun/Oil dispenser machine,flow meter

3. Tank shape of diesel bowser Truck : shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
5. Refueling machine of
diesel bowser Truck : the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
6. Optional parts of
diesel bowser Truck: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.





Feature--Durable howo truck chassis;--High quality carbon steel/aluminum alloy tanker material;--Independent compartment for different types of fuel types;--Serveral baffles inside tank to improve safety performance;

-- The tank shape adopts advanced welding technology and arc butt welding technology of the head as well as the integral one forming technology, fast installation, convenient maintenance, beautiful appearance.

--The anti-corrosion coating on the surface of the tank adopts sand blasting, derusting treatment, spraying, cleaning and other advanced technologies.

-- choose high quality domestic or imported safety accessories, carburetor and pump for users to choose, complete supporting.

--strictly adopt scientific advanced construction technology to ensure the lowest shrinkage rate and the highest dimensional stability in the low temperature state.

Reference pictures

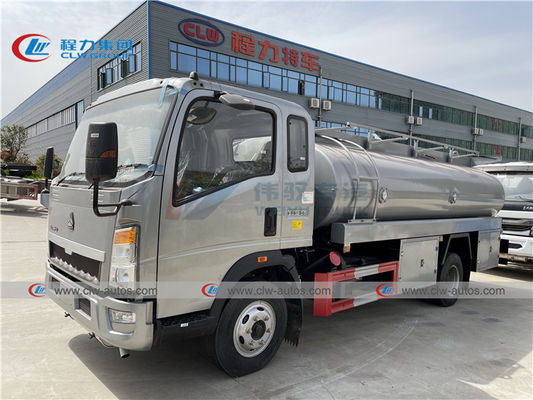

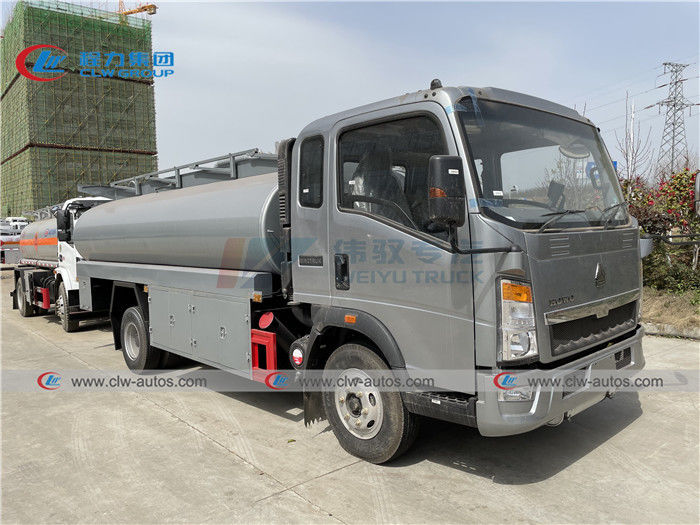

 Front side of right hand drive howo diesel bowser truck

RHD Howo 8000L 10000L Diesel Tanker Truck With Censtar Dispenser 0

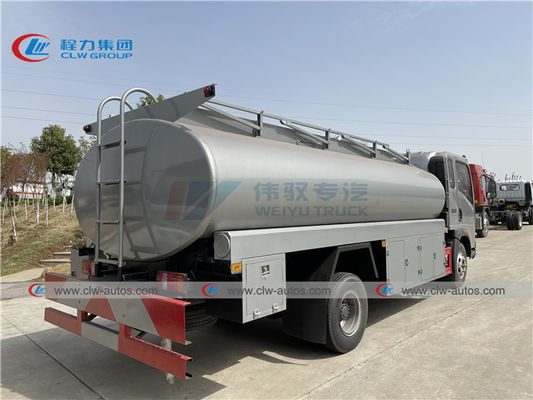

rear view of right hand drive howo diesel bowser truck

RHD Howo 8000L 10000L Diesel Tanker Truck With Censtar Dispenser 1

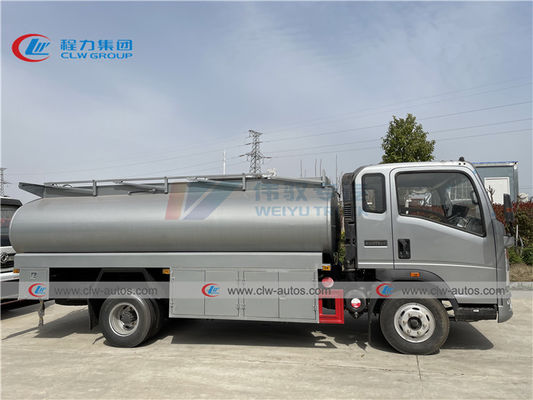

side side of right hand drive howo diesel bowser truck

RHD Howo 8000L 10000L Diesel Tanker Truck With Censtar Dispenser 2

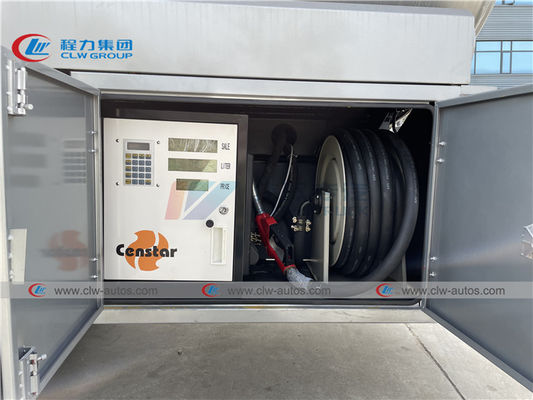

inner side censtar dispenser of right hand drive howo diesel bowser truck

RHD Howo 8000L 10000L Diesel Tanker Truck With Censtar Dispenser 3

Refilling hose of right hand drive howo diesel bowser truck

RHD Howo 8000L 10000L Diesel Tanker Truck With Censtar Dispenser 4

Right hand drive of howo diesel bowser truck

RHD Howo 8000L 10000L Diesel Tanker Truck With Censtar Dispenser 5

Structure of right hand drive howo diesel bowser truck

RHD Howo 8000L 10000L Diesel Tanker Truck With Censtar Dispenser 6

Specification of right hand drive howo diesel bowser truck
Optional tank capacity: 3 - 35 m3 (3,000 - 35,000 liters) for diesel bowser Truck
30 - 60 m3 (30,000 - 60,000 liters) for diesel fuel trailer
Optional truck brand of diesel bowser Truck: DFAC, Dongfeng, JAC, JMC, HOWO, FAW, SHACMAN, YUEJIN, FOTON, North Benz, HINO, etc.
Optional wheel drive of diesel bowser Truck: 4x2, 4x4, 6x4, 6x6, 8x4, left hand drive or right hand drive


Condition Brand new/Right hand drive/4X2
Chassis Brand Howo
Wheelbase(mm) 4200 mm
Dimensions(mm) 7200X2370X2900 mm
Front/Rear Axle loading(kg) 3200/8000 kg
Wheel track (front/rear) (mm) 1805/1870 mm
Front/Rear overhang(mm) 1240/1950 mm
Approach/Departure angle(°) 17/16
Max. driving speed(km/h) 95 km/h
Steering Gear Power steering, hydraulic steering with power assistance
Tire Quantity 6 pcs with one spare tire
Specifications 8.25R20
Transmission Manual type, 6 Forwards and 1 reverse
Cab It can accommodate three people with cabin width 2080mm and with Air Conditioner



Engine

Brand Yuchai
Model YC4E160-33
Fuel type Diesel
Displacement(ml) 4257 ml
Power(kw) 118kw
Horsepower(HP) 160HP
Cylinder number 4
Emission standard Euro III
Fuel Tank
Fuel tank Capacity(cbm/liters) 10 cbm/10,000 liters
Tank material Tank material:Q235 high tensile strength steel.
Thickness(mm) 5mm of tank and 6mm of end plate
Compartment No. 1
Fuel Dispenser Censtar brand,flow rate at 70L/min
Oil Pump 2No
Filling hose 15 meters
Filling hose reel 2 No
Filling Nozzle 2 No
Manhole cover ∮500mm 1 set with breather valve
Bottom Valve 2 set of API Pneumatic Bottom Valves
Discharging valve 2 set ∮100 discharging valves
Handrail Pneumatic control at tank two sides
Ladder At rear of tank
Painting Color and design as customer’s requirement




FAQ



Q: Can I buy a sample of your product for testing?

A.Yes, that's fine. Our MOQ is 1set.



Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.



Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .


Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.



Q:Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .



RHD Howo 8000L 10000L Diesel Tanker Truck With Censtar Dispenser 7

Factory of mobile diesel bowser truck

RHD Howo 8000L 10000L Diesel Tanker Truck With Censtar Dispenser 8

Different size and brands of mobile diesel bowser truck

RHD Howo 8000L 10000L Diesel Tanker Truck With Censtar Dispenser 9

Key word: 10000liters fuel truck,howo fuel truck,10tons fuel truck,10t oil truck,howo fuel truck,Fuel dispenser truck, Oil Dispenser Truck, Oil Refueling Truck, Oil Delivery Truck,10k liters fuel truck,10000liters fuel truck,shacman tanker truck,diesel dispensing truck,oil tanker lorry,fuel lorry,
