27.5cbm Carbon Steel Tanker 3 Axle Semi Trailer With Truck Head

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

27.5cbm Carbon Steel Tanker 3 Axle Semi Trailer With Truck Head

27.5cbm Carbon Steel Tanker 3 Axle Semi Trailer With Truck Head
27.5cbm Carbon Steel Tanker 3 Axle Semi Trailer With Truck Head 27.5cbm Carbon Steel Tanker 3 Axle Semi Trailer With Truck Head 27.5cbm Carbon Steel Tanker 3 Axle Semi Trailer With Truck Head 27.5cbm Carbon Steel Tanker 3 Axle Semi Trailer With Truck Head 27.5cbm Carbon Steel Tanker 3 Axle Semi Trailer With Truck Head 27.5cbm Carbon Steel Tanker 3 Axle Semi Trailer With Truck Head

Large Image :  27.5cbm Carbon Steel Tanker 3 Axle Semi Trailer With Truck Head

Product Details:

Place of Origin: Suizhou,China
Brand Name: CLW
Certification: CCC BV SGS ISO
Model Number: CLW5400B42

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: negotiable
Packaging Details: Naked,Waxed,ro-ro,bulk ship
Delivery Time: 30 days after receiving deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Units/Month
Detailed Product Description
Capacity: 30t,30ton,30tons,40t,40ton,40tons Volume: 27.5cbm
Shape: V-shaped,W-shaped Medium: Cement,flour,wheat,powder Food Material,
Axle Brand: BPW,FUWA,HJ Suspension: Air And Mechanical Suspension
High Light:

27.5cbm 3 Axle Semi Trailer

,

Truck Headed 3 Axle Semi Trailer

,

27.5cbm Tanks Trucks And Trailers

3 Axle 27.5cbm Carbon Steel Tanker 3 axle Semi Trailer with truck head for Bulk Cement/Dry Powder Material





Product Description



Cement Trailer V Type is used for carrying cement, lime, and any other powder materials in bulk. We offer this trailer with electirical or diesel compressor and we have flexibilatiy on technical specification of Cement



  • Steel or Aluminum Body
  • diesel compressor
  • BPW,FUWA,HJ Axles
  • Electirical compressor
  • JOST brand parking leg and king pin
  • Air and Mechanical Suspension
  • ABS and EBS brake system
  • Double-coin,tri-angle,Aeolus brand tires



Specifications



Semi-Trailer Dimensions
Trailer Tare weight 8500kg
Trailer Size

11000*2500*4000mm

Volume 27.5cbm
Loading Capacity The load depends on the density
Tank body Q235 4mm steel sheet
End plate Q235 6mm ball shape
Axle 13ton *3 axles
Suspension Mechanical suspension American type
Leaf spring Leaf spring 10pcs*90mm*13mm
Manhole cover 500mm manhole cover 2 sets
Tire 12R22.5 *12units
Wheel rim 9.0-22.5 *12pcs
Discharge valve 4" disc valve
Discharge pipe 4" seamless steel tube
Outlet pipe 4" rubber hose. 6meters
Kingpin JOST brand 2"/3.5" bolt-in king pin
Landing gear JOST brand two-speed, manual operating ,heavy duty landing gear
Engine WEICHAI brand model: 4102
Air compressor 37 KW, 0.2Mpa. 1000r/Min
Compartment 1UNITS
Braking system WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABS 4S2M or Optional
Air-charging system 2" main hole.2" check valve .1.5" safe valve.0.4Mpa.gauge
Quadratic blow 1" diameter check valve
Painting Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
Accessories One standard tool box ,one spare tire carrier, one crank ,one shaft head wrench,
Date of delivery 25 working days

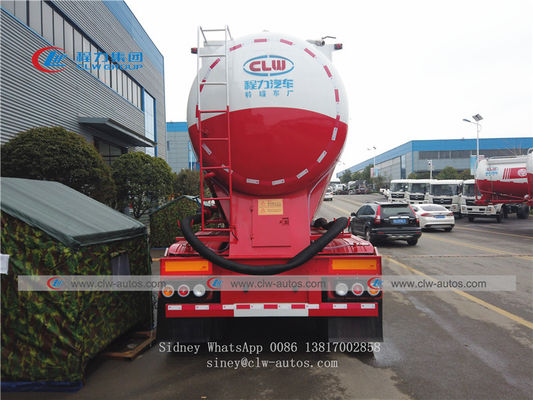

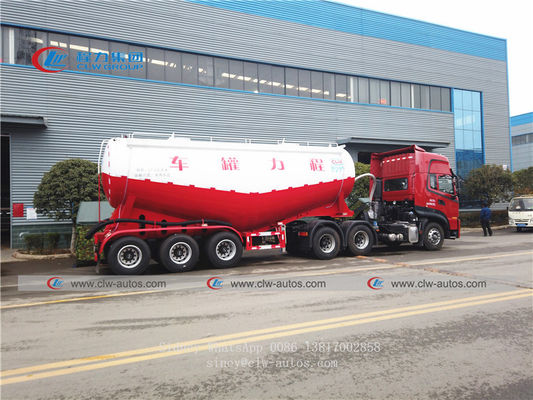

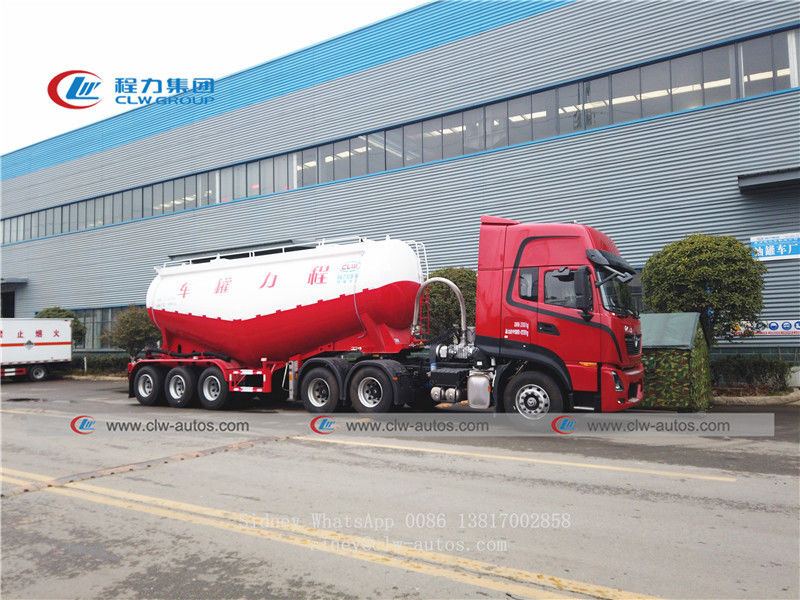

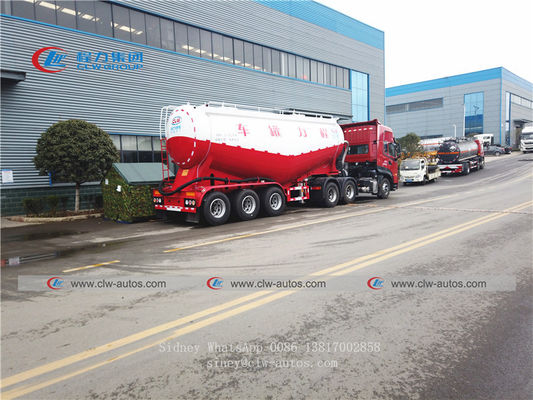

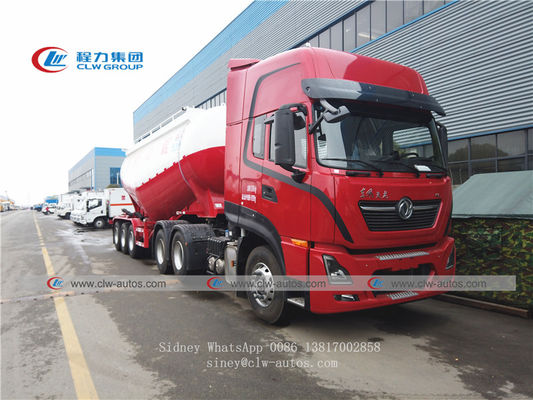

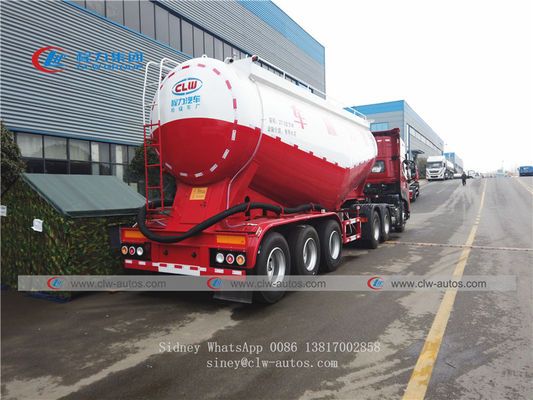

Reference Pictures of cement tanker trailer



27.5cbm Carbon Steel Tanker 3 Axle Semi Trailer With Truck Head 027.5cbm Carbon Steel Tanker 3 Axle Semi Trailer With Truck Head 127.5cbm Carbon Steel Tanker 3 Axle Semi Trailer With Truck Head 227.5cbm Carbon Steel Tanker 3 Axle Semi Trailer With Truck Head 327.5cbm Carbon Steel Tanker 3 Axle Semi Trailer With Truck Head 4



After-sales service
Semi-trailer adopts computer 3D aided design,rational structure,Use the high quality high strength steel production. welded by automatic submerged-arc processes. All our spare parts are from the original manufacturers with original part number and and anti-fake label, the quality is 100% guaranteed.



ITEM WARRANTY TERM
Main Frame frame 1 year
king pin 1 year
suspension 6 months
balance arm 3 months
U-shaped bolt 3 months
pull rod 6 months
leaf spring 3 months
landing gear 3 months
spare tire carrier 3 months
Running Gear axle 1 year
axle bearing 3 months
wheel rim 3 months
tire 3 months
Braking Device brake drum 3 months
Relay valve 3 months
brake champer diaphragm 3 months
spring brake chamber 3 months
brake shoe 3 months
air tank 3 months






Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment



FAQ



Q1: What kinds of cement tanker trailer I can order from your company?

A: We can supply various sizes of cement tanker trailer, there are 2 axles and 3 axles semil trailer for optional.



Q2: What is your production standard of cement tanker trailer? Whether your cement tanker trailer export to USA, Canada and Europen countries?

A: Our road construction truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 10Tons Bitumen Distributor Truck super structure to Europen countries before.



Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
