Shacman 4x2 5800L 6T Bitumen Spreader Truck For Paving Road

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Shacman 4x2 5800L 6T Bitumen Spreader Truck For Paving Road

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Shacman 4x2 5800L 6T Bitumen Spreader Truck For Paving Road

Product Details:

Place of Origin: Suizhou,China
Brand Name: CLW
Certification: CCC BV SGS ISO
Model Number: CLW5074SX2

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: negotiable
Packaging Details: Naked,Waxed,ro-ro,bulk ship
Delivery Time: 30 days after receiving deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Units/Month
Detailed Product Description
Overall Size: 5995*2200*2400mm Type: Truck
Capacity: 5t,5ton,5tons,6t,6ton,6tons Tank Material: Stainless Steel Q304
Insulation Layer: Three Layers Spraying Width: 4500mm
Asphalt Spraying Volume: 0.25~3.5L/m2 Working Speed: 1.5~7km/h
No. Of Spraying Nozzles: 36 Tank Volume: 5cbm,5000liters,6cbm,6000liters
High Light:

6T Bitumen Spreader Truck

,

5800L Bitumen Spreader Truck

,

Shacman 4x2 Asphalt Distributor Sprayer Truck

Shacman 4x2 5800Liters Bitumen spreader truck Road Construction Machine Asphalt Distributor Truck for sale



Product Description



1) Spraying asphalt and bitument:heated asphalt, hot modified asphalt, cutback asphalt, emulsified asphalt

2) System of 5-10tons bitumen distributor truck

  • manual/automatic control of spraying volume and working width,control of single spraying nozzle
  • control in cabin or rear working platform
  • automatic controling system of measuring driving speed and adjust pump rotation number after input asphalt kind and spraying width.
  • Heating system(10~15℃/h) to improve heating efficiency

3) Imported brand of key parts such as hudraulic pump,hudraulic motor,asphalt pump,Proportional Valve,automatic control system

4) Italy burner for automatic fire and temperature control



Specifications of asphalt sprayer Truck

Product Name Asphalt spreader truck
Volume of Tank 5.8CBM/5.8m3
Overall Dimension 5995*2200*2400mm
Tank Size Oval shape,3200*1950*1500mm(length*long axis*short axis)
Thickness of Insulation Layer 100mm insulation layer in middle of tank body
Gross Weight 7360kg
Curb Weight 4320kg
Payload 4000kg
Wheelbase 3300mm
Fuel Type Diesel
Engine CY4100,70KW/95HP,4 cylinder in line,3771ml,turbocharged intercooled,water cooling
Transmission 5 front gears and 1 rear gear
Brake Automatically air cut-off brake
Axle & Tire 2 axle, 6* 7.00-16 Linglong brand tires
Max speed 90km/h
Bitumen Spray System Options (Please select which type you need when inquiry)
Type Common Type Standard Type Smart Type
Model of asphalt pump QGB270(300L/min) QGB680(680L/min) QGB680(680L/min)
Origin of asphalt pump China made China made China made
Suitable Tank Volume 6CBM 6CBM 6CBM
Medium Dilute/Emulsify asphalt Hot/Dilute/Emulsify asphalt Hot/Dilute/Emulsify asphalt
Hydraulic System Shanxi YUCI Shanxi YUCI Shanxi YUCI
Proportional Valve - - Taiwan EFBG-03-160-HF
Reversing Valve - -
Relief Valve - -
Model of Hydraulic Pump CBQ550-L CBQ550-L CBQ550-L
Model of Hydraulic Motor 05-110-BD31 05-110-BD31 05-110-BD31
Radiator RISHENG brand RISHENG brand RISHENG brand
Control System Manaul Rear work platform German Siemens CLW-39-01
Control Type 1-control-1 1-control-1 Computer smart control, 1-control-1
Operation Person Number 2 persons 2 persons 1 persons
Asphalt Nozzle Number 11 30~39 30~39
Heating Type Heat conducting oil automatically heating
Conducting Oil Hebei,China
Burner Italy import G10
Power of Engine 6KW
Spraying Capacity 0.8L/min 0.2~3L/min 0.2~3L/min
Spraying Error / ± ±2%
Spraying Width 4.5m 4.5 4.5~6m

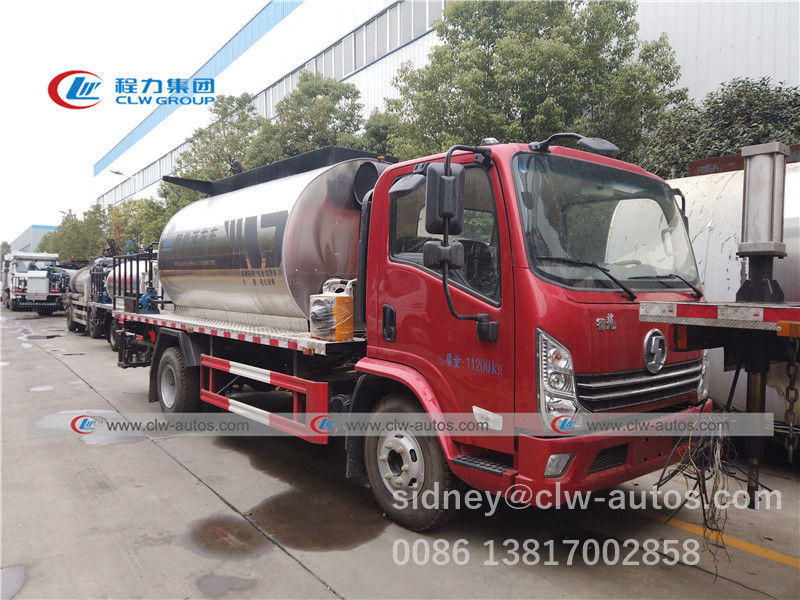

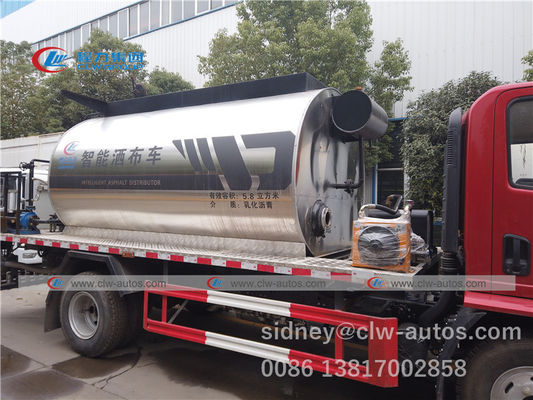

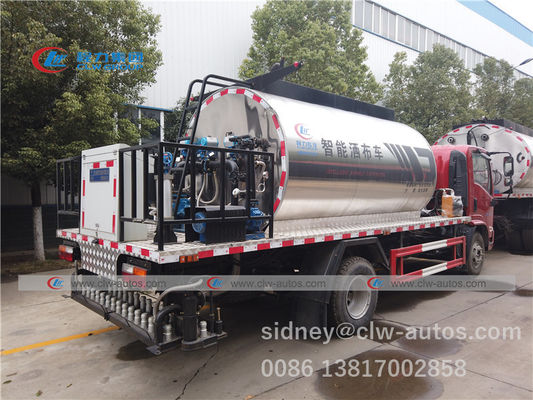

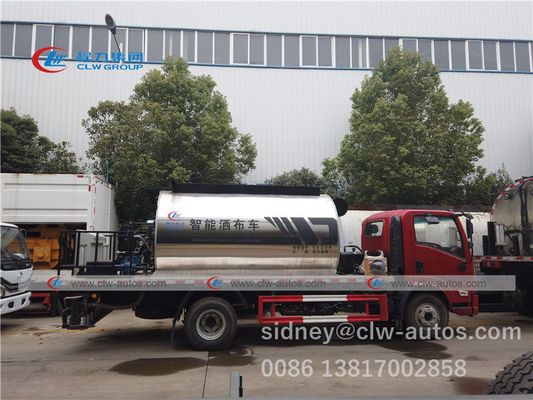

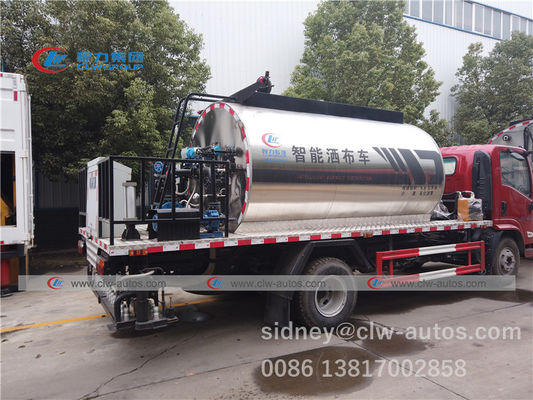

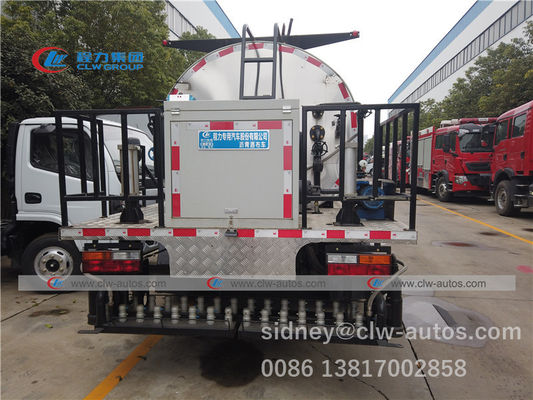

Reference Pictures of asphalt sprayer Truck

Shacman 4x2 5800L 6T Bitumen Spreader Truck For Paving Road 0Shacman 4x2 5800L 6T Bitumen Spreader Truck For Paving Road 1Shacman 4x2 5800L 6T Bitumen Spreader Truck For Paving Road 2Shacman 4x2 5800L 6T Bitumen Spreader Truck For Paving Road 3





Key parts of asphalt sprayer Truck



Shacman 4x2 5800L 6T Bitumen Spreader Truck For Paving Road 4





Our Service

  • Quick feedback to solve your questions

  • Professional engineering and production team

  • Related Accessories and spare parts offered,no future worries

  • Regular customer after-sale visiting

  • Free technical staff training and guidance

  • Reasonable price and good quality

  • Quick delivery and shipment





FAQ



Q1: What kinds of asphalt sprayer Truck  I can order from your company?

A: We can supply various sizes of asphalt sprayer Truck such as 2ton,3ton,4ton,5ton,6ton to 25ton, if you need larger size, there are 2 axles and 3 axles semil trailer for optional.



Q2: What is your production standard of asphalt sprayer Truck ? Whether your 10Tons Bitumen Distributor Truck or trailers export to USA, Canada and Europen countries?

A: Our asphalt sprayer Truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 10Tons Bitumen Distributor Truck super structure to Europen countries before.



Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
