Shacman D Long F2000 6x4 290HP Heavy Duty Dump Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Shacman D Long F2000 6x4 290HP Heavy Duty Dump Truck

Shacman D Long F2000 6x4 290HP Heavy Duty Dump Truck
Shacman D Long F2000 6x4 290HP Heavy Duty Dump Truck Shacman D Long F2000 6x4 290HP Heavy Duty Dump Truck Shacman D Long F2000 6x4 290HP Heavy Duty Dump Truck Shacman D Long F2000 6x4 290HP Heavy Duty Dump Truck Shacman D Long F2000 6x4 290HP Heavy Duty Dump Truck Shacman D Long F2000 6x4 290HP Heavy Duty Dump Truck

Large Image :  Shacman D Long F2000 6x4 290HP Heavy Duty Dump Truck

Product Details:

Place of Origin: SUIZHOU,CHINA
Brand Name: CLW
Certification: BV,SGS,CCC
Model Number: CLW3250S34

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: USD33800-36500
Packaging Details: naked,waxed,bulk ship,ro-ro
Delivery Time: 30 days after receiving deposit at account
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 units/month
Detailed Product Description
Brand: China Famous Brand Shacman Loading Capacity: 30tons 35tons 40tons 45tons
Lifting Type: Front Tipping, Middle Tipping Oil Cylinder Brand: International Brand HYVA Or Chinese Brand
Thickness Of Dumper: Side 6mm, Bottom 8mm Or As Per Client's Request Dumper Material: High Quality Q345B
Color: White,Red,Yellow Or Customized Engine: 290HP
High Light:

Shacman D Long F2000 Tipper Truck

,

290HP Heavy Duty Dump Truck

,

6x4 Heavy Duty Dump Truck

Tipper Truck Shacman D'long F2000 6x4 290HP Heavy Duty Dump Truck Hot Sale



A dump truck, known also as a dumper truck or tipper truck, is used for transporting dumps and taking dumps, big ones(such as sand, gravel, or demolition waste) for construction as well as coal. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic rams to lift the front, allowing the material in the bed to be deposited ("dumped") on the ground behind the truck at the site of delivery. In the UK, Australia, South Africa and India the term applies to off-road construction plant only, and the road vehicle is known as a tipper lorry (UK, India), tip-truck, tip-trailer, tipper truck, or tipper (Australia, New Zealand, South Africa).

Product Description
1. Dump truck brand:SINOTRUK HOWO,CAMC,SHACMAN,JAC,NORTH-BENZ,ISUZU,FOTON...
2. Tipping Model:Front-tipping,middle tipping dump truck,HYVA or Chinese brand hydraulic oil cylinder brand
3. High tensile steel for dumper materia,4mm,6mm,8mm, 10mm oer as per client's request and purpose.
4. Used in construction site for transportation of mineral,stone,sand and so on.



Specification

Condition New condition/Left hand drive/6x4
Chassis Brand SHACMAN
Model F2000
Curb weight(kg) 12500 kg
Axle loading(Front/Rear)(kg) 7500/18000 kg
Wheelbase(mm) 3800+1350 mm
Dimensions(mm) 8329*2500*3450 mm
Wheel track (front/rear) (mm) 2035/1850 mm
Front/Rear overhang(mm) 1525/1654 mm
Approach/Departure angle(°) 28/30
Max. driving speed(km/h) 77 km/h
Clutch Reinforced diaphragm clutch
Fuel tank volume(L) 300 L
Brakes Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake
Steering Gear Power steering, hydraulic steering with power assistance
Tire Quantity 10pcs with one spare tire
Specifications 11R22.5
Transmission FAST 9JS135, 9 Forwards and 1 reverse
Cab It can accommodate three people, With Air conditioner.
Engine Fuel type Diesel
Displacement(ml) 9726 ml
Power(kw) 213kw
Horsepower(HP) 290 HP
Cylinder number 6
Emission standard Euro 2
Upper Size(mm) 5600*2300*1500 mm
Max. Loading weight(kg) 25 tons
Button Thickness(mm) 8.0 mm
Side plate Thickness(mm) 6.0 mm
Material Q235 Carbon steel
Tipping type Middle Tipping
Oil cylinder brand China local brand
Oil cylinder size(mm) 220 mm
Remarks Color can be customized

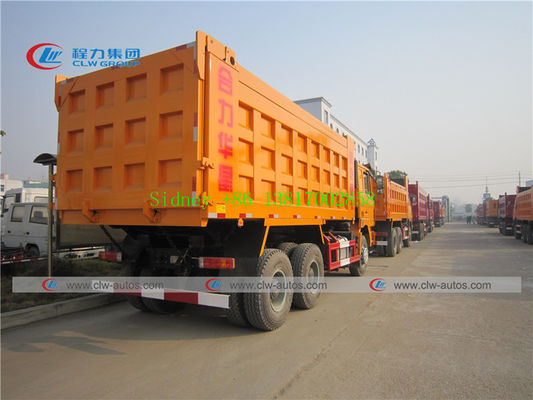

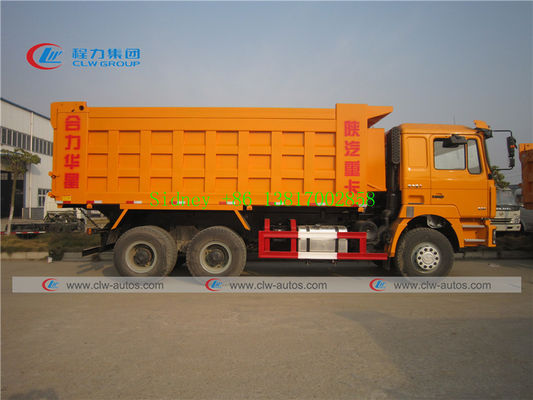

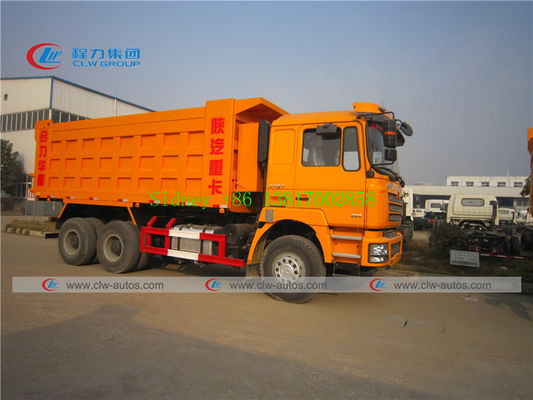

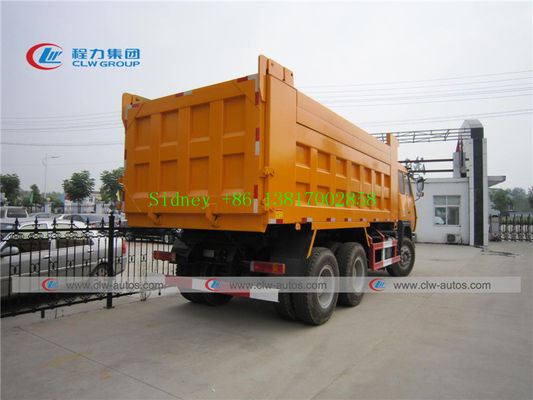

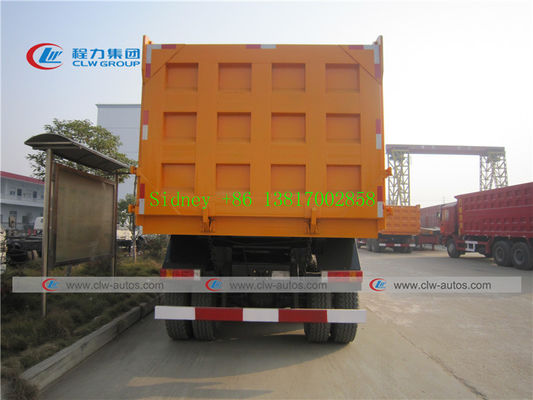

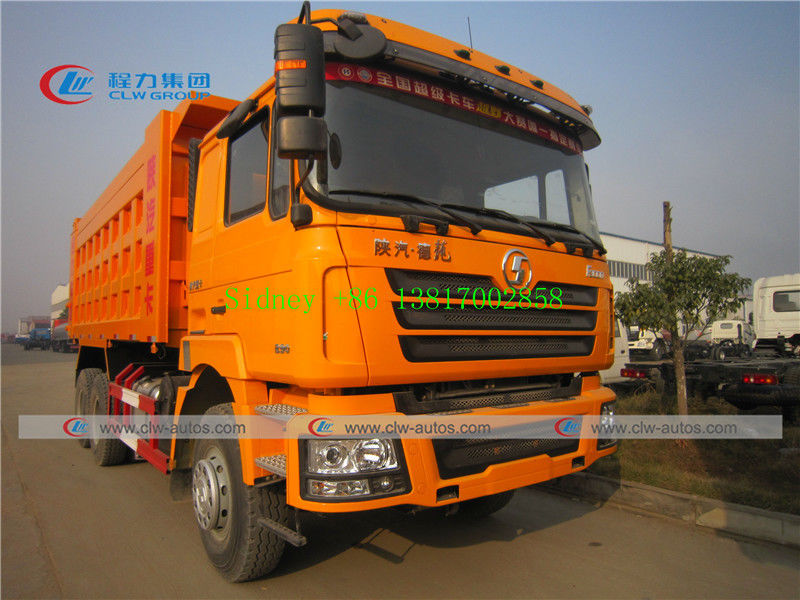

Products Show
Shacman D Long F2000 6x4 290HP Heavy Duty Dump Truck 0Shacman D Long F2000 6x4 290HP Heavy Duty Dump Truck 1Shacman D Long F2000 6x4 290HP Heavy Duty Dump Truck 2Shacman D Long F2000 6x4 290HP Heavy Duty Dump Truck 3

Working Scenario
Shacman D Long F2000 6x4 290HP Heavy Duty Dump Truck 4
Factory overview
Shacman D Long F2000 6x4 290HP Heavy Duty Dump Truck 5


Sales Service
①Pre-sales Service: Communicate with customers, analyze their needs. Quick feedback to solve your questions.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
Related Accessories and spare parts offered,no future worries. Regular customer after-sale visiting.


FAQ



Q1: What kinds of dump trucks I can order from your company?


A: There are various sizes and types of dump trucks,you can contact us and tell your request.We will recommend you suitable product.



Q2:: Have you supplied dump trucks to any overseas companies?


A: Yes,we offered dump trucks to many Africa and south-east Asian,south-American countries.



Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?


A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
