Product Details:
Payment & Shipping Terms:
|
| Brand: | Chinese Famous Brands, Such As Sinotruk Howo, CAMC, Shacman, Foton, North-benz, JAC, ISUZU, Etc. | Loading Capacity: | 30tons, 40tons, 50tons |
|---|---|---|---|
| Lifting Type: | Front Tipping, Middle Tipping | Oil Cylinder Brand: | International Brand HYVA Or Chinese Brand |
| Dumper Material: | High Quality Q345B | Thickness Of Dumper: | Bottom 10mm, Side 8mm, Or As Customer Request |
| Color: | White, Red, Yellow, Green, Or As Customer Request | Warranty: | 1 Year |
| High Light: | Heavy Duty Dump Tipper Truck,50 Ton Dump Tipper Truck,Sinotruk Howo Dumper Tipper Truck |
||

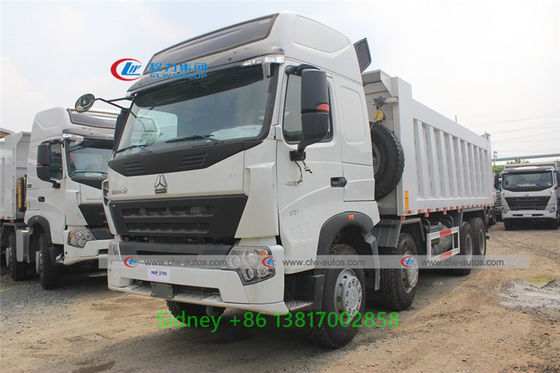

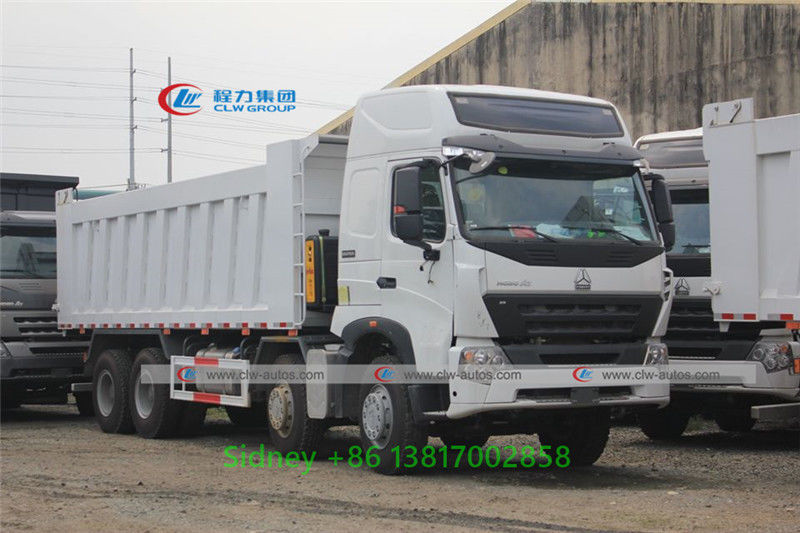

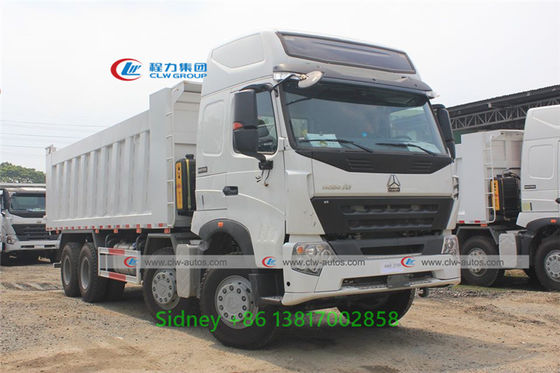

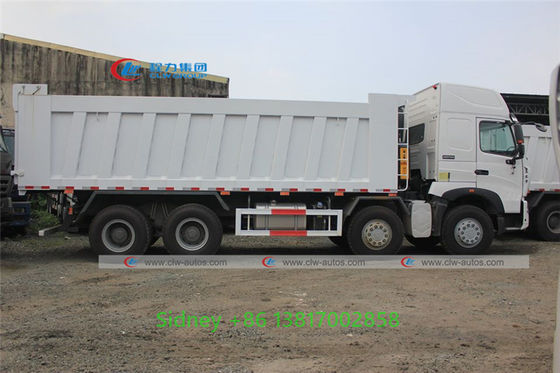

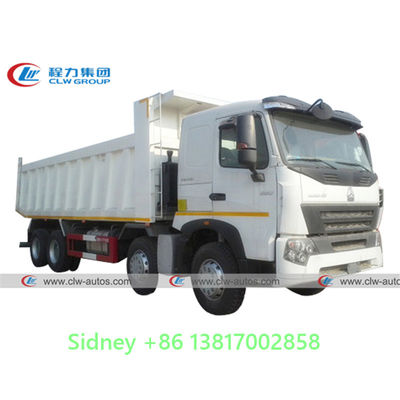

Sinotruk HOWO 8X4 420HP 50ton Heavy Duty Mining Stone Sand Dump Tipper Truck Dumptruck for Construction Mining Transportation
Product Description
1) Dump truck brand: SINOTRUK HOWO, CAMC, SHACMAN, JAC, NORTH-BENZ, ISUZU, FOTON, etc.
2) Tipping Model: Front-tipping, Middle-tipping.
3) Hydraulic oil cylinder brand: International brand HYVA or Chinese famous brand.
4) High tensile steel for dumper materia: 4mm,6mm,8mm, 10mm or as per client's request.
5) Used in Construction or Mineral site for Transportation of mineral, stone, sand, and etc.
Product Specification
| Truck Specifications | ||||
| Chassis Brand | SINOTRUK HOWO | |||
| Drive model | 8x4 | |||
| Loading capacity | 40-50tons | |||
| Overal Dimension | 11365*2496*3800mm | |||
| Carriage Internal Dimension | 8000*2300*1500mm | |||
| Dump Van Volume | 28m3 ( 16-30m3 for option ) | |||
| Steel Thickness of Carriage | Bottom 8mm, Side 6mm (As Per Client's Request) | |||
| Dumper Material | Q345B | |||
| Hydraulic Lift of Carriage | Front Lift (HYVA cylinder or iddle lift for option ) | |||

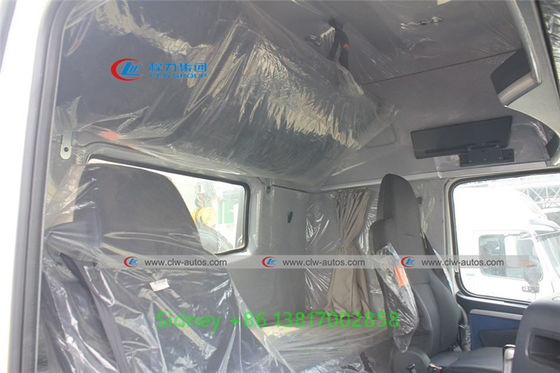

| Cabin | Model | SINOTRUK HW76 Lengthen cab | ||
| single bunk, new type seat, adjustable steering wheel, EURO new type heating & ventilating system, German VDO instruments, safety belts, exterior sun visor, stereo radio/cassette recorder, left driving, air conditioner | ||||
| Engine | Model | D12.42-20 | ||
| Manufacturing Company | SINOTRUK | |||
| Maximum output | 420HP | |||
| Emission standard | Euro II | |||
| Number of cylinder | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection | |||
| Transmission | SINOTRUK HW19710 transmission ,10 forward and 2 reverse | |||
| Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance. | |||
| Steering | ZF8118 Steering Gear Box, hydraulic steering with power assistance. (Left hand driving), ( ZF8098 RHD right hand drive for option ) |
|||
| Wheel Base | 1950+4625+1350mm | |||
| Wheels&Tires | Rims:10 hole-steel ;Tyres:12.00R20 radial tyre 12pcs with 1 Spare tire. ( tubeless for option ) | |||
| Front Axle | SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes. | |||
| Rear Axle | SINOTRUK AC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:5.73;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers. | |||
| Brake System | Service brake | Dual circuit compressed air brake | ||
| Parking brake(emergency brake) | spring energy,compressed air operating on rear wheels | |||
| Oil Tank | Square type-300L Aluminum alloy fuel tank | |||
| Electrics | Operating voltage | 24V,negative grounded | ||
| Starter | 24V,7.5 Kw | |||
| Alternator | 3-phase,28V,1500 W | |||
| Batteries | 2x12 V,165 Ah | |||
| Lights | horn,headlamps,fog lights,brake lights,indicators and reverse light. | |||
| Performance | Maximum driving speed | 80 km/h | ||
| Fuel consumption | 35 L/100km | |||
| Options | Revolving Light on roof of cab | |||
| RHD right hand drive | ||||
| Upper body | bucket shape body for heavy good,big size stones etc | |||
| U shape body bulk cargo , ore and other goods | ||||
| Boat type body bulk, muck, geotechnical class | ||||
| Tubeless tires | 12R22.5 ,315/80R22.5 etc | |||
| Brake water spray | ||||
| ABS, EVB engine brake | ||||
Product Show
Related products
Sales Service
FAQ
Q1: What kinds of dump trucks I can order from your company?
A: There are various sizes and types of dump trucks,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied dump trucks to any overseas companies?
A: Yes,we offered dump trucks to many Africa and south-east Asian,south-American countries.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
