HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Home ProductsFuel Delivery Truck

4 Compartment ISUZU FTR 15000L Refueler Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

4 Compartment ISUZU FTR 15000L Refueler Truck

4 Compartment ISUZU FTR 15000L Refueler Truck
4 Compartment ISUZU FTR 15000L Refueler Truck 4 Compartment ISUZU FTR 15000L Refueler Truck 4 Compartment ISUZU FTR 15000L Refueler Truck 4 Compartment ISUZU FTR 15000L Refueler Truck 4 Compartment ISUZU FTR 15000L Refueler Truck

Large Image :  4 Compartment ISUZU FTR 15000L Refueler Truck

Product Details:

Place of Origin: Suizhou,China
Brand Name: CLW
Certification: CCC,ISO
Model Number: CLW5162WYT

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: 18960 usd/unit~42560 usd/unit
Packaging Details: Naked with waxing before shipment
Delivery Time: 20~30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 units/per month
Detailed Product Description
Tank Volume: 10000l~15000L,15m3,15K Liters,15000liters,15cbm Fuel Type: Diesel Engine 205hp
Drive Wheel: 4X2,6X4,8X4,4X4,6X6,8X8 Fuel Refueler Truck Tank Material: Carbon Steel,Q235 Carbon Steel/ Stainless Steel Fuel Refueler Truck
Transmission Type: Manual, Automatic Fuel Refueler Truck Wheelbase: 4500mm,4700mm Fuel Refueler Truck
Product Name: Fuel Tanker Truck, Fuel Delivery Truck, Fuel Tank Truck,oil Tanker Truck Storage: Edible Oil,disel,gasoline,petroleum,oil,chemical
Conditon: Brand New Fuel Refueler Truck Engine Capacity: 5.19L,5190ml
Color: Customer's Require, According To Customer's Requirements, Per Your Request, Opitional, Paint According To Your Requirements Emission Standard: Euro 5/6 Fuel Refueler Truck
Steering: Left Hand Drive Fuel Refueler Truck
High Light:

15000L Refueler Truck

,

4 Compartment Refueler Truck

,

ISUZU FTR Mobile Refueling Truck

ISUZU FTR 15tons 15000L Fuel Refueler Truck 4 Compartment for Petroleum Delivery

Description



ISUZU fuel refueler truck(also called fuel truck,fuel tank truck,fuel delivery truck,fuel oil delivery truck,gallon fuel truck,petrol tanker truck,oil truck,oil tanker truck,oil bowser,diesel transport truck,gasoline transport truck,petrol tanker,petro dispenser truck) is used to transport fuel,oil,diesel,gasoline,kerosene and so on.



1. Purpose of ISUZU fuel refueler truck: It used for vehicles refueling and mobile transporting Fuel/Petrol/Diesel, etc.

2. Optional for Refueling System of ISUZU fuel refueling truck: Oil pump, Hose reel with filling gun/Oil dispenser machine

3. Tank shape of ISUZU fuel road tanker: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
5. Refueling machine of ISUZU oil tanker truck: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
6. Optional parts of ISUZU fuel truck: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.



Specification
Condition Brand new/left hand drive /4X2
Chassis Brand ISUZU FTR
Wheelbase(mm) 4500 mm
Dimensions(mm) 8400X2500X3100 mm
Front/Rear Axle loading(kg) 6300/13000 kg
Tire Quantity 6 pcs with one spare tire
Specifications 10.00R20
Transmission Manual type MLD, 6 Forwards and 1 reverse
Cab It can accommodate three people with cabin width 2mm and with Air Conditioner



Engine

Brand ISUZU
Model 4HK1-TC50
Fuel type Diesel
Displacement(ml) 5190 ml
Power(kw) 151kw
Horsepower(HP) 205HP
Cylinder number 4
Emission standard Euro V
Fuel Tank
Fuel tank Capacity(cbm/liters) 15 cbm/15,000 liters
Tank material Tank material:Q235 high tensile strength steel,optional for aluminum alloy or stainless steel
Thickness(mm) 5mm of tank and 6mm of end plate
Compartment No. 1,or as customized
Manhole cover ∮500mm 1 set with breather valve
Bottom Valve 1 set of API Pneumatic Bottom Valves
Discharging valve 1 set ∮100 discharging valves
Handrail Pneumatic control at tank two sides
Ladder At rear of tank
Painting Color and design as customer’s requirement



Key word: 15tons fuel truck,15t oil truck,isuzu fuel truck,Fuel dispenser truck, Oil Dispenser Truck, Oil Refueling Truck, Oil Delivery Truck,15k liters fuel truck,15000liters fuel truck,isuzu tanker truck

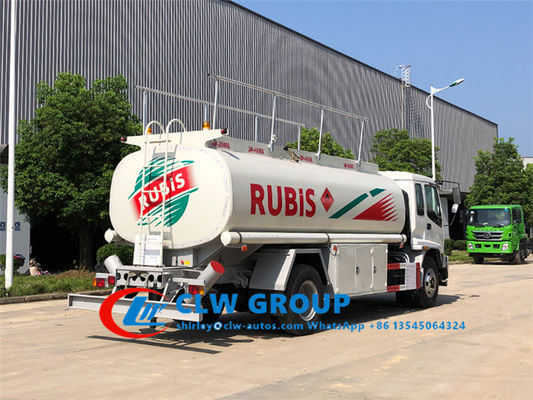

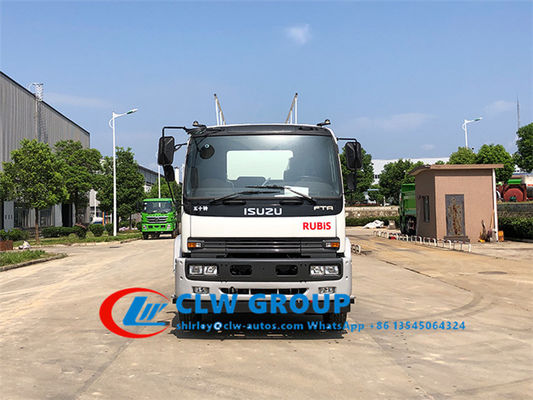

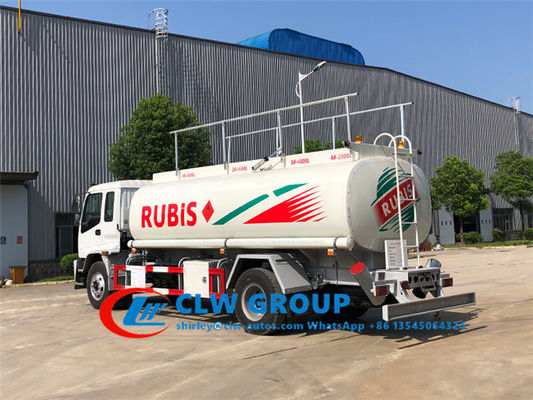

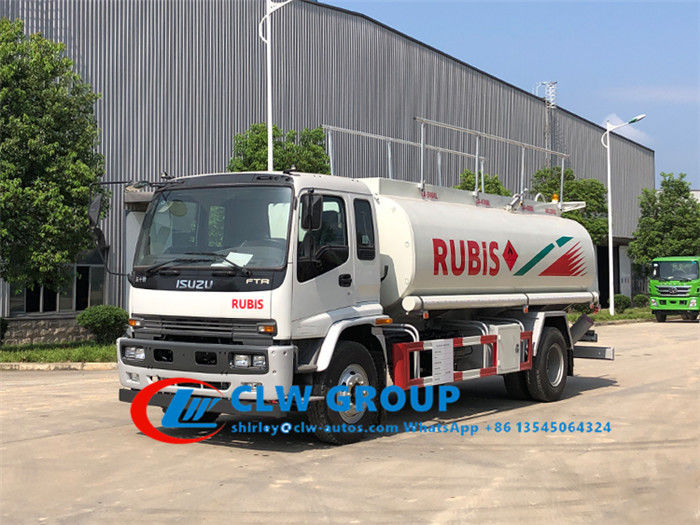

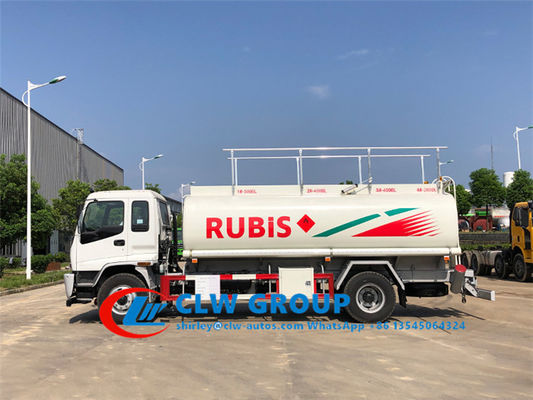

Reference pictures

front side of isuzu fuel tanker truck for Djibouti

4 Compartment ISUZU FTR 15000L Refueler Truck 04 Compartment ISUZU FTR 15000L Refueler Truck 14 Compartment ISUZU FTR 15000L Refueler Truck 24 Compartment ISUZU FTR 15000L Refueler Truck 3

4 Compartment ISUZU FTR 15000L Refueler Truck 4



Why do you choose ISUZU fuel refueler truck?

Feature--Stable and reliable ISUZU truck chassis;--High quality carbon steel material;--Independent compartment for different types of fuel types;--Serveral baffles inside tank to improve safety performance;--High pressure gas leakage test to ensure tank safety;

-- The tank shape adopts advanced welding technology and arc butt welding technology of the head as well as the integral one forming technology, fast installation, convenient maintenance, beautiful appearance.

--The anti-corrosion coating on the surface of the tank adopts sand blasting, derusting treatment, spraying, cleaning and other advanced technologies.

-- choose high quality domestic or imported safety accessories, carburetor and pump for users to choose, complete supporting.

--strictly adopt scientific advanced construction technology to ensure the lowest shrinkage rate and the highest dimensional stability in the low temperature state.
