8T 10T ISUZU 190HP Carbon Steel Oil Tanker Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

8T 10T ISUZU 190HP Carbon Steel Oil Tanker Truck

8T 10T ISUZU 190HP Carbon Steel Oil Tanker Truck
8T 10T ISUZU 190HP Carbon Steel Oil Tanker Truck 8T 10T ISUZU 190HP Carbon Steel Oil Tanker Truck 8T 10T ISUZU 190HP Carbon Steel Oil Tanker Truck 8T 10T ISUZU 190HP Carbon Steel Oil Tanker Truck 8T 10T ISUZU 190HP Carbon Steel Oil Tanker Truck

Large Image :  8T 10T ISUZU 190HP Carbon Steel Oil Tanker Truck

Product Details:

Place of Origin: Suizhou,China
Brand Name: CLW
Certification: ISO, CCC
Model Number: clw5101WYJYC

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: 12250-29520 USD/UNIT
Packaging Details: Naked package shipped by bulk ship
Delivery Time: 20~30 days after received advance payments
Payment Terms: L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability: 300units/month
Detailed Product Description
Truck Brand: ISUZU 700P Oil Tanker Truck Drive Model: 4x2, 6x4, 8x4, 6*4, 4*2,8*4 Oil Tanker Truck
Tank Volume: 10000liters,10000L,15000L,15000liters Oil Tanker Truck Fuel Type: Diesel/gasoline/oil Oil Tanker Truck
Condition: New Oil Tanker Truck Transmission Type: 6 Speed Forward And 1-reverse Oil Tanker Truckk
Horsepower: 120HP 190HPhp Oil Tanker Truckk Tank Material: Carbon Steel, Q235 Carbon Steel/ Stainless Steel Oil Tanker Truck
Product Name: Oil Bowser Truck, Fuel Delivery Truck,Fuel Tank Truck,howo Fuel Truck Emission Standard: Euro2/3/4/5 Oil Tanker Truck
Wheelbase: 3815mm Oil Tanker Truck Color: As Per Your Request
High Light:

8T Oil Tanker Truck

,

10T Oil Tanker Truck

,

ISUZU Petrol Tanker Truck

ISUZU 190HP 8Tons 10Tons 10,000L Carbon Steel Oil Tanker Truck For Somalia



Oil tanker Truck(also called fuel tank truck, fuel tanker truck, oil delivery trucks, oil transport tanker truck, mobile refueling truck, oil fueling vehicles, oil bowser trucks, petrol/diesel carrying vehicles, fuel bowser truck, oil tank lorry, fuel tanker semi trailers, mobile oil tank trucks) is used to transport fuel,oil,diesel,gasoline,kerosene and so on.



Oil tanker truck is optional tank capacity: 3 - 35 m3 (3,000 - 35,000 liters)
30 - 60 m3 (30,000 - 60,000 liters) for oil tanker trailer
Optional truck brand of
oil tanker trailer: DFAC, Dongfeng, JAC, JMC, HOWO, FAW, SHACMAN, YUEJIN, FOTON, North Benz, HINO, etc.
Optional wheel drive of
oil tanker truck: 4x2, 4x4, 6x4, 6x6, 8x4, left hand drive or right hand drive



Feature-- Durable ISUZU truck chassis;-- High quality carbon steel/aluminum alloy tanker material;-- Independent compartment for different types of fuel types;-- Serveral baffles inside tank to improve safety performance;

-- The tank shape adopts advanced welding technology and arc butt welding technology of the head as well as the integral one forming technology, fast installation, convenient maintenance, beautiful appearance.

-- The anti-corrosion coating on the surface of the tank adopts sand blasting, derusting treatment, spraying, cleaning and other advanced technologies.

-- choose high quality domestic or imported safety accessories, carburetor and pump for users to choose, complete supporting.

-- strictly adopt scientific advanced construction technology to ensure the lowest shrinkage rate and the highest dimensional stability in the low temperature state.

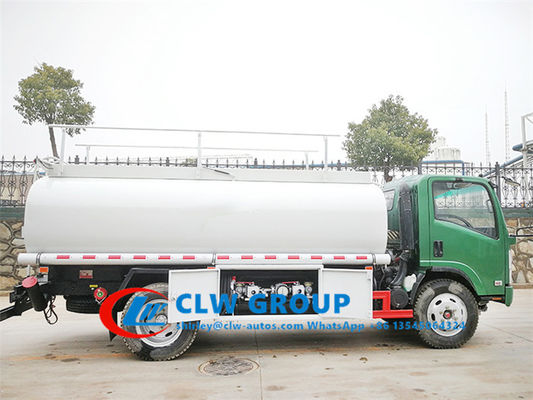

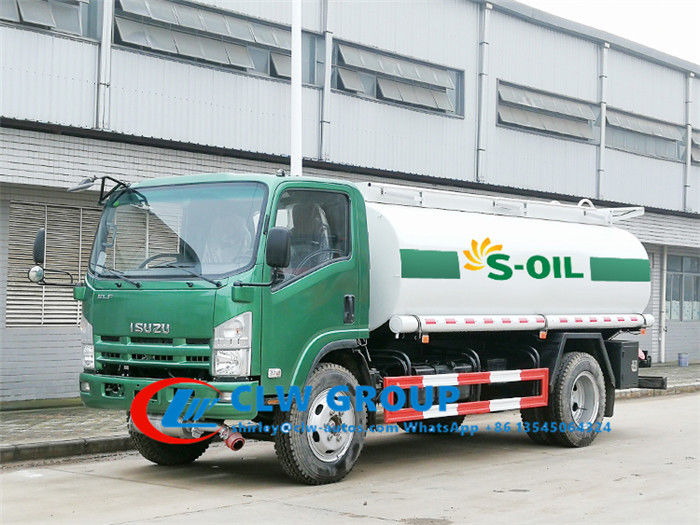

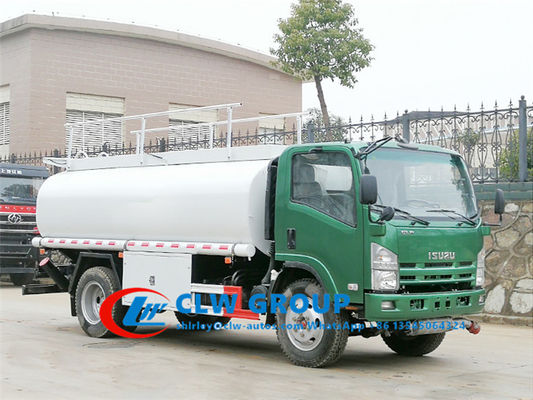

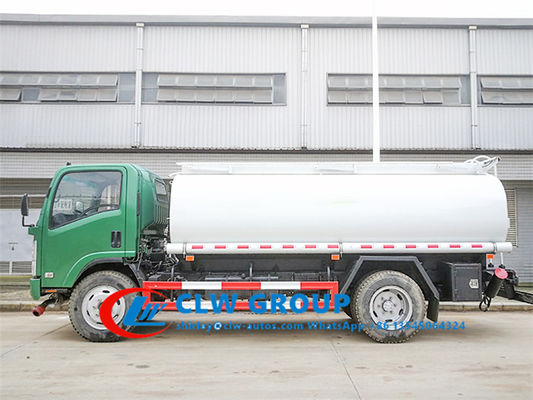

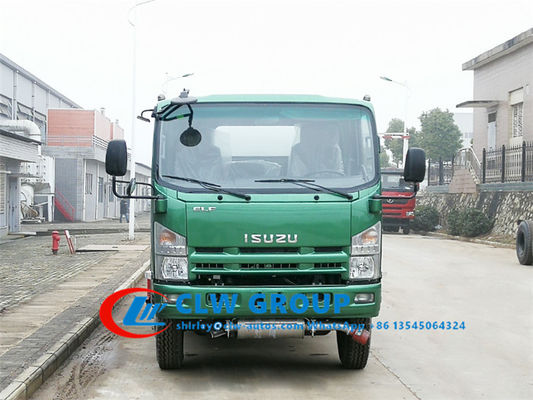

Reference pictures



8T 10T ISUZU 190HP Carbon Steel Oil Tanker Truck 08T 10T ISUZU 190HP Carbon Steel Oil Tanker Truck 1



8T 10T ISUZU 190HP Carbon Steel Oil Tanker Truck 2

8T 10T ISUZU 190HP Carbon Steel Oil Tanker Truck 3

8T 10T ISUZU 190HP Carbon Steel Oil Tanker Truck 4

8T 10T ISUZU 190HP Carbon Steel Oil Tanker Truck 5

8T 10T ISUZU 190HP Carbon Steel Oil Tanker Truck 6

8T 10T ISUZU 190HP Carbon Steel Oil Tanker Truck 7

8T 10T ISUZU 190HP Carbon Steel Oil Tanker Truck 8

Specification
Tank Body Capacity 10 cubic meters/15 cubic meters
Material

1. The tank is made of 5mm high-quality carbon steel Q235;

2.The tank material of 304 stainless steel or aluminum alloy is optional.

Filling Medium Liquid Fuel: gasoline or diesel
Equipment a. It can be equipped with a tax-controlled computer refueling machine (mass flow), equipped with a 10-15 meters automatic retractable reel, with a refueling gun

b. Bottle loading system.

c. There is a container indicator which can indicate the tank volume when filling or discharging.

d. In order to ensure the pressure in the tank is basically the same as the atmospheric pressure during the working process. A breathing valve is installed on the large cover of the tank. When the internal pressure of the tank is higher than 8KPa, the value plate on the breathing valve is open, and when the internal pressure is lower than 3PKa, the valve under the breathing valve is open.
Coating

a. The inside of the tank is made of epoxy resin with a thickness of 120 microns (three-pass process), which not only has anti-corrosion effect, but also has anti-seepage and plugging effects.


b. The outer part of the tank is sprayed with iron red alkyd antirust paint, which has good adhesion and strong anti-rust ability.


c. Tank color is customerized if necessary



1. Purpose of Oil Bowser Truck: It used for vehicles refueling and mobile transporting Fuel/Petrol/Diesel, etc.

2. Optional for Refueling System of Oil Bowser Truck: Oil pump, Hose reel with filling gun/Oil dispenser machine,flow meter

3. Tank shape of Oil Bowser Truck: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
5. Refueling machine of Oil Bowser Truck: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
6. Optional parts ofOil Bowser Truck: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.





FAQ



Q: Can I buy a sample of your product for testing?

A.Yes, that's fine. Our MOQ is 1set.



Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.



Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .


Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.



Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .



8T 10T ISUZU 190HP Carbon Steel Oil Tanker Truck 9

8T 10T ISUZU 190HP Carbon Steel Oil Tanker Truck 10



Key word: 10000liters fuel truck,howo fuel truck,10tons fuel truck,10t oil truck,howo fuel truck,Fuel dispenser truck, Oil Dispenser Truck, Oil Refueling Truck, Oil Delivery Truck,20k liters fuel truck,20000liters fuel truck,shacman tanker truck,diesel dispensing truck,oil tanker lorry,fuel lorry,
