Product Details:
Payment & Shipping Terms:
|
| Design Code: | Total Standard | Type Of Discharge Valve: | API Or French Style |
|---|---|---|---|
| No. Of Compartment: | 2 Or 3 Or 4 Or 5 Or 6 Or 7 Or 8 | Size Of Discharge Valve: | 3inch Or 4 Inch |
| No. Of Axle: | 2 Or 3 Or 4 | Axle Brand: | BPW Or Fuwa Or Hj |
| Tyre Brand: | Triangle Or Double Coin | Size Of Tire: | 12r22.5 Or 315/80r22.5 Or 385/60r22.5 |
| Air Operated Shut-off Valves: | Yes | Rear Ladder: | Yes |
| Top Safety Rail: | Yes | Level Gauge: | Optional |
| Anti-Theft Lock: | Optional | Additional Fuel Tanker: | 500liter Or 1000liter Are Optional |
| Spare Tire Rack: | Yes | ||
| High Light: | HCl Chemical Liquid Tanker Semi Trailer,Anti Corrosion Tanker Semi Trailer,2 Axle Chemical Tanker Trailer |
||

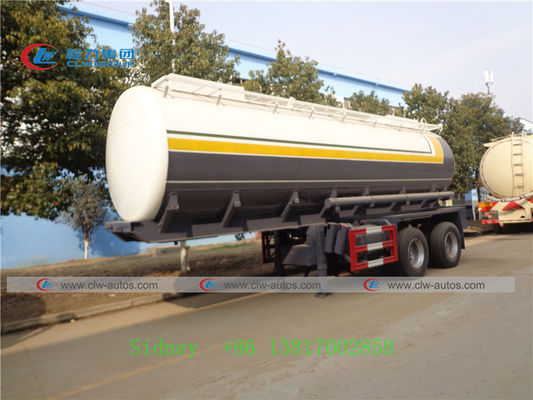

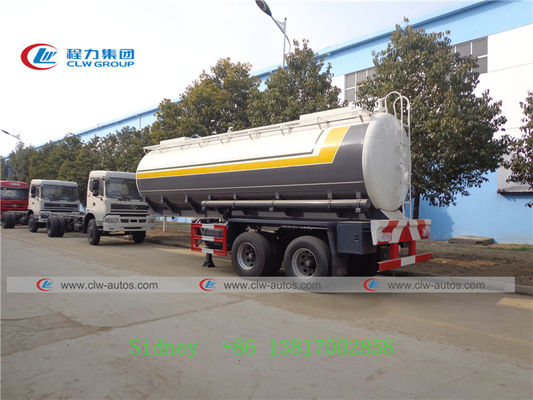

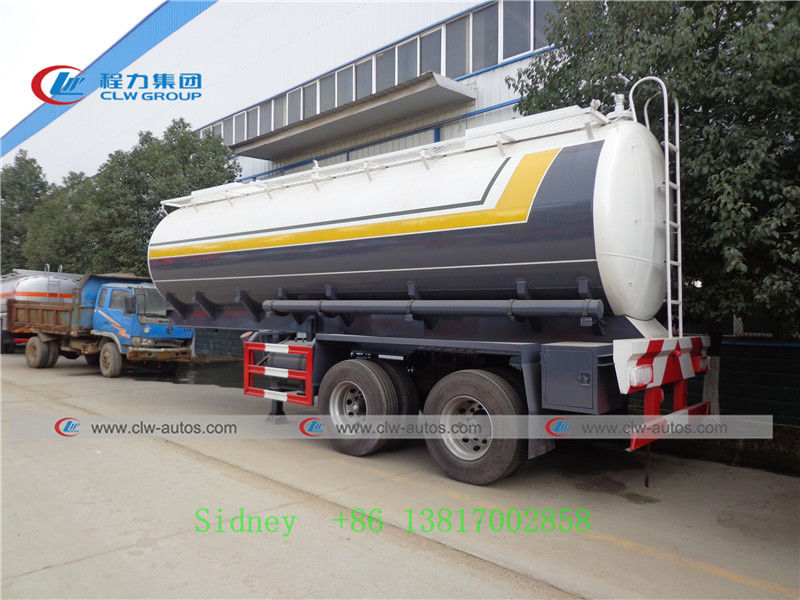

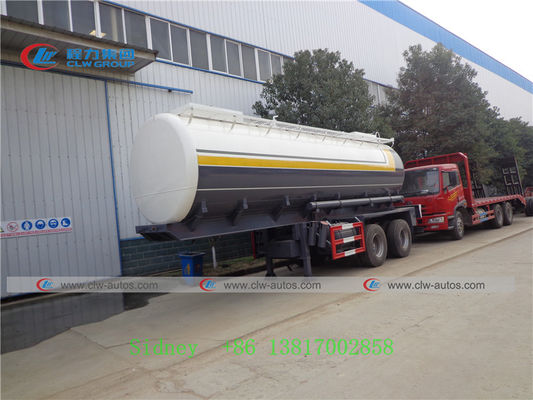

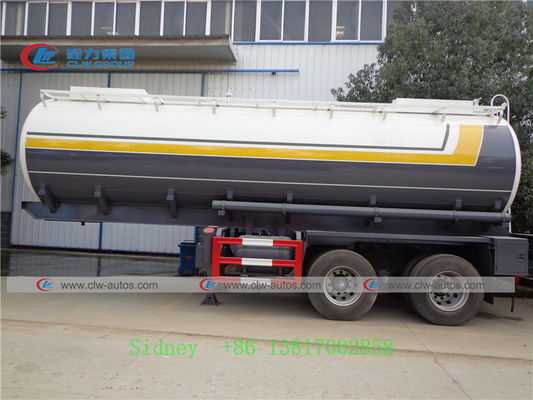

2 Axle Anti Corrosion Chemical Liquid Tanker Semi Trailer HCl Chemical Semi Trailer for Transportation
Description
1- Oil Tanker Trailers ,also called oil tanker semitrailer,fuel tank semitrailer,oil tanker trailer,
oil semitrailer,semi tanker trailer,stainless steel tanker trailer,carbon steel fuel trailer is used to deliver/transport/haulage oil,eatable oil,palm oil,maripa oil,gasoline,diesel,kerosene and so on.
2- Oil Tanker Trailerscan be designed as customer's request according to special standard request of TOTAL,vietnam,Tanzania and Zambia.
3-- Oil Tanker Trailers is optional for air bag suspension,front axle lifting.
4- Nice shape and rational structure.
5- High class running system and tank material.
6-- high-intensity kingpin and landing legs.
7-- top gemany brand BPW axle or Chinese brand FUWA axles.
8-- Durable and long term service life.
Specification
| Capacity (CBM) | 18CBM 20CBM 22CBM 24CBM 25CBM 26CBM 28CBM 30CBM |
| Chassis Frame | Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. |
| Overall dimension | 8500*2500*3500mm |
| Tank size | 8300*2450*1650mm |
| Suspension | Mechanical suspension |
| King Pin | JOST/FUWA |
| Landing Leg | JOST/FUWA |
| Axle Brand | FUWA/BPW |
| Tires | 11R22.5--- 9 nos (8+1 spare) |
| Brake System | Dual Lines Braking System With WABCO RE 6 relay valve; T30/30 Spring brake chamber; 40L air tanks |
| Electrical | 24V, 7 core socket |
| Tank | V shape with dished ends |
| Compartment | Single compartment |
| Filling Medium | 98% H2SO4( Sulfuric Acid) |
| Connections | Customized design |
| Accessories | Standard configure |
Reference Photos
Parts of Chemical tank/trailer
Factory Overview
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of fuel tank trailer I can order from your company?
A: We can supply various sizes of fuel tank trailer from30-50tons,etc.
Q2: What's the material of your fuel tanker?
A: We usually provide carbon steel, stainless steel, and aluminium materials for customer choice.
Q3: What is your production standard of fuel tank trailer? Whether your fuel tank trailer export to USA, Canada and Europen countries?
A: Our fuel tank trailer is produced as per China GB local standard; We can export super structure to those market, we ever exported fuel tank trailer super structure to Europen countries before.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
