Sinotruk Howo 8X4 336HP 24cbm 30cbm Fuel Tanker Truck

China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
China HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD certification
I'm Online Chat Now

Sinotruk Howo 8X4 336HP 24cbm 30cbm Fuel Tanker Truck

Sinotruk Howo 8X4 336HP 24cbm 30cbm Fuel Tanker Truck
Sinotruk Howo 8X4 336HP 24cbm 30cbm Fuel Tanker Truck Sinotruk Howo 8X4 336HP 24cbm 30cbm Fuel Tanker Truck Sinotruk Howo 8X4 336HP 24cbm 30cbm Fuel Tanker Truck Sinotruk Howo 8X4 336HP 24cbm 30cbm Fuel Tanker Truck Sinotruk Howo 8X4 336HP 24cbm 30cbm Fuel Tanker Truck Sinotruk Howo 8X4 336HP 24cbm 30cbm Fuel Tanker Truck Sinotruk Howo 8X4 336HP 24cbm 30cbm Fuel Tanker Truck

Large Image :  Sinotruk Howo 8X4 336HP 24cbm 30cbm Fuel Tanker Truck

Product Details:

Place of Origin: Suizhou,China
Brand Name: CLW
Certification: ISO, CCC
Model Number: clw5312gx43

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: 12250-48620USD/UNIT
Packaging Details: Naked package shipped by bulk ship
Delivery Time: 30 days after received advance payments
Payment Terms: L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability: 300units/month
Detailed Product Description
Truck Brand: Shacman,Sinotruk Howo,CAMC,FAW,ISUZU Fuel Truck Drive Model: 4x2, 6x4, 8x4, 6*4, 4*2,8*4 Fuel Truck
Tank Volume: 25000liters,25000L,30000L,30000liters,35000Liters Fuel Truck Fuel Type: Diesel/gasoline/oil
Condition: New Transmission Type: 10 Speed Forward And 2-reverse
Horsepower: 336hp,371hp Tank Material: Carbon Steel, Q235 Carbon Steel/ Stainless Steel, Carbon Steel/stainess Steel/aluminum Alloy, Aluminum Alloy, Aluminum 5083
Product Name: Fuel Tanker Truck, Fuel Delivery Truck,Fuel Tank Truck,howo Fuel Truck Emission Standard: Euro2/3/4/5
Wheelbase: 1800+4600+1350
High Light:

30cbm Fuel Tanker Truck

,

24cbm Fuel Tanker Truck

,

Sinotruk Howo Diesel Transport Truck

Sinotruk HOWO 8X4 336HP 24cbm 30cbm Fuel Tanker Truck Diesel Transport Truck


Description:
1. Tank material: we can provide carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum tanks, steel with plastic (or rubber) tanks and plastic tanks.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.



Specifications

General Technical Parameters
Overall Dimension 11984×2500×3280(mm) Gross Vehicle Weight 50000(kg)
Curb Weight 14500(kg) Loading Weight 35500(kg)
Chassis Specification
Chassis Parameters Chassis Brand SINOTRUK HOWO
Cabin Row and half, Left Hand Driving
Engine Power 336HP
Emission standard EURO II
Displacement 9.726L
Fuel type Diesel
Gearbox 10 Forward & 2 Reverse Gear
Front and Rear Axle load 9T/16T
Wheel Base 1800+4600+1350(mm)
Brake System Pneumatic
Steering Gear Power Assistant
Tire 12.00R20, 12 Pieces
Maximum speed 80(km/h)
Tank Body
Shape Monoblock Cylinder
Total Volume(m3) 24-30m3
Tanker Body Material 5mm carbon steel
Manhole Cover ∮500mm ,1 set with 1 breather valve
Bottom Valve 1 set
Discharging Valve 1 set ∮80mm discharging valve
Painting Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
Accessories One standard tool box

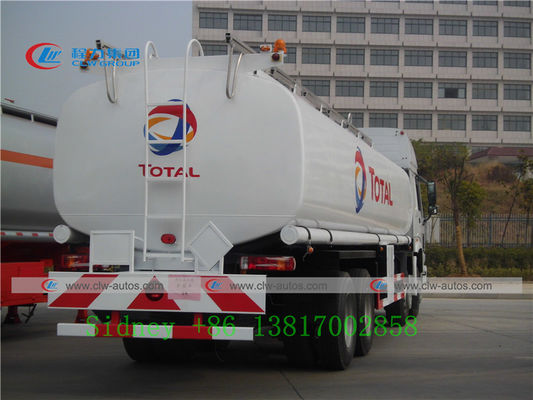

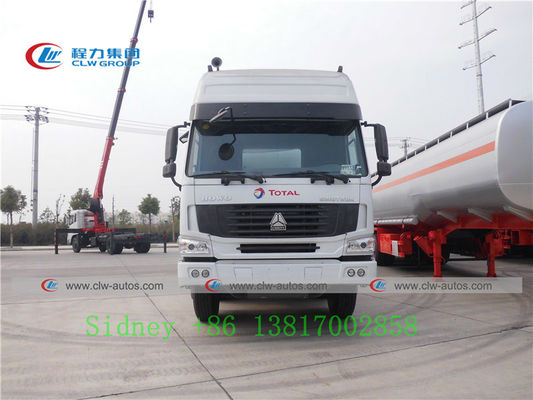

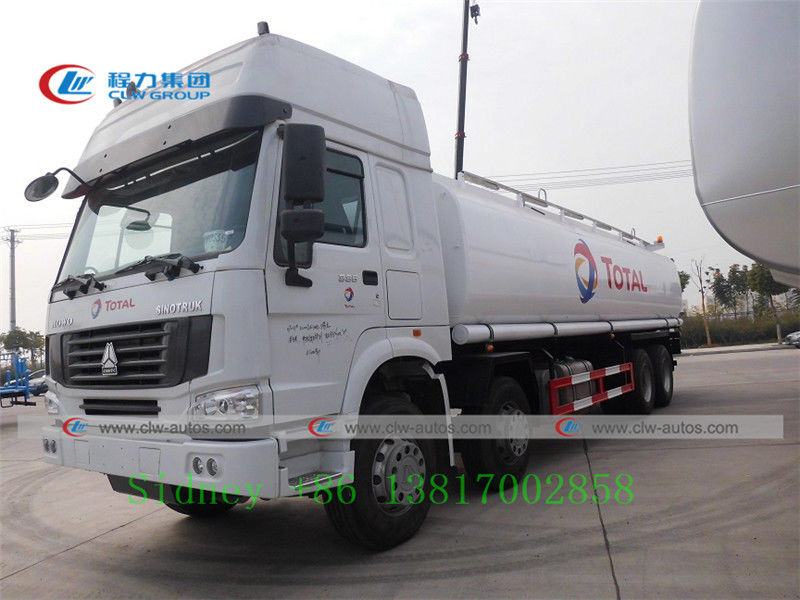

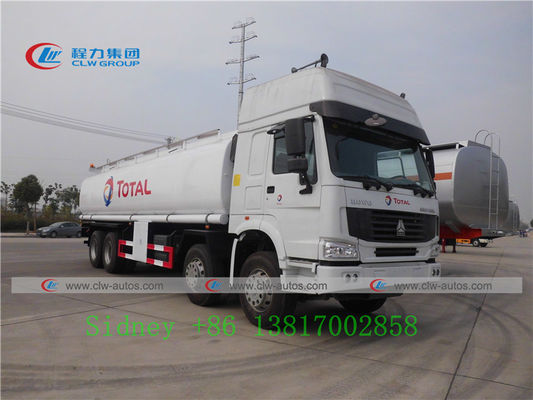

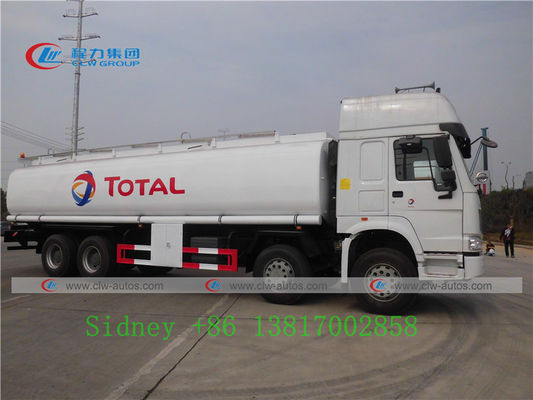

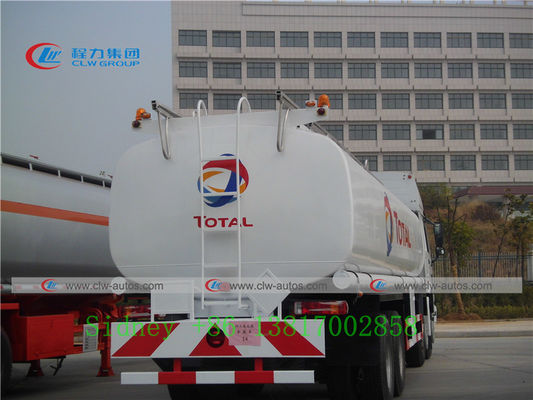

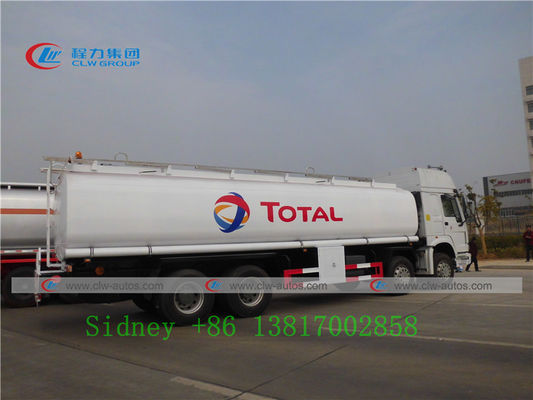

Reference pictures

Sinotruk Howo 8X4 336HP 24cbm 30cbm Fuel Tanker Truck 0Sinotruk Howo 8X4 336HP 24cbm 30cbm Fuel Tanker Truck 1Sinotruk Howo 8X4 336HP 24cbm 30cbm Fuel Tanker Truck 2Sinotruk Howo 8X4 336HP 24cbm 30cbm Fuel Tanker Truck 3Sinotruk Howo 8X4 336HP 24cbm 30cbm Fuel Tanker Truck 4Sinotruk Howo 8X4 336HP 24cbm 30cbm Fuel Tanker Truck 5

Sinotruk Howo 8X4 336HP 24cbm 30cbm Fuel Tanker Truck 6



Sinotruk Howo 8X4 336HP 24cbm 30cbm Fuel Tanker Truck 7



Sinotruk Howo 8X4 336HP 24cbm 30cbm Fuel Tanker Truck 8

Sinotruk Howo 8X4 336HP 24cbm 30cbm Fuel Tanker Truck 9

Sinotruk Howo 8X4 336HP 24cbm 30cbm Fuel Tanker Truck 10



Customer visiting

Sinotruk Howo 8X4 336HP 24cbm 30cbm Fuel Tanker Truck 11
