Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | Dongfeng Foton HOWO FAW Isuzu, Etc | Drive Type: | 8X4, 12Wheels |
|---|---|---|---|
| Steering: | LHD,RHD | Engine: | Diesel, 310hp |
| Tank Volume: | 24500liters,24.5cbm,30cbm,30000liters | Capacity: | 20ton 20t 30ton 30t |
| Tank Material: | Stainless Steel 304-2B | Insulation Layer: | 80mm PU Foaming |
| Out Tank Material: | 2mm 201 | Internal Tank Material: | 4mm 304-2B |
| Medium Temperature Change: | Less Than Or Equal To 1degree Whtin 24hours | Manhole: | DN500mm With Food Grade Rubber |
| Logo: | Company Logo Or Any Advertisement | ||
| High Light: | 8X4 Milk Transport Truck,30cbm Milk Transport Truck,Foton Auman Milk Tanker Truck |
||
Foton Auman 8X4 20, 000liters to 30, 000liters 30cbm Fresh Milk Tank Transport Truck Milk Tanker Trucks
Function:
Milk delivery truck( also called milk tank truck, milk transport truck, milk truck, stainless steel milk tanker, road milk tanker, bulk milk collection tanker, milk tanker) is a truck that transfer milk from farm to dairy factory.
We adopt stainless steel or aluminum alloy for the tanker body; tank interior and outside are polished completely. Additional cold keeping layer could be applied to keep milk from deterioration.
Milk tank truck can be devided into many compartments to transport different types of drinkable liquid, milk, ewe's milk...Every compartments are equipped with CIP cleaning function.
Description:
1. Tank material: stainless steel 304-2B, food grade material. All pipes and valves are made of stainless steel.
2. 80mm Polyurethane foam to keep temperature to prevent milk spoilage.
3. Equipped with CIP cleaning device to clear the inner side of tank to keep it clean.
4. Support transportation medium: Milk, drinking water, cooking oil , beer , maltose, maltose, ice cream
5. Optional compartments, installation of pumps, flowmeters, etc.
Specifications:
| Product Name | Foton auman 8×4 24500 liters milk tank truck | |
| Cab | Single sleeper cab, two doors, rated passengers 2 or 3, with an A/C | |
| Volume(L/m3) | 24500L | |
|
|
Brand | Foton |
| Chassis model | BJ1312 | |
| Drive type | 8*4 | |
| Tire | 11.00 R20 with 1 spare tire | |
| Tire No. | 12+1(spare) | |
| Braking System | air brake | |
| Transmission | Manual , 9 forward and 1 reverse | |
| Engine | Model | CLW9DK310Q4 |
| Engine brand | Shanghai diesel engine co., LTD | |
| fuel type | diesel | |
| Horse Power(kw/hp) | 228kw/310hp | |
| Displacement(ml) | 8820ml | |
| Emission standard | Euro 2/3/4 | |
|
|
Overall dimension (L*W*H/mm) | 11875x2500x3720mm |
| Axles No. | 4 | |
| Curb Weight(kg) | 15270 | |
| Max speed(km/h) | 90 | |
| performance parameter | Transport medium | fresh ewe's milk, fresh cow milk, beer, juice, cold drinks, cooking oil, liquid syrup and other fresh food products |
| Tank material | the inner material is 3-4 mm thickness 304-2B edible stainless steel plate, the middle insulation layer is 50-80mm thickness polyurethane foam, the external material is 2mm thickness 304 stainless steel plate. The semi-trailer manhole polyurethane foam is 60 mm thickness. | |
| unattached warehouse | One or more | |
| Standard configuration | 1. Each warehouse has separated discharge outlet, feeding mouth and PIC cleaning device.
2. PIC cleaning device include cleaning rod (or cleaning ball),Cleaning tube (Φ 38 mm), four or more rotary cleaning nozzles. |
|

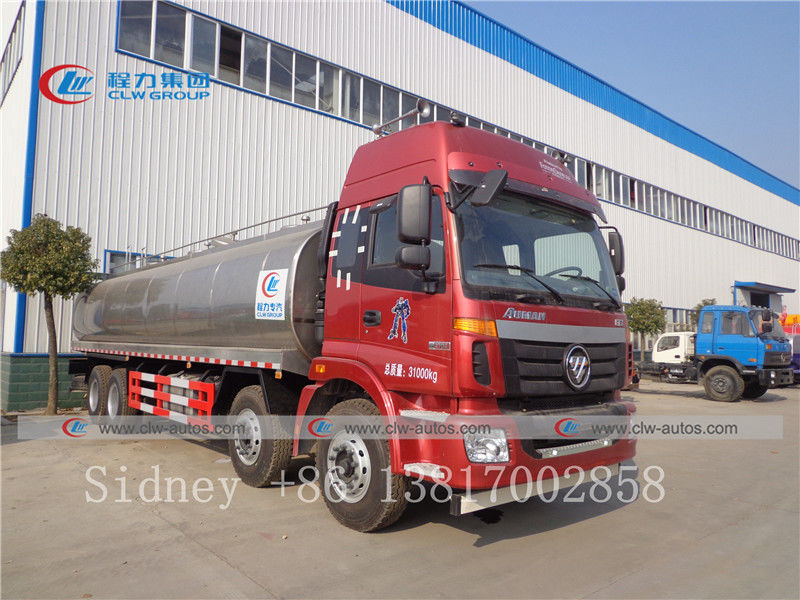

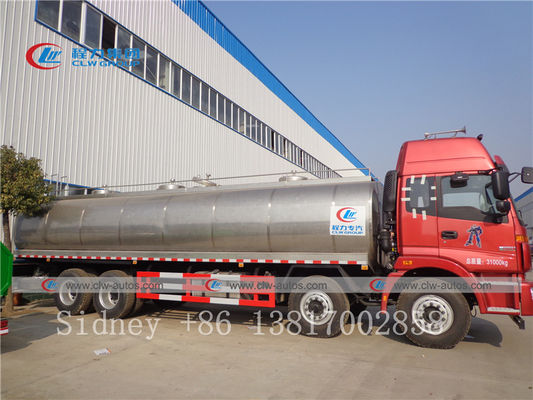

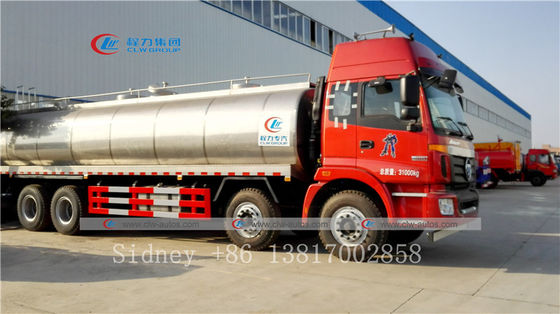

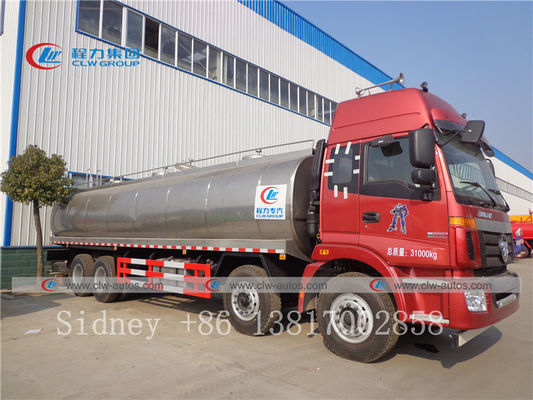

Reference Photos:

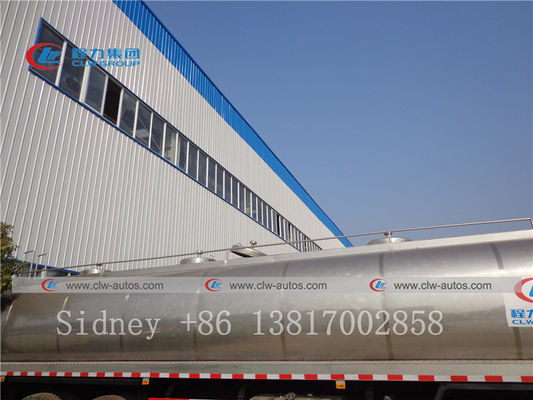

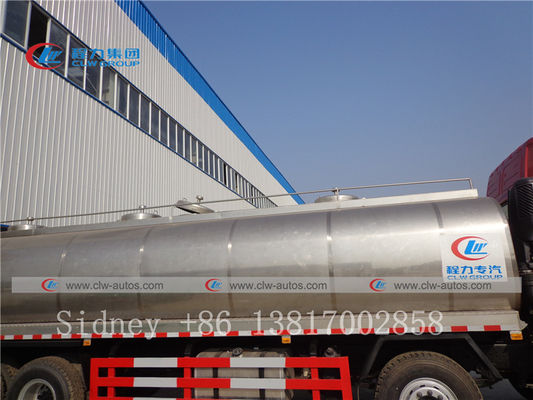

Parts photos:
Work shop:
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ:
Q1: What kinds of milk delivery truck I can order from your company?
A: We can supply various sizes of milk trucks such as 2ton,3ton,4ton,5ton,6ton to 25ton, if you need larger size, there are 2 axles and 3 axles semil trailer our.
Q2: What is your production standard of milk delivery truck? Whether your milk delivery truck or trailers export to USA, Canada and Europen countries?
A: Our milk delivery truck is produced as per China GB local standard; We can export super structure to those market, we ever exported milk delivery truck super structure to Europen countries before.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
