Product Details:
Payment & Shipping Terms:
|
| Material: | 5.0mm Carbon Steel | Tank Shape: | Square Round |
|---|---|---|---|
| Truck Brand: | FAW | Model: | XinDaWei |
| Engine: | Weichai 380HP | Gearbox: | 12 Forward & 2 Reverse |
| Gearbox Brand: | FAST | Painting: | 2 Layer |
| Tire: | 12.00R20 | Tire Quantity: | 10 Units |
| High Light: | FAW XinDaWei Mobile Refueling Truck,6600 Gallon Refueler Truck,20 Ton Refueler Truck |
||

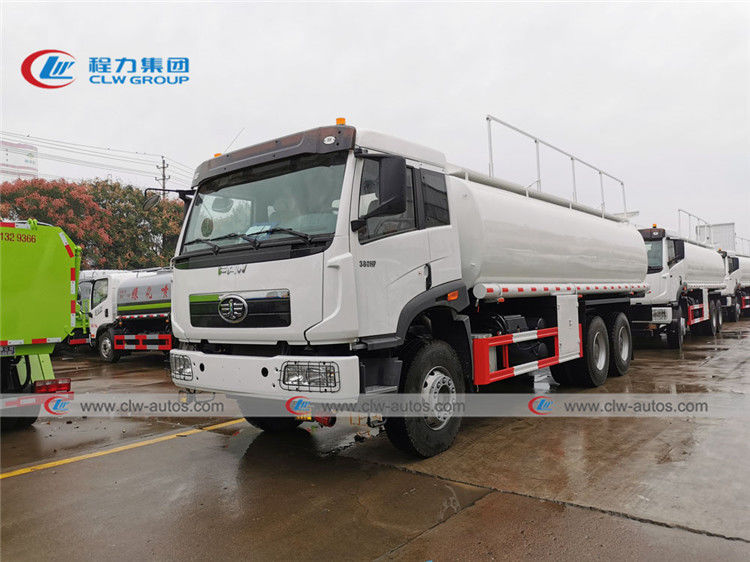

FAW XinDaWei 25000L 6600 Gal 20Ton Fuel Refilling Truck with Dispenser
Product Description
FAW 20Ton Fuel Transport Truck
Chassis:
Specifications of 20Ton FAW Fuel Dispensing Truck
| 24,000L 6x4 Oil Tank Truck | |
| Item No. | Parameters |
| Overall Dimension | 10200x2500x3600 mm |
| Gross Vehicle Weight | 25000 kg |
| Curb weight | 10870 kg |
| Loading Weight | 14000 kg |
| Wheel Base | 4600+1350 mm |
| Front/Rear Tread | 2022 / 1830 mm |
| Front Axle | 9Ton, 1x9000 kg |
| Rear Axle |
16Ton, Heavy Reduction Drive Axle, STR Hub-reduction with Differential |
| Engine | Weichai Engine 380HP, 6-cylinder in line, 4-stroke, Water-cooled, Turbo-charged & inter-cooled, Direct Injection |
| Engine horsepower | 380 HP Euro II |
| Displacement | 9.726 L(Diesel) |
|
Full loading Fuel |
Maximum 193 g/kW.h |
| Max Driving Speed | 90 km/h |
| Gear Box | FAST, 10 Forward Gear & 2 Reverse Gear, High and Low Shifting |

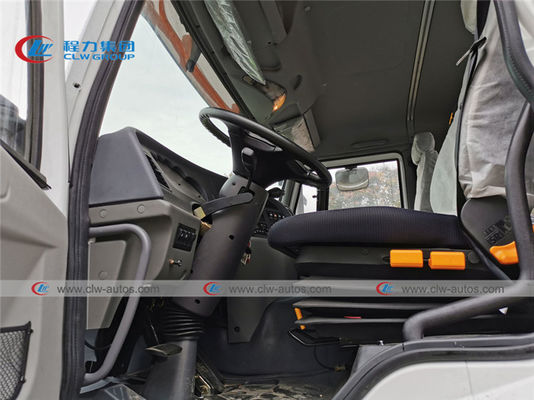

| Cabin |
XinDaWei Cabin, 2 Passenger Allowed with 1 sleeper, Left Hand Driving, |
| Tire | 11.00-20, 10 pieces with one spare tire |
| Tank Capacity | 25,000 Liters |
| Tank Material | Q235 High Tension Steel, 6mm Thick Carbon Steel, With 6 Separated Compartment, Customized Tank Color, Can also Paint Customer's Logo or Advertisement on Tank. |
| Other Equipment |
6 Ball Valves in each compartment for gravity discharging. |
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of fuel delivery truck I can order from your company?
A: There are various sizes of fuel delivery truck with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied fuel delivery truck to any overseas companies?
A: Yes,with need of cleaning cities,we offered fuel delivery truck to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
