Product Details:
Payment & Shipping Terms:
|
| Design Code: | Total Standard | Type Of Discharge Valve: | API Or French Style |
|---|---|---|---|
| No. Of Compartment: | 2 Or 3 Or 4 Or 5 Or 6 Or 7 Or 8 | Size Of Discharge Valve: | 3inch Or 4 Inch |
| No. Of Axle: | 2 Or 3 Or 4 | Axle Brand: | BPW Or Fuwa Or Hj |
| Tyre Brand: | Triangle Or Double Coin | Size Of Tire: | 12r22.5 Or 315/80r22.5 Or 385/60r22.5 |
| Air Operated Shut-off Valves: | Yes | Rear Ladder: | Yes |
| Top Safety Rail: | Yes | Level Gauge: | Optional |
| Anti-Theft Lock: | Optional | Additional Fuel Tanker: | 500liter Or 1000liter Are Optional |
| Spare Tire Rack: | Yes | ||
| High Light: | Liquid Ammonia Tanker Semi Trailer,Liquid Ammonia Tanker Semi Trailer,Q345 Mild Steel Tank Semi Trailer |
||
3 Axle 36CBM Liquid Ammonia Transport tanker Semi Trailer For Sale
Description
1- Chemical Tanker Trailers ,also called Chemical tanker semitrailer, fuel tank semitrailer, Chemical tanker trailer,
Chemical semitrailer, semi tanker trailer,stainless steel tanker trailer,carbon steel fuel trailer is used to deliver/transport chemical liquid.
2- Chemical Tanker Trailerscan be designed as customer's request according to special standard request of TOTAL,vietnam,Tanzania and Zambia.
3- Chemical Tanker Trailers is optional for air bag suspension,front axle lifting.
4- Nice shape and rational structure.
5- High class running system and tank material.
6- high-intensity kingpin and landing legs.
7- top gemany brand BPW axle or Chinese brand FUWA axles.
8- Durable and long term service life.
Specification
| 36m3 chemical tanker semi trailer | ||
| DIMENSIONS & WEIGHT | ||
| Overall Dimensions ( L * W * H ) | 11200 * 2500 * 3700 mm | |
| Volume | 36 m3 (36,000 Liters) | |
| MAX. GVW | 40000 kg | |
| Kerb weight | 10000 kg | |
| Pay load | 30000 kg | |
| Tanker | ||
| Tank Material | Mild steel Q345, inner is polyurethane epoxy, anti-corrosion. And middle is rock wool insulation. Outer is stainless steel cover plate. | |
| shape | Trapezoid shape | |
| Thickness of shell | MS 5 mm | |
| Thickness of dish | MS 6 mm | |
| Working temperature | - 20 °C to + 70 °C | |
| Compartments | The tank is divided in 1 room. Opting more | |
| Manhole | 2 sets of DN500 mm / SS304, with breathe valve | |
| Unloading valve | 2 sets of DN80 fixed at bottom of tank | |
| Pipeline at bottom of tank | 4" seamless steel tube Q345 | |
| Labeling system | Oil type indication | |
| Anti-static electricity | Pulling, wire carrier, sheet copper (6 sheet standard layout) | |
| Running Gear | ||
| Axle | FUWA 3-pcs * 13 T axles, double wheel. | |
| Tire & Rim | 12-pcs * 11.00R22.5 tyres (opting different brand tire) 12-pcs * 8.25R22.5 rim (opting steel rim or aluminum alloy rim ) |
|
| Suspension | Mechanical suspension (opting air suspension) | |
| King pin | JOST C200 2.0" 50 # kingpin (50#) opting, 3.5" ( 90 # ) | |
| Landing legs | 1 pair . JOST | |
| Air tank | 2 set | |
| Spring brake chamber | 2-pcs T3030, 2-pc T30 | |
| Air connector | 1 set stander air connector | |
| Valve | 1 pc WABCO ABS | |
| Electrical system | Complete electrical system with 7 socked . 24 V. One set of LED standard lambs; One set of standard cable. |
|
| Painting |
One primer +final painting
|
|

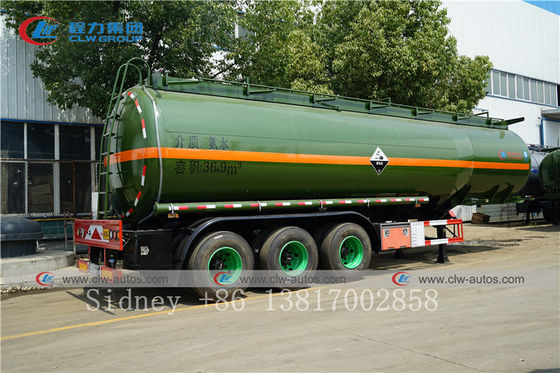

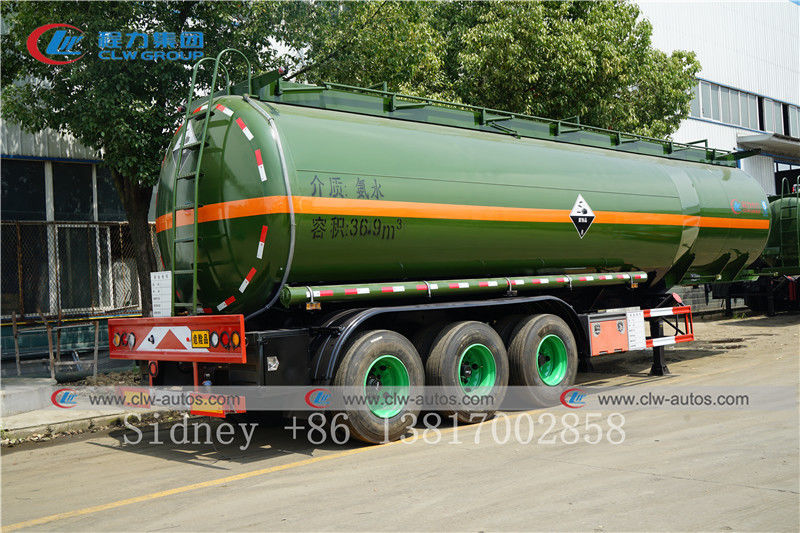

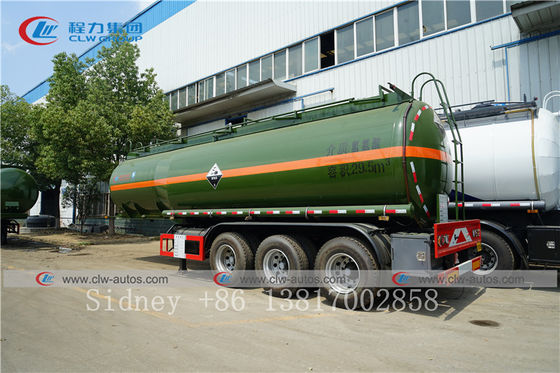

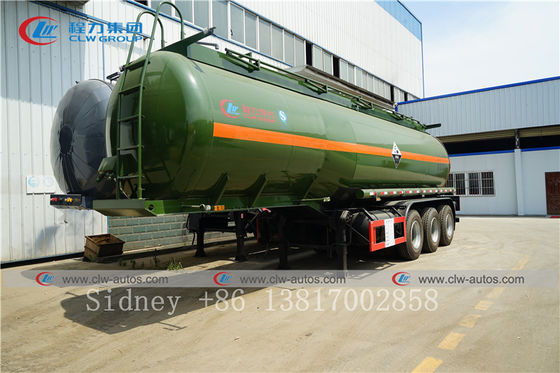

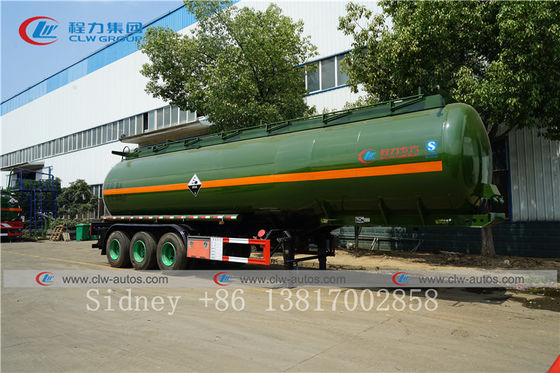

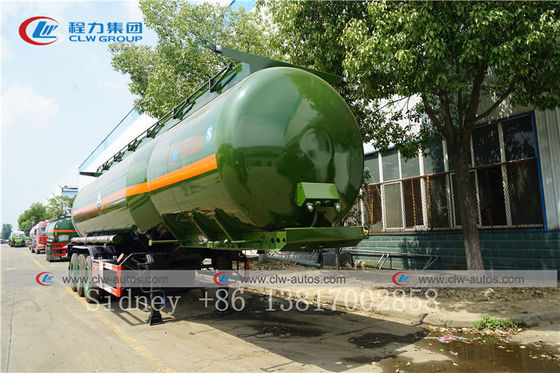

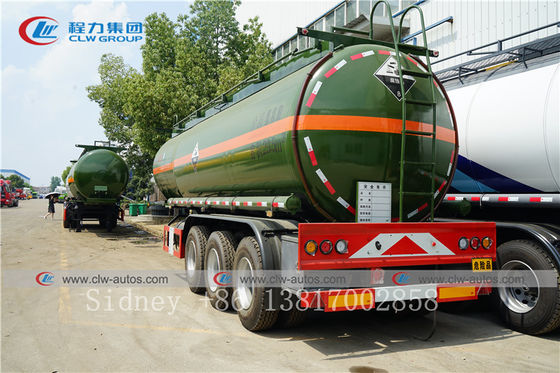

Reference Photos
Parts of Chemical tank/trailer
Factory Overview
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of fuel tank trailer I can order from your company?
A: We can supply various sizes of fuel tank trailer from30-50tons,etc.
Q2: What's the material of your fuel tanker?
A: We usually provide carbon steel, stainless steel, and aluminium materials for customer choice.
Q3: What is your production standard of fuel tank trailer? Whether your fuel tank trailer export to USA, Canada and Europen countries?
A: Our fuel tank trailer is produced as per China GB local standard; We can export super structure to those market, we ever exported fuel tank trailer super structure to Europen countries before.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
