Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch(mm): | 4mm, 5mm, 6mm, 8mm; P4 P5 P6 P8 | Screen Size: | 4㎡,5㎡,6㎡,7㎡,8㎡,9㎡,10㎡,12㎡ As Per Chassis Size |
|---|---|---|---|
| Control Mode: | VGA Synchronous | Type: | One Side Screen, Two Sides Screen, Three Sides Screen |
| Picture Tube Chip Color: | Full Color And Monochrome | Drive Model: | 4x2/6 Wheels/4*2 |
| Wheelbase(mm): | 2300mm 2800mm 3300mm 3360mm 3400mm 3800mm 4500mm 4700mm 5600mm | Color: | White; Blue; Green; Yellow; Customized |
| High Light: | RHD LED Billboard Truck,4X2 LED Billboard Truck,Foton Digital Billboard Truck |
||
Foton 4x2 RHD LED Billboard truck with mobile stage for roadshow
Description
LED Advertising Truck is also called mobile advertising truck, mobile LED screen truck, truck mobile advertising led display, LED truck,etc.The mobile LED truck consists of chassis, LED screen, light box, generator, PC controller, loudspeaker, etc. It is mainly used to display the advertising across the city for supermarket, government, large company, etc.
As a professional and leading led truck manufacturer in China, our mobile led trucks have more advantages than others:
1. P3, P4, P5 and P6 full color led screen for optional, meet all customer's requirements.
2. Side screen can be lifted 1.5m for stage performance,good visual effect
3. Double color scrolling marquee on the rear door.
4. Equipped with high quality play devices. perfect listening effect.
5. Super-silent generator, save electricity, environmental protection
6. Luxury wood floor with plastic flooring
Specification
| Drive model | 4x2,RHD (LHD is optional) | |
| Chassis | Curb Weight(kg) | 2820 |
| Loading Capacity(kg) | 4345 | |
| Approach/Departure angle(°) | 21/17 | |
| Overall Dimensions(L x W x H)(mm) | 5995×2020x2350 | |
| Wheel Base(mm) | 3360 | |
| Overhang (front/rear) (mm) | 1150/1485 | |
| Wheel Track (front/rear) (mm) | 1545/1525 | |
| Max. Driving Speed(km/h) | 90 | |
| Engine | Type | CY4102-CE4F |
| Fuel | Diesel | |
| MAX Power(HP) | 99 | |
| Emission standard | Euro IV | |
| Cylinder Number | 4 | |
| Displacement(L) | 3.856L | |
| Gear Box | Type | 5 shift |
| Suspension | Leaf Spring | 4/6+7 |
| Tire | Type | 6.50-16 |
| Upper structure | ||
| Cargo Box | 3840*1790*2000 mm | |
| Engine of the LED screen and stage | Omar Silent diesel generator ,15kw | |
| Material of LED screen | Both left and right side P8 LED outdoor full color display screen, size 3840*1792mm It can be movable in one side. | |
| Other details of LED system | 1. side two waterproof shockproof screens, rear side Monochrome screen. | |
| 2. External power socket. | ||
| 3. Omar Silent diesel generator set. | ||
| 4. One set industrial computer with control system, sound system. | ||
| 5. Waterproof box 4pcs, amplifier 1pc, Control Panel 1pc. | ||
| 6. Waterproof aluminum checkered plate floor. | ||
| 7. Circulating ventilation and cooling systems | ||

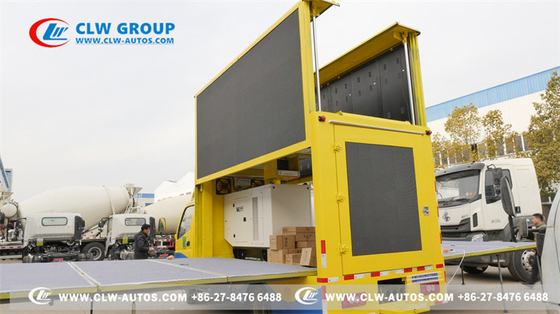

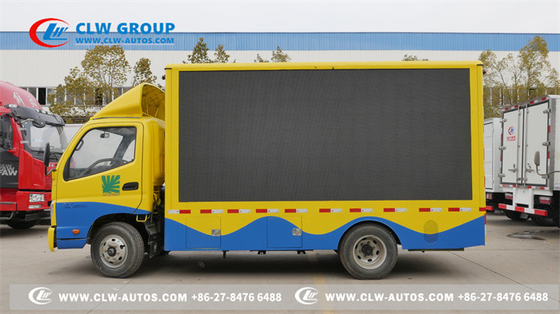

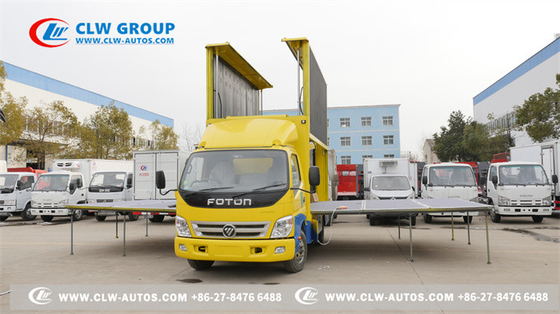

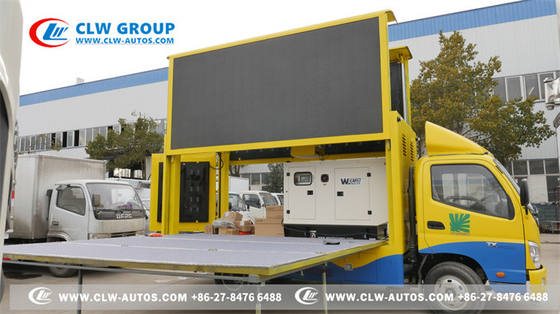

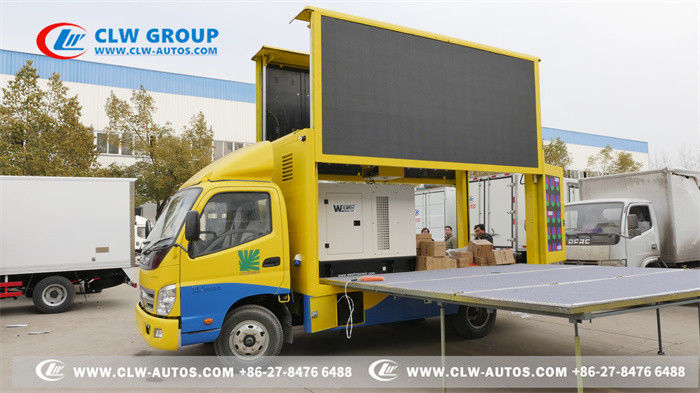

Reference photos
Product diagram
Our Service
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of Mobile Billboard LED Advertising Truck products I can order from your company?
A: We can supply all kinds of Mobile Billboard LED Advertising Truck, Mobile stage truck, Mobile stage truck with LED screen, LED advertising trailer, Mobile stage trailer, Mobile stage trailer with LED screen and LED bus etc.
Q2: What is your production standard of Mobile Billboard LED Advertising Truck products? Whether your Mobile Advertisement Truck can export to USA, Canada and Europen countries?
A: Our CBU LED screen billboard truck is produced as per China GB local standard, but the LED screen and other mian products have CE certificate; We can't export CBU Mobile Advertisement Truck to those countries, but we can export super structure to those market, we exported 30 units LED truck super structure to USA market at the beginning of 2018.
Q3: Have you supplied to Mobile Billboard LED Advertising Truck any renowned companies?
A: Our group company is a regular strategic partner of some big advertising company and mobile cellphone company. We have supplied many different type Mobile Advertisement Truck for them with different chassis brand. Eg: China biggest cellphone company VIVO and OPPO group is our customer and they already purchased more 300 units LED truck from us in the past 3 years.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
