Product Details:
Payment & Shipping Terms:
|
| Tank Material: | Carbon Steel | Tank Capacity(CBM): | 30CBM 32CBM 34CBM 40CBM 45CBM 50CBM |
|---|---|---|---|
| Loading Medium: | All Kinds Of Bitumen | Axle: | FUWA/L1/Germany Brand BPW |
| Axle Quantity: | 2 Axles/3 Axles | Burner: | International Brand Italy Riello |
| Thermometer: | China Local Brand/International Brand | Level Gauge: | Optional |
| High Light: | Bitumen Tank Semi Trailer,35cbm Tank Semi Trailer,35cbm Tanker Semi Trailer |
||

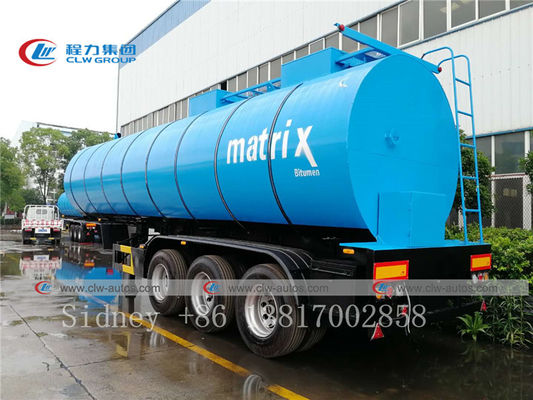

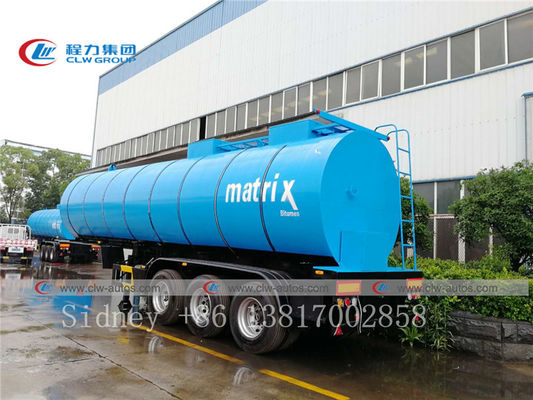

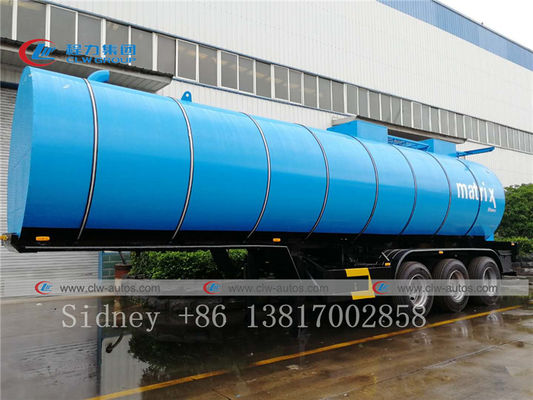

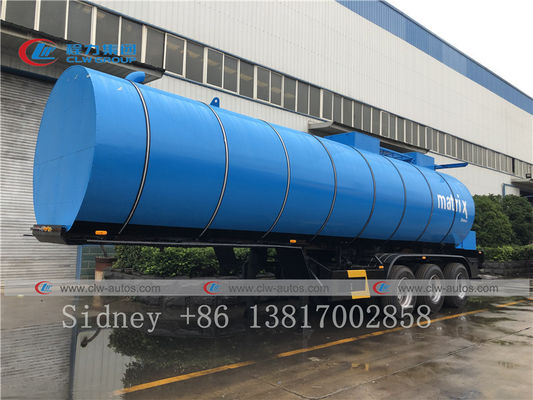

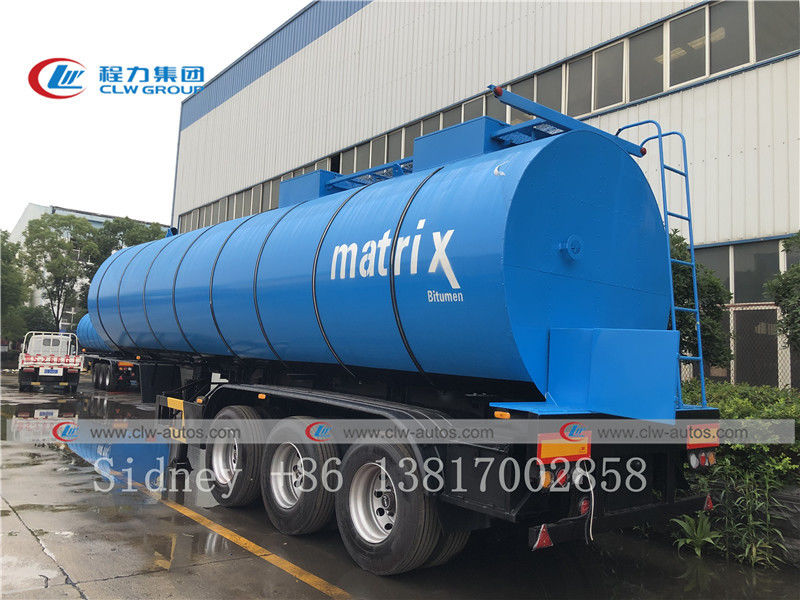

3 Axle Asphalt Bitumen Carbon Steel Tank Semi Trailer
Product Description
1. Purpose: It used for transporting heated bitumen, emulsified bitumen and modified asphalt.
2. Main parts: Burner, Thermometer, Level gauge.
Specification
| Semi Trailer Type | 3 axle Asphalt Bitumen Tank Semi Trailer |
| Function | Tanker trailer transport Asphalt Tar Pitch Bitumen |
| Overall dimension | 11500*2500*3750mm |
| Curb weight | 11700Kgs |
| Loading capacity | 35cbm/35000Litres |
| Front/rear hanging | -/1580 |
| Leaf spring | -/8/8/8 |
| Axle | 3Axles, BPW or FUWA brand 13T/16T/20T etc |
| Wheelbase | 5800+1310+1310 mm |
| Tire Specification | 11.00R20 |
| King pin | 50# or 90 # |
| ABS | Equipped |
| Nos of tire | 12+1 Pcs |
Reference photos
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
Sucessful Case
FAQ
Q1: What kinds of bitumen truck and trailer I can order from your company?
A: We can supply 4CBM to 35.5CBM Bitumen tank truck, and 34CBM to 50CBM Bitumen tank trailer, it's only for bitumen storage and transportation. We also can supply 4CBM to 35.5CBM Bitumen distribution truck and all kinds of Synchronous Chip Sealer. As for
Q2: Can we adopts International brand for the key parts of this kind of bitumen tank truck and trailer?
A: Sure. All key part of our bitumen tank truck and trailer all adopts Internation brand. Eg: We always adopts Italy brand Riello brand burner.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
