Product Details:
Payment & Shipping Terms:
|
| Capacity: | 40t,40ton,4tons,45t,45ton,45tons | Volume: | 35cbm,40cbm,45cbm |
|---|---|---|---|
| Tank Material: | Food Grade Stainless Steel | Medium: | Fresh Milk,liquid Food |
| Axle Brand: | BPW,FUWA,HJ | Suspension: | Air And Mechanical Suspension |
| High Light: | 6mm Stainless Steel Tanker Semi Trailer,5mm Stainless Steel Tanker Semi Trailer,6mm Stainless Steel Milk Transport Truck |
||

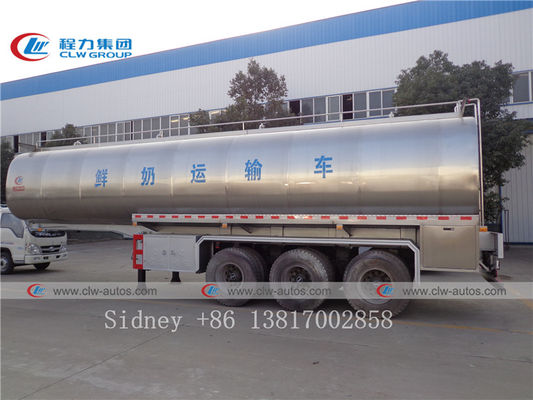

3 Axles 30,000liters to 70,000liters Stainless Steel Tanker Semi-Trailer for Milk
Description:
A stainless steel trailer can carry anything from chemicals to asphalt as well as fertilizer or food. It may cost more and be more heavier than an aluminum trailer but is often purchased because it is more durable against corrosion and thus lasts longer. More importantly, stainless steel trailers are reliable and minimize cross contamination when transporting food products.
Specification:
| Tank Body | |
| Shape | Optional(Round or Suare) |
| Dimension | 12000mm*2490mm*3990mm(Exact size depend on the final design) |
| Tare Weight | About 8000Kg-12800Kg |
| Total Volume(m3) | 30m3-70m3 |
| Tanker Body Material | 5mm or 6mm Stailess steel |
| End Plate | 5mm or 6mm/Q235 Stailess steel |
| Manhole Cover | Stailess steel API manhole cover ,500mm |
| Bottom Volume | Stailess steel API Pneumatic Bottom Valve |
| Discharging Valve | Diameter is 3 or 4 inch |
| Compartments | Optional |
| Discharging Pipe | 4" rubber hose,2 pcs,6m/each |
| Cat Walk | With (Common model or special design) |
| Chassis | |
| Main Beams | Welding design or special design I beam ,connected by bolts and nuts Q345 carbon steel material |
| Axle | 2 or 3 axles, BPW/FUWA/HUAJING brand |
| Landing Gear | JOSTD200T or China brand 28T |
| King Pin | JOST 2.00 OR 3.5 inch bolt-in king pin |
| Suspension | Mechanical suspension(Germany or American type)/air suspension |
| Leaf spring | 90(w)mm*13(Thickness0mm*10 layer or 100mm*12mm*12/without |
| Pneumatic Braking System | WABCO RE 6 relay valve;Spring brake chamber;2 pieces of 45L air tanks. |
| Rim | 9.00-22.5/8.00-20/8.5-20 China brand |
| Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be optional |
| ABS | Optional |
| Painting | Complete Chassis and blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint |
| Accessories | One standard tool lox |
| Shipping Terms | By bulk cargo ship, RORO or 40HQ container |
| 30,000L-70,000L 3-axle Tank Semi-trailer | |||
| Feature: | Carry Fuel, Oil, Diesel, Drink water, Milk, Beer and other chemical liquid | ||
| Dimension(L*W*H): |
11000*2500*3700mm(30,000L) 11700*2500*3750mm(40,000L) 12700*2500*3750mm(50,000L) 13000*2500*3750mm(60,000L) 13700*2500*3750mm(70,000L) |
||
| Material: | Carbon Steel | Stainless Steel | Aluminum |
| Compartment: | 3-7 | ||
| Capacity(kgs): | 35,000L-70,000L | ||
| Tare weight(kgs): | 11,000-12,000kgs | 10,000-11,000kgs | 6,000-7,000kgs |
| Kingpin | The world-famous JOST brand bolt-in/welded type 3.5"/2" | ||
| Landing gear | JOST brand two-speed manual operation 19" | ||
| Tire size | 11.00R20,11R22.5,12R22.5,315/80R22.5,385/65R22.5 | ||
| Rim size | 8.25*22.5,9.00*22.5,11.75*22.5 | ||
| Axle | Original BPW-12T/ FUWA-13T | ||
| Leafs spring | Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag suspension | ||
| Brake system | One unit WABCO RE 4 relay valve; four units T30/30 spring brake chamber; two units T30 spring brake chamber; two units reliable local brand 45L air tank; two units reliable local brand standard coppery air-connector. | ||
| Manhole: | Aluminum alloy ø500mm(20") manhole with aluminum alloy cover; with breather valve; | ||
| Discharge Valve | Aluminum alloy discharge valve with cover | ||
| Foot Valve | Pneumatic control DN80 aluminum alloy foot valves | ||
| Pneumatic Control system |
1set Pneumatic Control combined switch 1unit emergency switch |
||
| Discharge Hose | 2 units 3"×6M factory PVC hose with quick coupling on both ends | ||
| Vapor Recovery & Overfill system | Optional | ||
| Fire Extinguisher Carrier | 2 units at the left of rear of tanker, include 2 units 8kg dry powder type fire extinguisher inside | ||
| Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable | ||
| Prime & Topcoat painting | S.A.2.5standard sandblasting; Zinc-rich & Polyurethane painting | ||
| We can build the trailers according to customer's design and requirements | |||

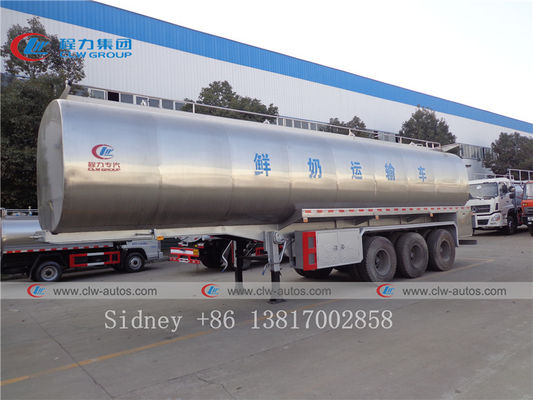

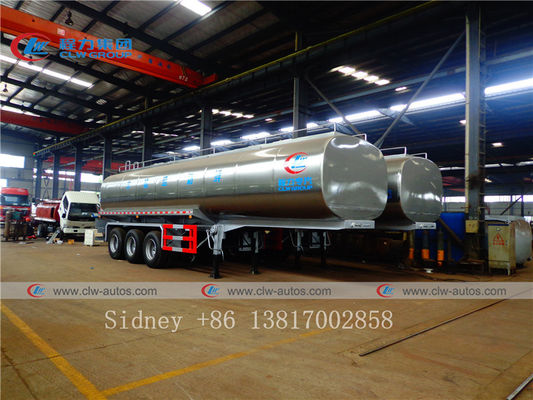

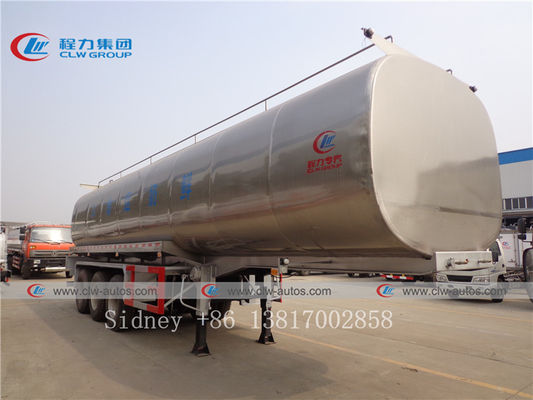

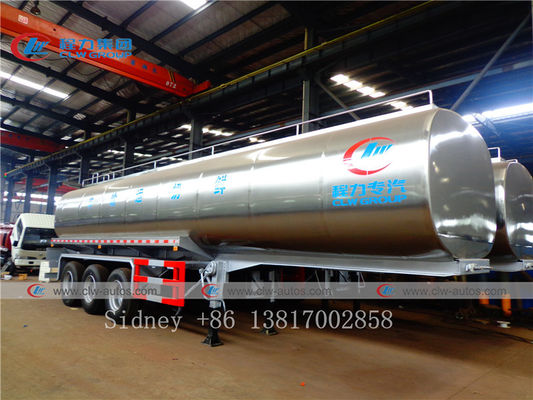

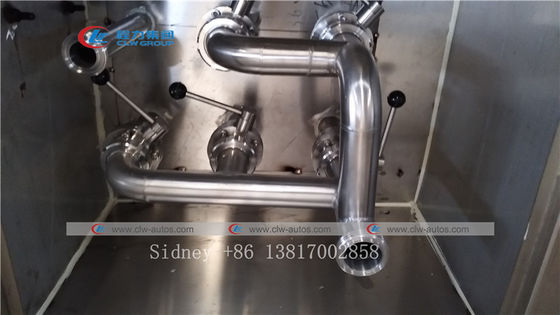

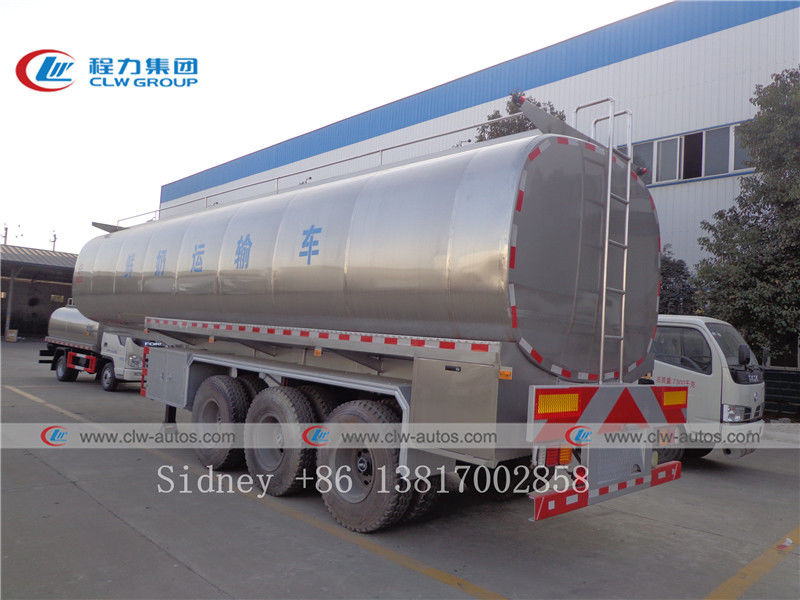

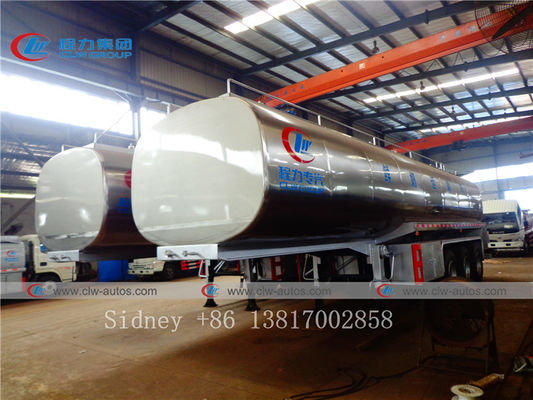

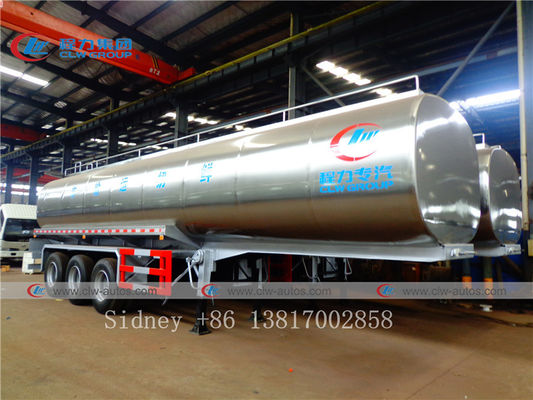

Reference Photos
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of fresh milk delivery tanker trailer I can order from your company?
A: We can supply various sizes of fresh milk delivery tanker trailer, there are 2 axles and 3 axles semil trailer for optional.
Q2: What is your production standard of fresh milk delivery tanker trailer? Whether your fresh milk delivery tanker trailer export to USA, Canada and Europen countries?
A: Our fresh milk delivery tanker trailer is produced as per China GB local standard;
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
