| Chassis Brand: | Howo, Dongfeng, Isuzu, Foton, JAC, Etc. | Gearbox: | 8 Forward & 2 Reverse Gear |
|---|---|---|---|
| Tanker Volume: | 15m3, 16m3, 17m3, 18m3, 19m3, 20m3, Etc. | Tank Material: | Carbon Steel, Stainless Steel Or Aluminum Alloy |
| Tank Shape: | Square Round, Round | Transport Oil Type: | Diesel, Petrol, Gasoline, Oil, Etc. |
| Oil Pump: | Chinese Famous Brand | Oil Dispenser: | Chinese Famous Brand |
| Hose Reel With Filling Gun: | 15 Meter (Length Can Be Longer As Per Request) | Oil Vapor Recovery System: | Optional |
| Delivery Time: | 35 Days | Color: | Customized |
| Warranty: | 1 Year | ||
| High Light: | Isuzu FTR Fuel Delivery Tank Truck,10cbm Fuel Delivery Tank Truck,LHD Fuel Dispenser Truck |
||
1. Purpose: It is used for vehicles refueling and mobile transporting Fuel/Petrol/Diesel, etc.
2. Refueling System: Oil pump, Oil dispenser machine and Hose reel with filling gun, etc.
3. Advantage: High quality with competitive price.
Specification
| Model | CLW5160 |
| Manufacturer | CLW |
| Chassis brand | ISUZU FTR |
| Driving cab | 3 seats, LHD, 4×2 |
| Volume | 10,000liter |
| Medium | Diesel |
| Overall dimension | 7980*2500*3200mm |
| Refueling machine position | In front of tank, aluminum alloy made |
| Engine |
QL 6HK1-TC50 150KW/205HP,7.25L, 6-cylinder inline, turbocharged, intercooler, water cooling,common-rail, direct injection |
| Wheelbase | 4500 |
| Curb weight | 8530Kg |
| Emission standard | Euro 5 |
| Tyre specification | 10.00-20, with one spare tire |
| Dedicated equipment |
Breathing valve, fuel outlet valve, bottom valve, aviation kerosene fuel pump, filtration sampling valve, joint valve, filter separator, flow meter, level gauge, refueling machine with refueling gun and 20m hose reel, etc. |
| Safety accessories for dangerous goods chassis | |
| Exhaust pipe | Front set, under driving cab |
| Manhole | Euro standard manhole |
| Emergency cut off valve | 1 set |
| Top fence | Top protect fence |
| Brake | Air brake |
| Conductive electrostatic reel | 1 set |
| Static conductive towing belt | 1 set |
| Fire extinguisher | two units |

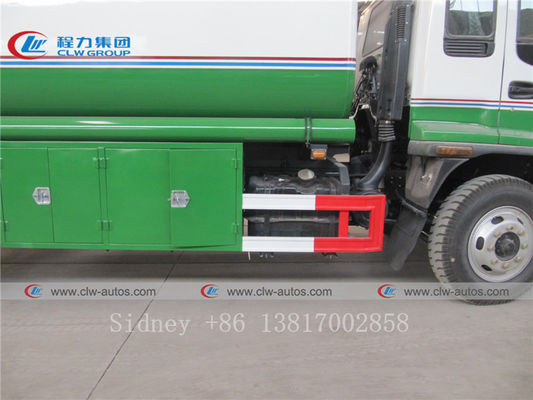

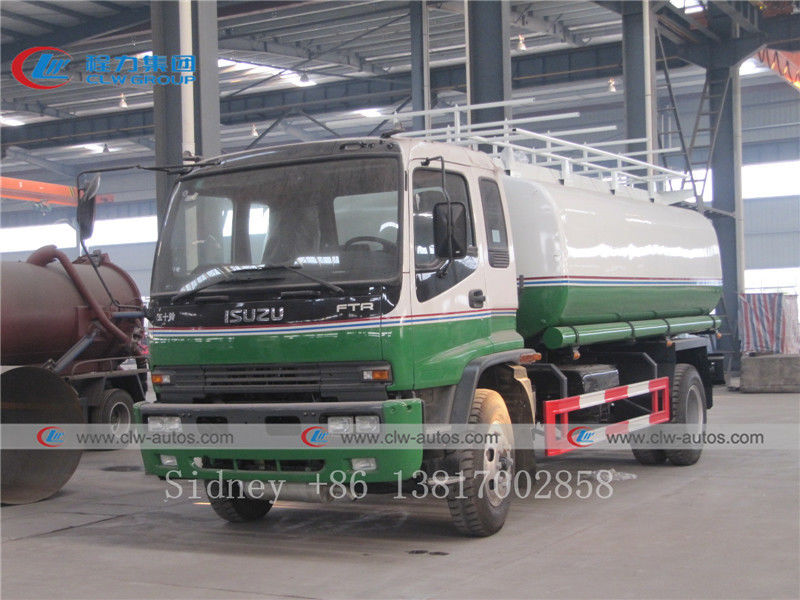

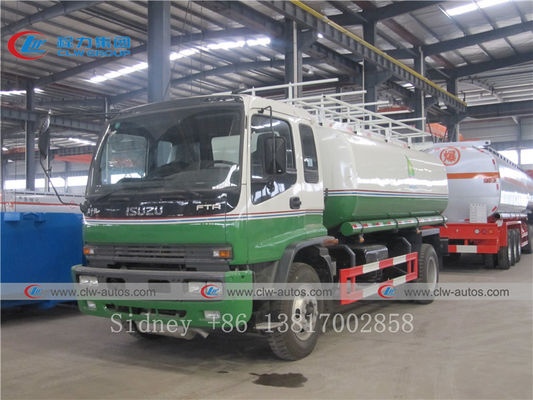

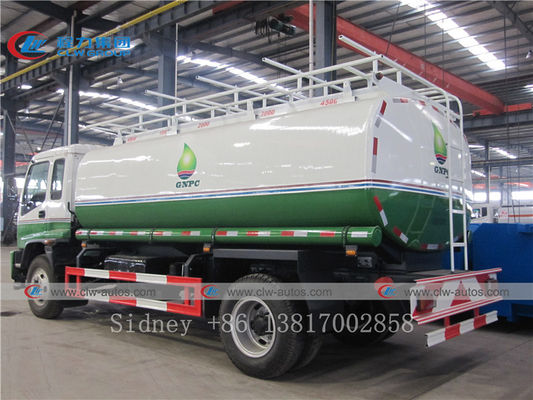

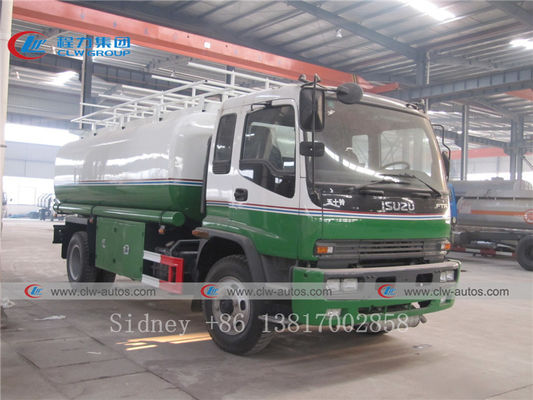

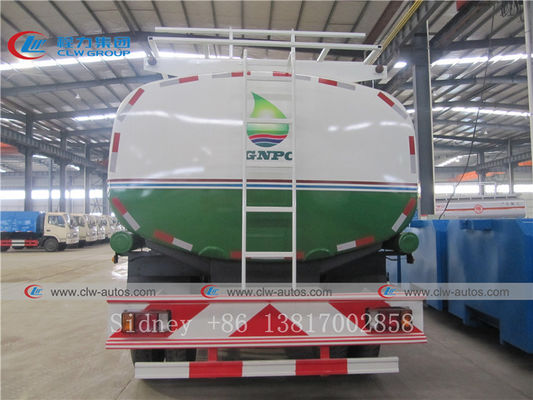

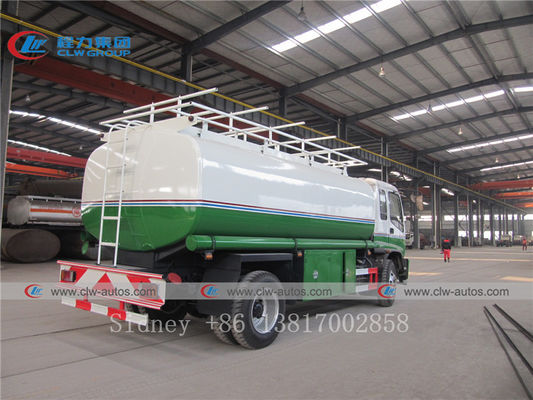

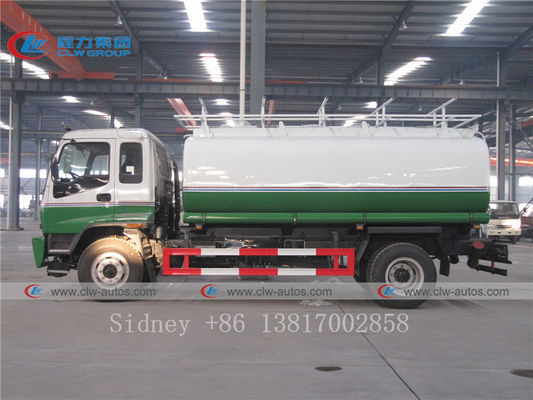

Reference Photos
Aluminum Alloy Tank Production Process
Other Kinds of Fuel Dispenser Trucks
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of Helicopter refueling truck I can order from your company?
A: We can supply different size helicopter refueling truck as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.
Q2: What is your production standard of Helicopter Refueling Truck products?
A: China GB local standard.
Q3: Can we adopts International brand fuel pump for helicopter refueling truck?
A: Sure, we already cooperated with many international brand supplier.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
