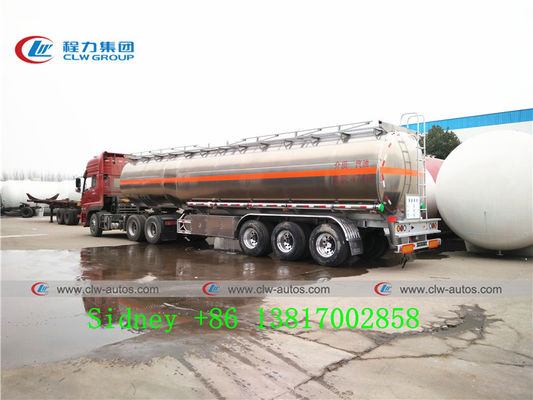

LHD RHD Tri Axle 47cbm Aluminum Alloy Diesel Tank Truck

Large Image : LHD RHD Tri Axle 47cbm Aluminum Alloy Diesel Tank Truck

Product Details:

Place of Origin:	Suizhou,China
Brand Name:	CLW
Certification:	ISO, CCC
Model Number:	CLW5445

Payment & Shipping Terms:

Minimum Order Quantity:	1 UNIT
Price:	35520 usd/unit~49660 usd/unit
Packaging Details:	Naked package shipped by bulk ship
Delivery Time:	Within 30days after received advance payments
Payment Terms:	L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability:	300units/month

Contact Now

Detailed Product Description

Truck Brand:	Dongfeng,Shacman,Sinotruk Howo,CAMC,FAW,ISUZU	Driving Model:	LHD,RHD Fuel Transport Truck
Material:	Aluminum Alloy	Loading Capacity:	47CBM Gasoline 47000Liters Petrol
Size:	1275025003900mm	Use:	Truck Trailer
Type:	Semi-Trailer	Max Payload:	40T
High Light:	47cbm Diesel Tank Truck , RHD Tri Axle Diesel Tank Truck , LHD Gasoline Tank Truck

3 axle 47 Cbm Gasoline Diesel Transport Fuel Tank Low Price Semi Trailer for Africa Market

Description

1. World's famous axle brand!--BPW and FUWA.
2. Various modes of suspension for your choice!-- air suspension, mechanical suspension, single point suspension.
3. Various kinds of tank material for your choice!-- Q235/carbon steel/CS/stainless steel/SS304/aluminium alloy.
4. European standard device available!-- oil and gas recovery device, emergency cut- off valve, anti-overflow device, overflow alarm, loading and unloading in the bottom of the tank, exhaust pipe, anti-static zipper, API valve, flow meter.

Specification

PARAMETER	Dimension(mm)	Lwh:1275025003900(mm)
	Axle space(mm)	7000mm+1310mm+1310mm
	Tare weight(kg)	6480kg
	Loading capacity	47000Liters
OEM	Landing gear	Two speed manual operation type with sand shoe
	Kingpin	2" bolted type
	Brake system	Dual line pneumatic brake system.
	Brake chamber	Type 30/30 spring brake system on all axles
	Suspension	common suspension
	Axle	BPW/FUWA axle, 13 ton capacity/set,3pcs
	Tool box	0.8 meters toolbox,one pcs aluminum alloy
	Spare tire carrier	two pcs
TANK SPECS	Compartment	One or according to your requirment
	Tank material	aluminum alloy, thickness 6mm
	Bulkhead	Thickness is 7mm
	Baffle	Thickness is 7mm
	Shape of tank	Ellipse (double "d")
OTHERS	Fire extinguisher	2 pcs
	Manhole	two manhole
	Discharge hose	6m
	Painting	Sand blasting before painting;one coats of primer, anti corrosion,two coat of finish painting;colour advised by client

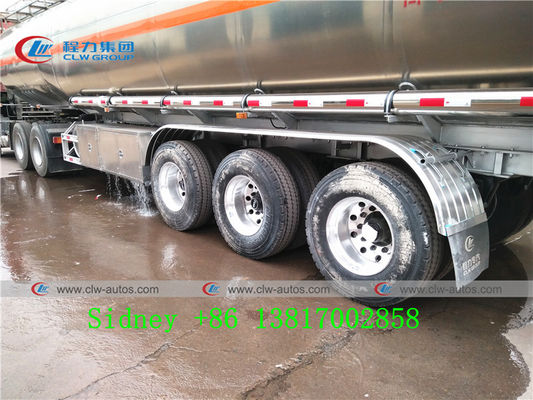

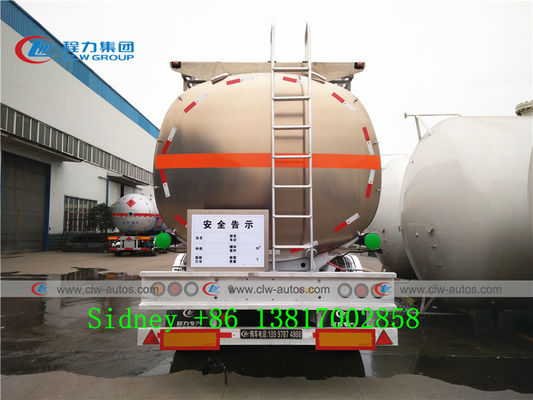

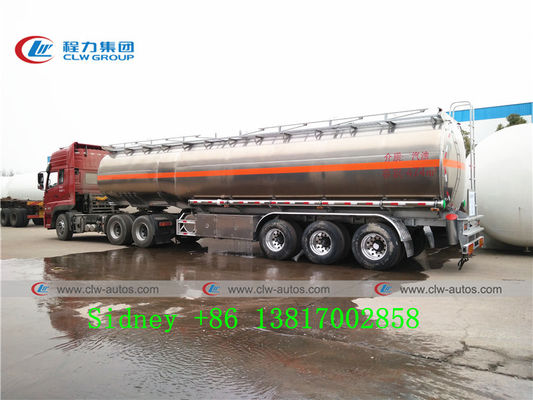

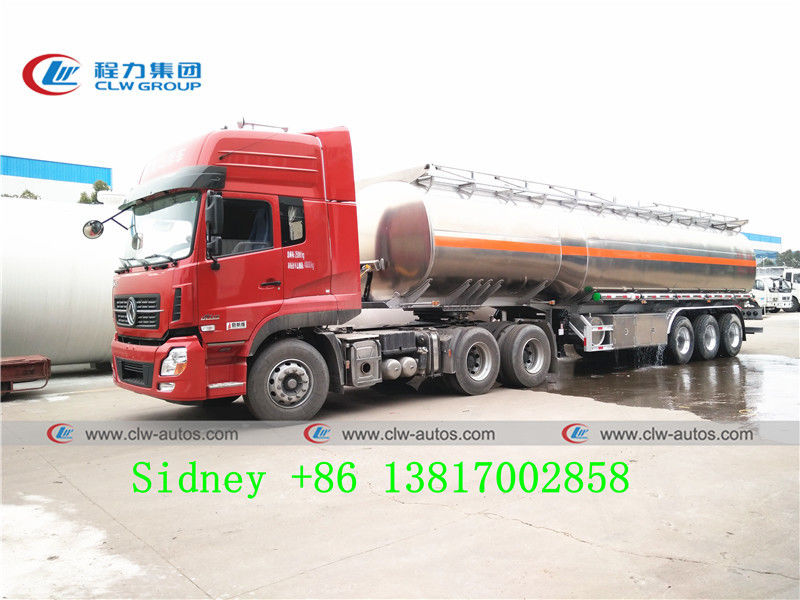

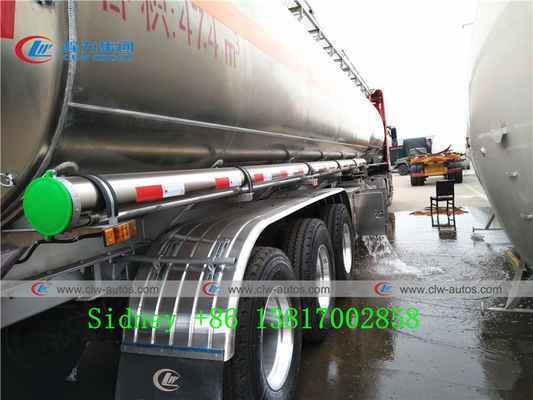

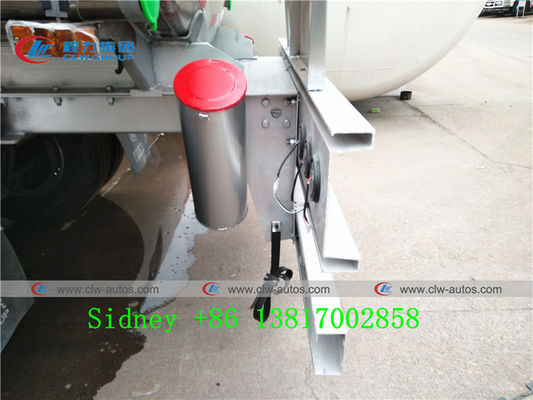

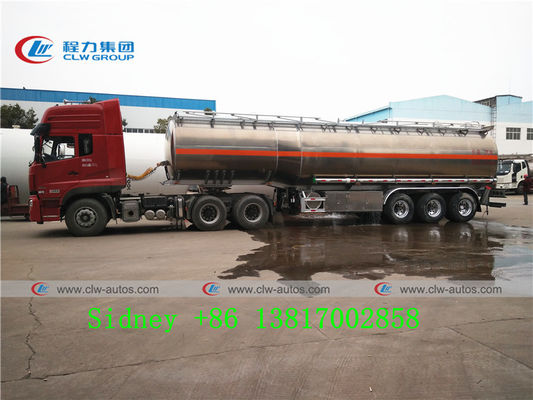

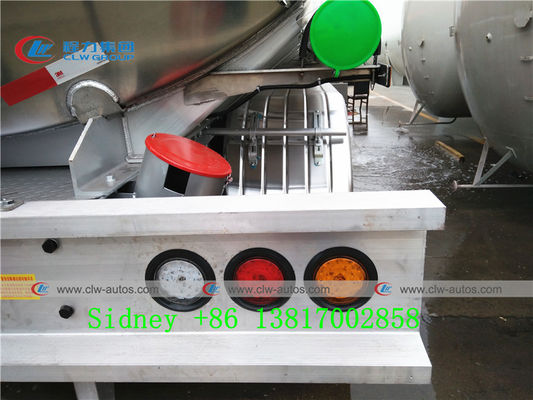

Reference photos

Trailer diagram

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What kinds of fuel tank trailer I can order from your company?

A: We can supply various sizes of fuel tank trailer from30-50tons,etc.

Q2: What's the material of your fuel tanker?

A: We usually provide carbon steel, stainless steel, and aluminium materials for customer choice.

Q3: What is your production standard of fuel tank trailer? Whether your fuel tank trailer export to USA, Canada and Europen countries?

A: Our fuel tank trailer is produced as per China GB local standard; We can export super structure to those market, we ever exported fuel tank trailer super structure to Europen countries before.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
