Product Details:
Payment & Shipping Terms:
|
| Design Code: | Total Standard | Type Of Discharge Valve: | API Or French Style |
|---|---|---|---|
| No. Of Compartment: | 2 Or 3 Or 4 Or 5 Or 6 Or 7 Or 8 | Size Of Discharge Valve: | 3inch Or 4 Inch |
| No. Of Axle: | 2 Or 3 Or 4 | Axle Brand: | BPW Or Fuwa Or Hj |
| Tyre Brand: | Triangle Or Double Coin | Size Of Tire: | 12r22.5 Or 315/80r22.5 Or 385/60r22.5 |
| Air Operated Shut-off Valves: | Yes | Rear Ladder: | Yes |
| Top Safety Rail: | Yes | Level Gauge: | Optional |
| Anti-Theft Lock: | Optional | Additional Fuel Tanker: | 500liter Or 1000liter Are Optional |
| Spare Tire Rack: | Yes | ||
| High Light: | 15000 Liters Fuel Bowser Truck,6X4 Fuel Bowser Truck,Shacman Fuel Truck Trailer |
||
Shacman 6x4 Oil Fuel Tank Truck 15000Liters Fuel Bowser with Dispenser
Description:
1. Tank material: Q235 (carbon steel) Q304 ( stainless steel) Q316 (stainless steel) 5454 Aluminum.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
Specifications:
| Truck Type | 6*4 Oil Tank Truck | |
| Truck Brand | Shacman | |
| Driving Type | Left OR Right Hand Driving | |
| Dimension(Lx W x H)(mm) | 10184x2500x3050 | |
| Approaching angle/Departure angle(°) | 16/10 | |
| Overhang(front/rear) (mm) | 1500/3109 | |
| Tank capacity( m3 ) | 15 m³ 15000Liters | |
| Gear oil pump | Model | 76YCB-40(F) |
| flux m3/h | 40 | |
| In /out cabiber mm | 76 | |
| RPM r/min | 960 | |
| Remarks: oil pump model with F, represent relief valve, used for oil tanker truck with oil gun. | ||
| Wheel base (mm) | 5225+1350 | |
| Max speed(km/h) | 90 | |
| Curb weight(kg) | 11670 | |
| Total weight(kg) | 25000 | |
| Engine | Model |
WD615.97C,water-cooled,four strokes, 6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection |
| Fuel type | Diesel | |
| Horse Power | 300hp | |
| Emission | EURO 4 | |
| Fuel tanker capacity(L) | 300 | |
| Transmission | Model |
HW13710 10 forwards and 2 reverse |
| Brake system | Service brake | Dual circuit compressed air brake |
| Parking brake |
spring energy, compressed air operating on rear wheels |
|
| Auxiliary brake | Engine exhaust brake | |
| Steering system | Model |
ZF8098,hydraulic steering with power Assistance Ratio:22.2-26.2 |
| Front axle |
HF7 disc brake, Steering with double T-cross section beam Loading capacity: 7000kg |
|
| Rear axle |
HW1279, Pressed axle housing, central double reduction with differential locks between axles and wheels Loading capacity: 12000kg |
|
| Color | Optional | |
| Chassis |
Frame: U-profile parallel ladder frame with section of 300*80*8mm and reinforced sub frame all cold riveted cross member Front suspension: semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: semi -elliptic leaf spring and bogie springs |
|
| Tire | 12.00-20, Bias tire | |
| Tire quantity | 10+1 spare | |
| Electrical system | Battery | 2X12V/165Ah |
| Alternator | 28V-1500kw | |
| Starter | 7.5Kw/24V | |
| Cab |
with one sleeper and air-conditioner, all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers |
|

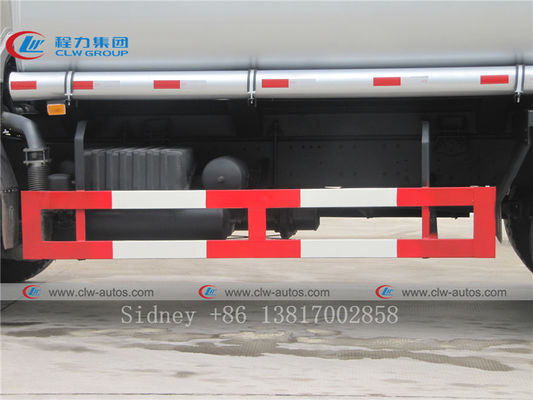

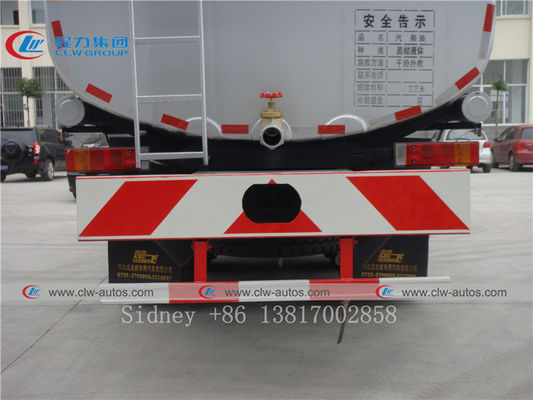

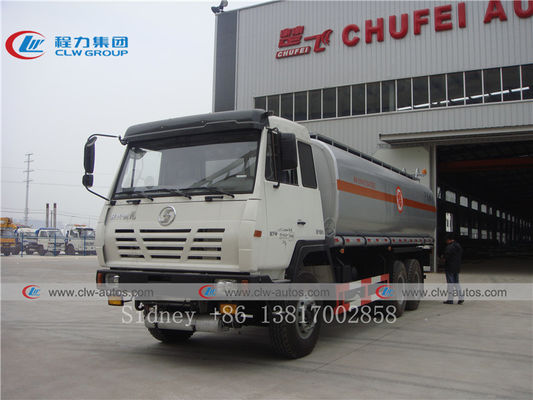

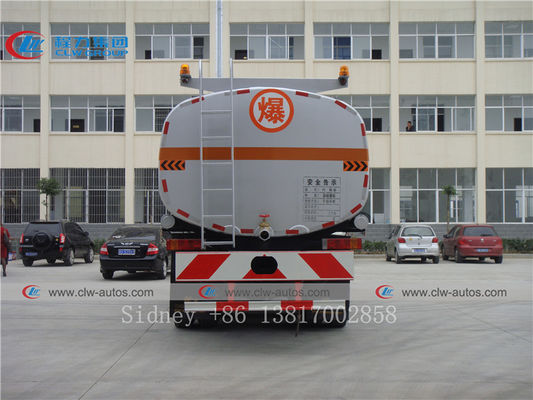

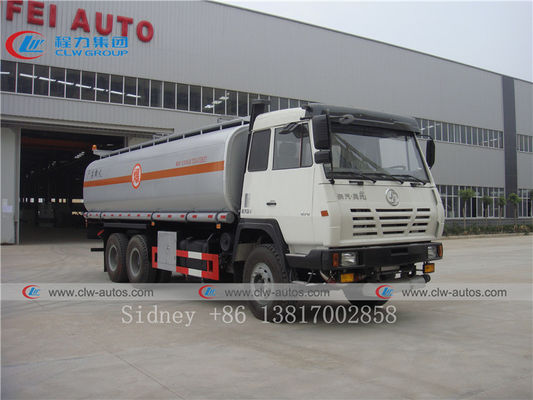

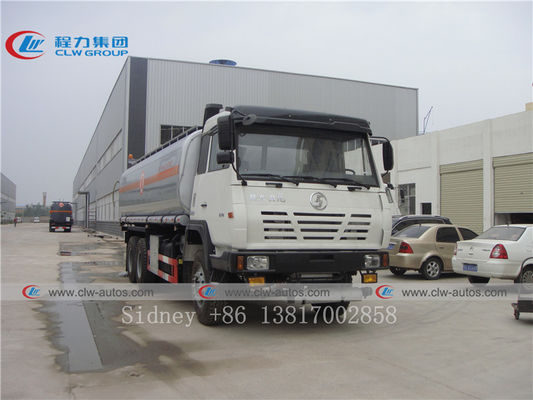

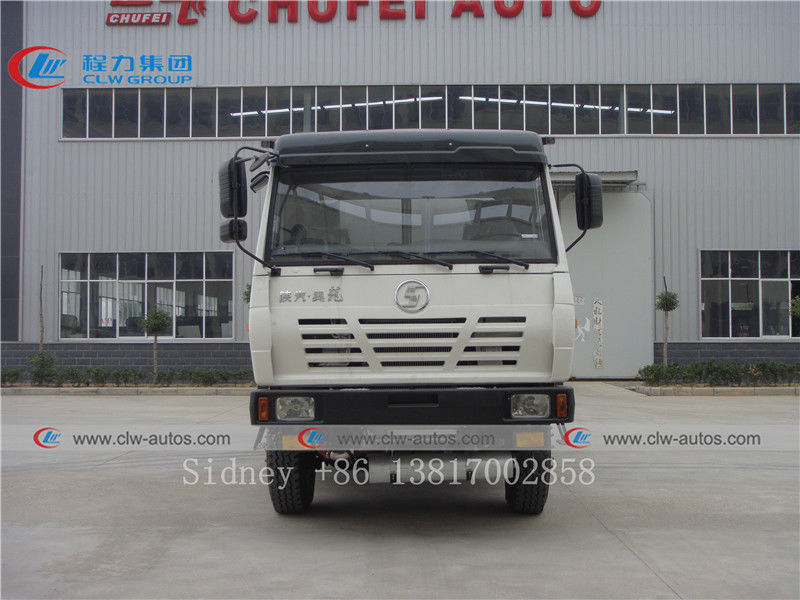

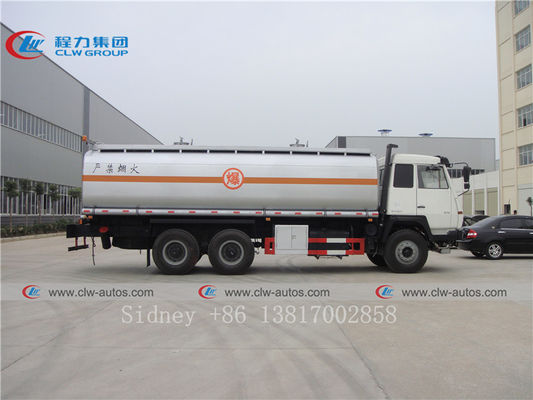

Reference Photos
Parts of fuel tank
Factory Overview
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of fuel tank trailer I can order from your company?
A: We can supply various sizes of fuel tank trailer from30-50tons,etc.
Q2: What's the material of your fuel tanker?
A: We usually provide carbon steel, stainless steel, and aluminium materials for customer choice.
Q3: What is your production standard of fuel tank trailer? Whether your fuel tank trailer export to USA, Canada and Europen countries?
A: Our fuel tank trailer is produced as per China GB local standard; We can export super structure to those market, we ever exported fuel tank trailer super structure to Europen countries before.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
