Product Details:
Payment & Shipping Terms:
|
| Capacity: | 40t,40ton,4tons,45t,45ton,45tons | Volume: | 35cbm,40cbm,45cbm |
|---|---|---|---|
| Tank Material: | Food Grade Stainless Steel | Medium: | Fresh Milk,liquid Food |
| Axle Brand: | BPW,FUWA,HJ | Suspension: | Air And Mechanical Suspension |
| High Light: | Chemical Saline Solution Tanker Semi Trailer,60cbm Tanker Semi Trailer,60cbm Tanker Truck Trailer |
||
3 axle 60cbm Aluminum Alloy chemical saline solution tanker semi trailer
Description
Aluminum Alloy semi trailer is a tanker with a trailing head connected to the trailing section. Compared with the conventional single tanker, oil and chemicals semi trailers can effectively improve the transportation efficiency. In the same tonnage situation, reduce transportation costs, saving fuel consumption.
1. The tank body is made of 4mm or 6mm high-quality carbon steel according to national standards. The shape of the tank body is divided into oval or square round tanks, which can contain 1-4 kinds of oil products. Can also produce heating and heat preservation series tanks.
2. Alcohol, chemical tanker made of high quality stainless steel at home and abroad, the thickness of 4 mm to 5 mm.
3. All kinds of hydrochloric acid, sulfuric acid, lye tanker made of plastic, thickness of 12 mm to 22 mm.
4. A plurality of anti-wave baffles are arranged in the tank body. High pressure gas leak test is adopted to ensure that the tank body has high strength, stable center of gravity and safe and stable vehicle transportation.
Specification
| Model Name | 3 axle 60cbm Aluminum Alloy chemical saline solution tanker semi trailer |
| Function | Transport fuel and chemicals |
| Overall Dimension | (L*W*H) 11500*2500*3800mm |
| Volume | 40-60m3 |
| Tare weight | 10500KG |
| Tank body | Q235/4mm steel |
| End plate | Q235/6mm steel sheet |
| Axle | 3 axle 13T Fuwa Brand |
| Suspension system | Mechanical Suspension |
| Steel Spring | 10/10/10 leaf spring suspension |
| Manhole cover | 500mm manhole cover 8 sets |
| Tire | 12.00R20,11.00R20,12R22.5,11R22.5 Or Other 12pcs |
| Rims | 9.0, 12 pieces |
| Discharge valve | 4''disc valve ,8pcs |
| Discharge pipe | 4''seamless steel tube ,8pcs |
| Spare Wheel Bracket | 2'' bolt-in king pin |
| Landing gear | Fuwa brand two-speed,manual operating ,heavy duty landing gear 28t |
| Tool box | one piece |
| Compartment | 8 |
| Braking system | RE6 relay valve ;T30/30 spring brake chamber; 40L air tanks |
| Electrical system | voltage:24V 2.Receptacle:7ways(7wire harness) |
| Tail lamp with turn signal,brake light&reflector,side lamp etc. | |
| One set 6-core standard Cable | |
| Accessories | One standard tool box.fire extinguisher 2 pcs |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
| Main beams | Opting for high tensile steel Q345B welded by automatic submerged-arc processes |
| Packing | Polish with wax before shipping |

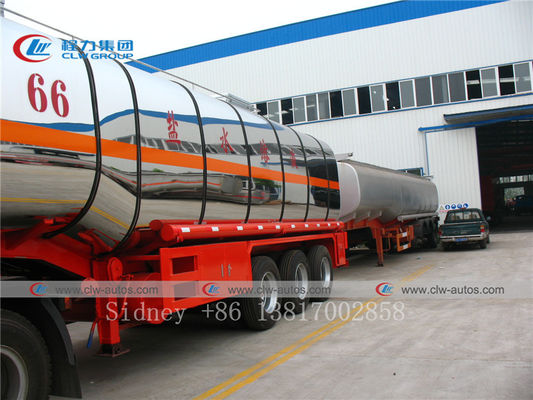

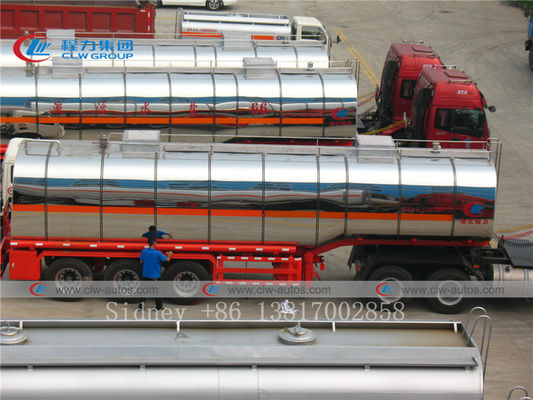

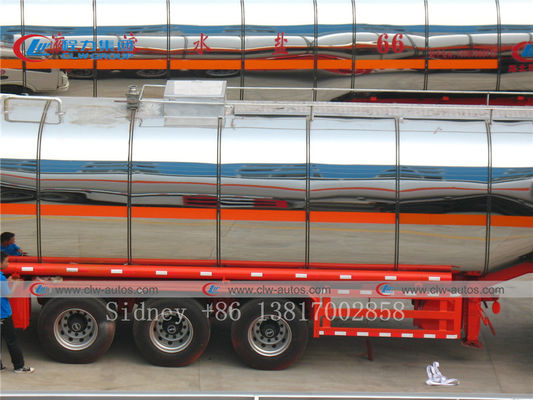

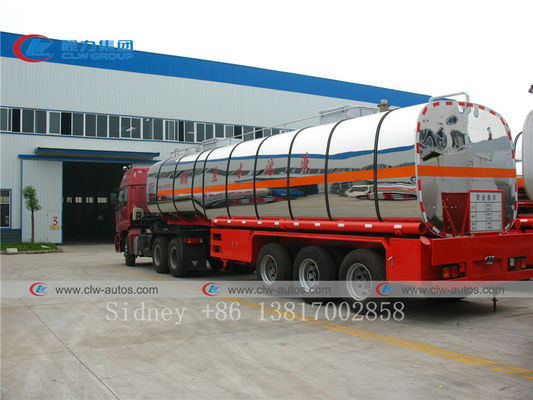

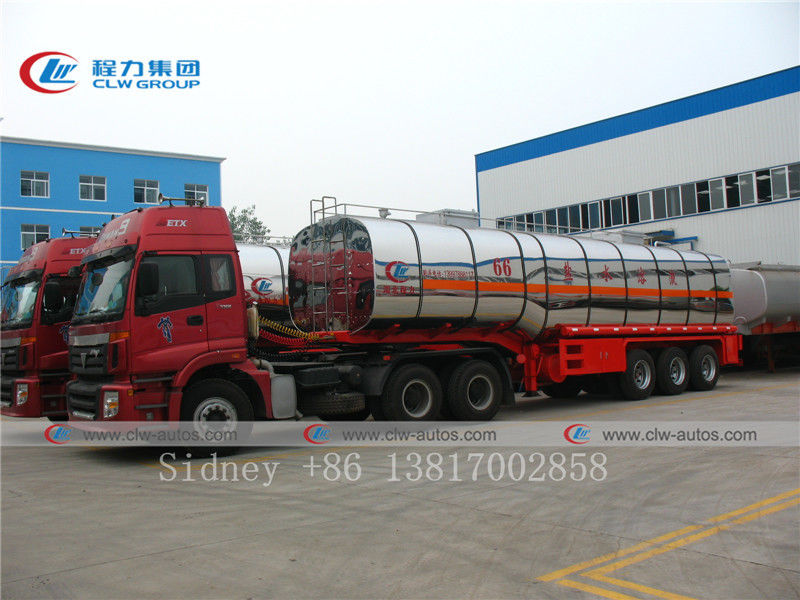

Reference Photos
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of fresh milk delivery tanker trailer I can order from your company?
A: We can supply various sizes of fresh milk delivery tanker trailer, there are 2 axles and 3 axles semil trailer for optional.
Q2: What is your production standard of fresh milk delivery tanker trailer? Whether your fresh milk delivery tanker trailer export to USA, Canada and Europen countries?
A: Our fresh milk delivery tanker trailer is produced as per China GB local standard;
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
