Product Details:
Payment & Shipping Terms:
|
| Material: | Q235B, Q345B | Material Thickness: | 4mm To 5mm |
|---|---|---|---|
| Tank Capacity: | 20000Liters, 5300Galon | Loading Weight: | 20metric Ton |
| Truck Brand: | Dongfeng | Tire: | 11R22.5, 12R22.5 |
| Cabin: | Left Hand Driving | Engine: | Xichai Or Weichai |
| Gearbox: | 10 Forward & 2 Reverse | ||
| High Light: | 20cbm Gasoline Delivery Truck,6X4 Gasoline Delivery Truck,Foton Auman Fuel Delivery Truck |
||
Description
1. Tank materials: Optional for carbon steel, stainless steel, rotational lining plastic, and FRP;
2. Tank shape: Optional for round square, oval, and round;
3. Functions: The tank can be made to be made to be separated chambers to load different oil or chemical varieties .and can be designed as as pump-in and pump-out through measurement;
4. Oil pump:Optional single counting, double counting, and tax control tanker;
5. Pump: According to the use of tankers, can choose centrifugal pumps, gear pump, copper gear pump, stainless steel pump, it has big flow,fast speed of suction and some other characteristics.
Specifications
| Chassis | parameter | |
| Chassis model | BJ5257 | |
| Overall dimensions | 10250×2500×3400mm | |
| Mass in working order | Appro×16055 kg | |
| Wheel base | 4725+1300mm | |
| F/R track base | 1930/1860mm | |
| Approach/departure angle | 10/10° | |
| Exhaust/kw | 8820ml/199kw | |
| Max speed | 85km/h | |
| Tire specification | 10.00R20 | |
| Traction system | 6x4 | |
| Number of axles | 3 | |
| Emission standard | Euro 3 | |
| Operation control system | Electrically hydraulic control | |
| Engine type | SC9DK270Q3B1 | |
| transmission | 9-speed with over drive | |
| Electric system | 24v | |
| Equipment | Tank meterial:5mm carbon steel. | |
| Equipped with fire extinguisher, ladder, grounding wire | ||
| Upper structure | ||
| Oil Tank | External Dimension | 6800×2450×1600 (mm) |
| Effective Volume | 20CBM/20000Liters | |
| Transport Oil Type | Fuel and Chemical Liquid | |
| Tank Material | Q235 Carbon Steel | |
| Tank Shape | Square Round | |
| API European standard system | Oil Vapor Recovery System | |
| Anti-overflow probe | ||
| Electrostatic wire reel | ||
| Cut-off valve | ||
| Unloading valve | ||
| Others | Lifting fence, ladder, etc. | |
| Options |
1) Refueling System, flow meter, tanker aircraft, etc. 2) Tank can be divided into several seperated compartments. |
|

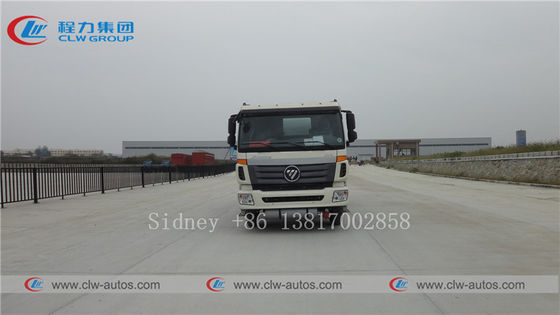

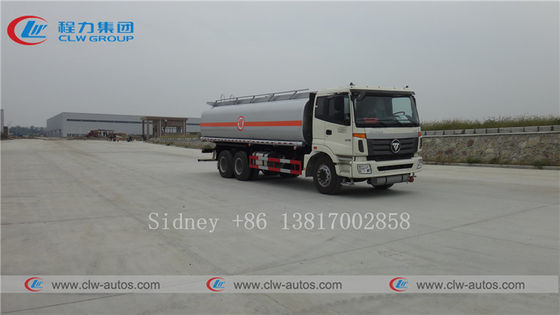

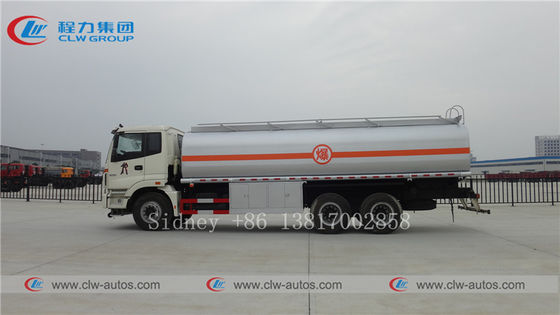

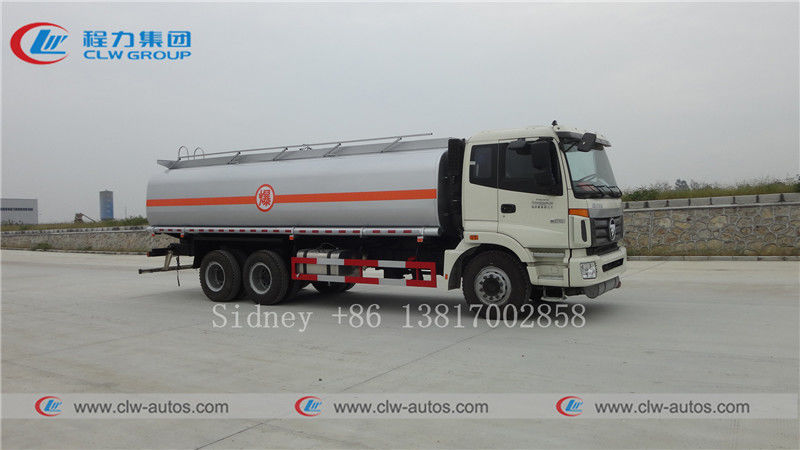

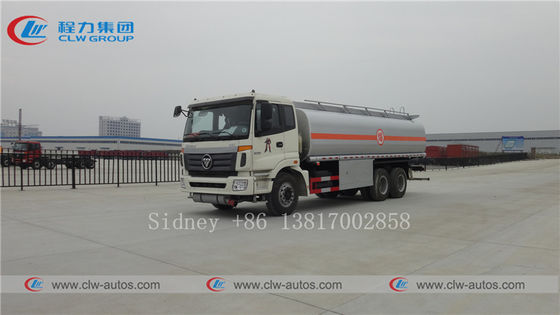

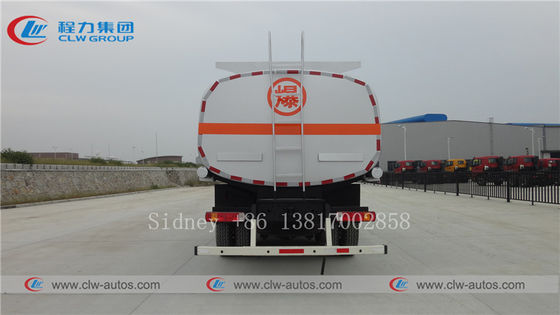

Reference photos
Parts photos
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of fuel delivery truck I can order from your company?
A: There are various sizes of fuel delivery truck with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied fuel delivery truck to any overseas companies?
A: Yes,with need of cleaning cities,we offered fuel delivery truck to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
