Product Details:
Payment & Shipping Terms:
|
| Cabin: | Double Row | Passenger: | 5 - 6 Person |
|---|---|---|---|
| Gearbox: | 5 Forward & 1 Reverse | Axle: | 2.3Ton Front, 4.5Ton Rear |
| Tipping System: | Middle Tipping Or Front Tipping | Tipping Cylinder: | Hyva Or Chinese Brand |
| Box Type: | Square Shape Or Round Shape | Box Size: | 400x 2100 X 550 Mm |
| Loaiding Weight: | 3Ton | ||
| High Light: | 3T Road Maintenance Dumper Truck,Double Row Cabin Dumper Truck,3T Tipper Truck |
||
Product Description

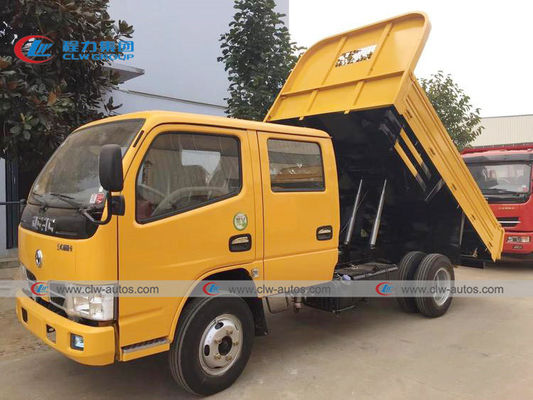

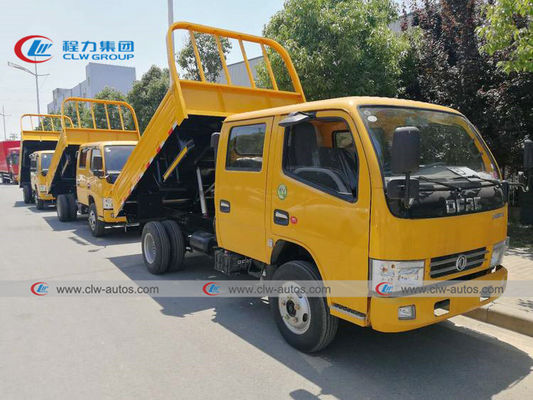

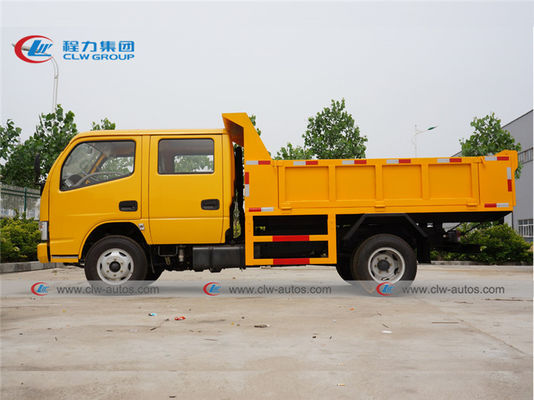

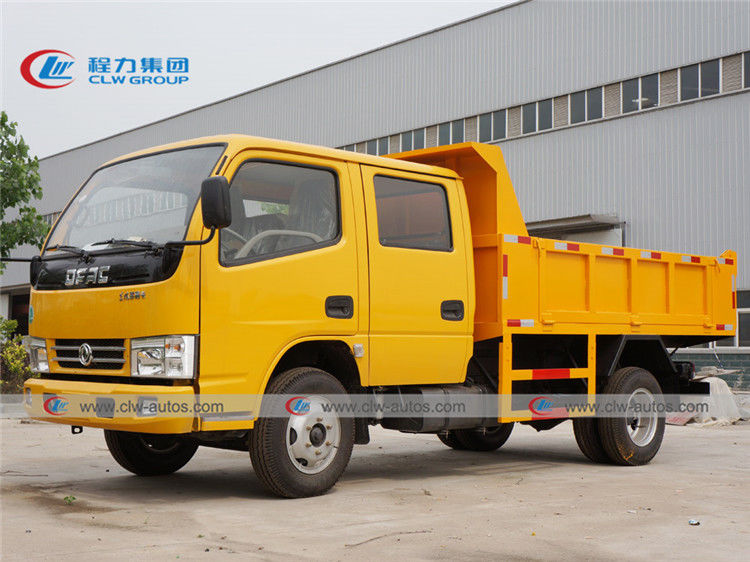

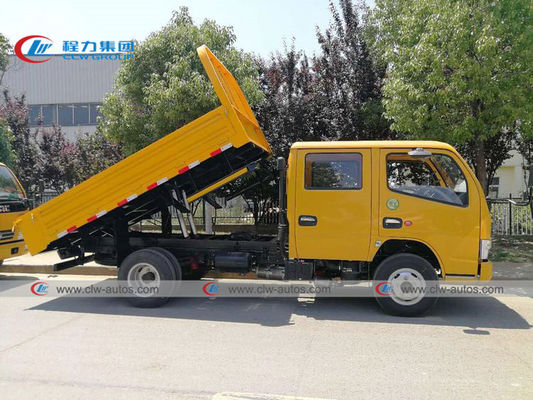

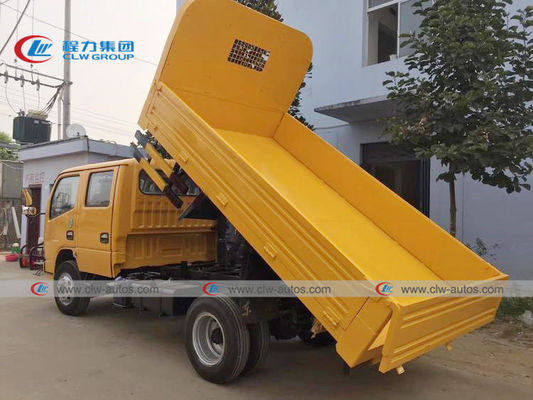

Dongfeng Furica Dump Truck Series
Specification of Dumper Truck
| Dimension(L×W ×H)(unloaded)(mm) | 6300 x 2500 x 3300 | |
| Cargo body size (L×W×H)(mm) | 4200 x 2100 x 550mm | |
| Approaching angle/Departure angle(°) | 19/26 | |
| Overhang(front/rear) (mm) | 1500/1739 | |
| Wheel base (mm) | 33000 | |
| Max speed(km/h) | 75 | |
| Curb weight(kg) | (Kg) | |
| Loading Weight(kg) | (Kg) | |
| Engine | Model | CY4103 |
| Fuel type | Diesel | |
| Displacement (ml) Power(kw) |
3450 88 |
|
| Emission | EURO 2 | |
| Fuel tanker capacity(L) | 150 | |
| Transmission | Model | 5 Forward & 1 Reverse |
| Brake system |
Service brake | air brake |
| Parking brak | spring energy, compressed air operating on rear wheels | |
| Steering system |
Model | Hydraulic |
| Front axle | Steering with double T-cross section beam | |
| Rear axle | Cast axle housing, central double reduction with differential locks between axles and wheels | |
| Tyre | 7.00-16 | |
| Electrical system | Battery | 12V/165Ah |
| Alternator | 28V-1500kw | |
| Starter | 7.5Kw/24V | |
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of dump trucks I can order from your company?
A: There are various sizes and types of dump trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied dump truck to any overseas companies?
A: Yes,with need of government project,we offered dump trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
