Product Details:
Payment & Shipping Terms:
|
| Tipper Material: | Q345B, T700, HARDOX | Axle: | FUWA, BPW, L1, Brand |
|---|---|---|---|
| Axle Loading: | 13tons, Or 16tons | Tipper Box: | 24m3, 30M3, 32M3, 35M3 |
| Loading Capacity: | 50tons, 60tons, 50T, 60T, 40TONS | Front Axle: | 13 Tons, Or 16 Tons, Liftable |
| Suspension: | Front: Air Bag, Rear: Mechenical Suspension. | Tipper Body: | U-shape, Or Square Shape |
| High Light: | Front Axle Liftable Tipper Trailer,Air Bag Suspension Tipper Trailer,60t Dump Semi Trailer |
||
4 Axle 50tons 60tons Tipper Trailer Front Axle Liftable 50t 60t Tipper Dumper Dump Semi Trailer with Air Bag Suspension
Product Description
1. Purpose: It used for transporting stone, soil, sand, steel material and different kinds of cargo.
2. Main parts: Suspension, Tire and axles.
3. Axle: Most of our customer all choose BPW or FUWA brand axle.
4. Tire: Double tire or Single tire for optional.
5. Landing leg: JOST or FUWA brand.
6. Customized service: All products can be produced as per customer's request if there any specifized requirements.
product Specification
| DIMENSIONS | |||||
| Tare Weight | 12500kgs | ||||
| Payload | 60000KGS | ||||
| Overall Length | 10800mm | ||||
| Overall Width | 2465mm | ||||
| Dump body size | 9300mmx2300mmx1500mm, 32 cubic meters. | ||||
| Photo for reference, final produce can be made according to exact requirements | |||||
| DUMPER BODY | |||||
| Volume | 32 cbm | ||||
| Side and Front Wall | 5mm thickness, Made by T700L high tensile strength steel | ||||
| Floor | 6mm thickness, Made by T700L High tensile strength steel | ||||
| SPECIFICATION | |||||
| Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Double Middle Flange 6mm and 8mm ; Bottom Flange 16mm,width 140mm. | ||||
| Axle | 4 axles, The first axle is liftable. | ||||
| FUWA Brand 13 ton | |||||
| Hydraulic System | One set of HYVA Brand cylinder, 191 | ||||
| Suspension | The first suspension is air bag, others are German design mechanical suspension, | ||||
| Leaf Spring | 13-piece leaf spring. 11x100 | ||||
| King Pin | JOST brand 2” Bolt-in King Pin | ||||
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | ||||
| Wheel Rim | 9.00-22.5 wheel rim, 17 pieces including one spare tire. | ||||
| Tyre | 315/80R22.5 tubeless tire with one spare tire, 17 pieces including one spare tire | ||||
| Spare Tire | One set of spare tire including a carrier | ||||
| Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks | ||||
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | ||||
| Accessories | One standard tool box | ||||
| Other equipment | With ABS, Tarpaulin, Electrical control by ASPOCK type. | ||||

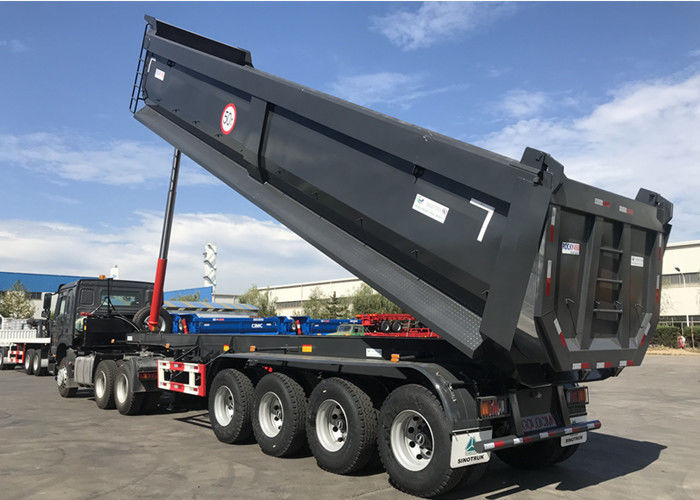

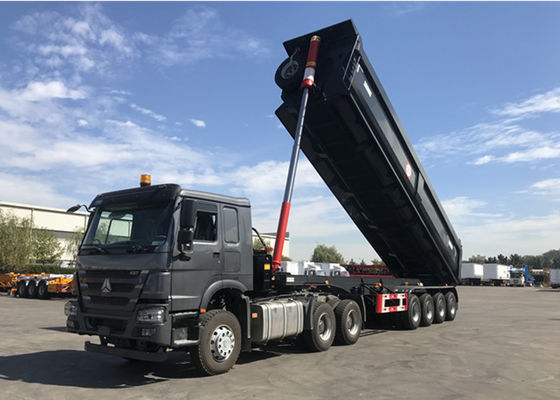

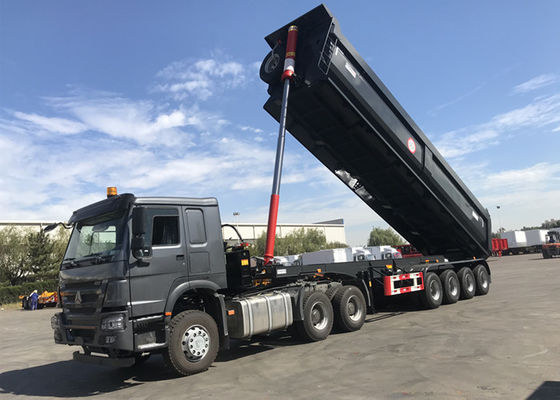

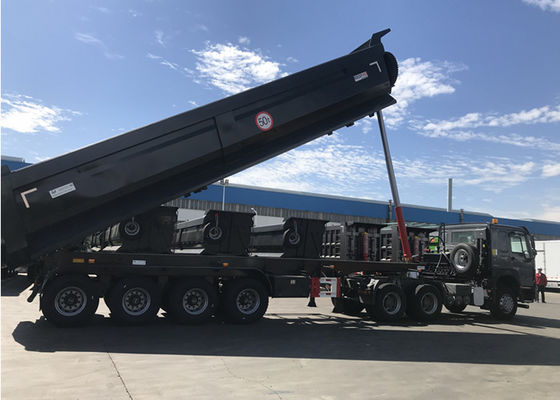

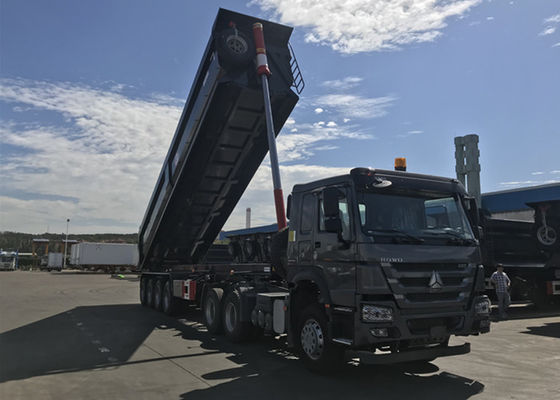

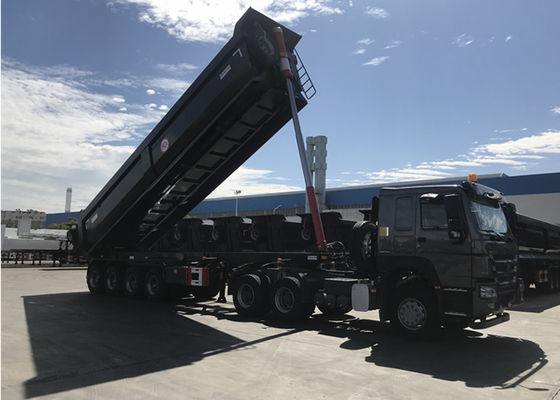

4 axle 32M3 35M3 50T 60T dump dumper tipper semi-trailer with front axle liftable air bag
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
