Product Details:
Payment & Shipping Terms:
|
| Tipper Body: | U-SHAPE, Or Square Shape | Product Name: | Used Or New Dump Truck, Tipper Dumper Truck |
|---|---|---|---|
| Drive Type: | 6X4 10 WHEELS 10 WHEELER | Drive Model: | Left Hand Drive, Or RHD |
| Loading Capacity: | 20 Tons, 25 Tons, 30 Tons, 20T, 25T. 30T | Truck Brand: | Sinotruk/Sinotruck HOWO, Shacman, FAW, FOTON, Jac |
| Tuck Type: | Front Tipping, Or Middle Tipping | Hydraulic: | HYVA |
| Condition: | USED, OR BRAND NEW FOR OPPTION | ||
| High Light: | 6X4 Tipper Dumper Truck,Sinotruk HOWO Tipper Dumper Truck,30T Heavy Duty Dump Truck |
||

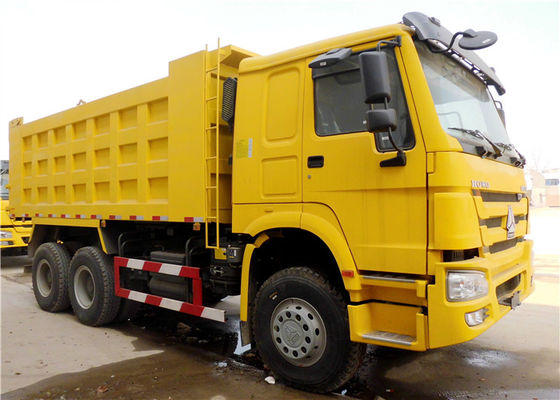

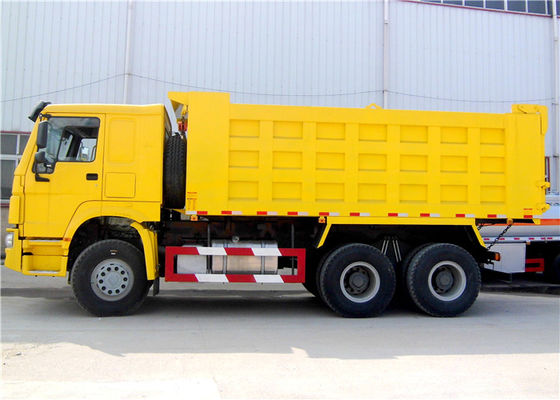

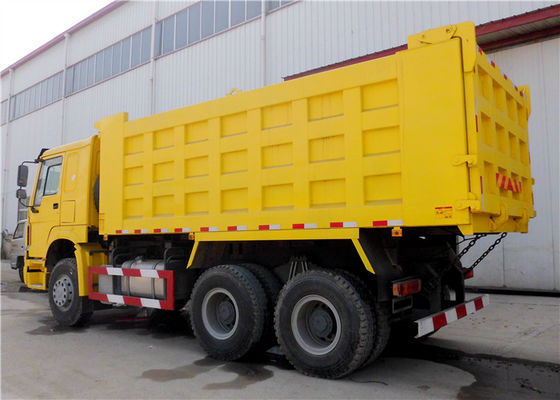

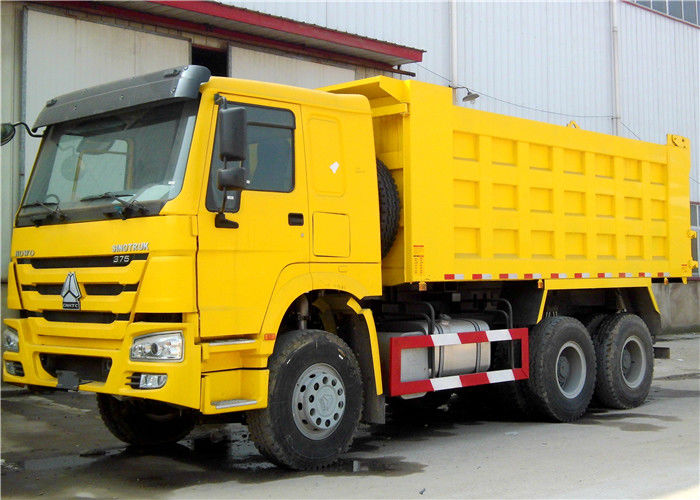

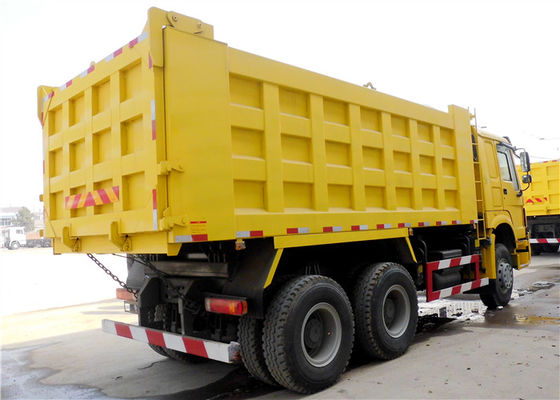

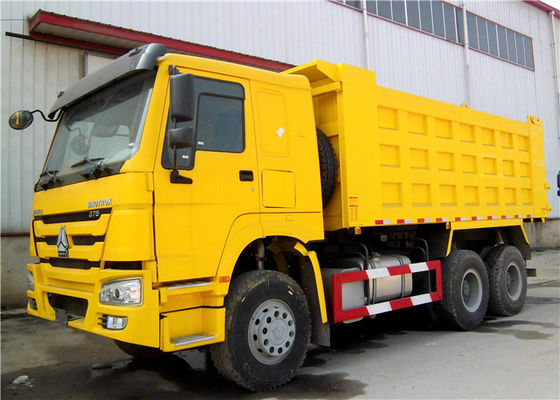

Sinotruk Heavy Duty HOWO 6x4 30 tons 30 T Used Truck Vehicle Tipper Dumper Dump Truck
Product Description
A dump truck is a vehicle that unloads cargo by hydraulic or mechanical lifting. Also known as the dump truck. It consists of a car chassis, a hydraulic lifting mechanism, a cargo compartment and a power take-off device.
The compartment of the dump truck is tilted backwards and laterally tilted. The piston rod movement is controlled by the operating system, and the backward tilting is more common. The piston rod is pushed to tilt the carriage, and a few are tilted in two directions.
Shape classification
Single-bridge dump truck, double-bridge dump truck, flat-head dump truck, pointed dump truck, front four rear eight dump trucks, double-bridge semi-trailer dump trucks, three-bridge semi-trailer dump trucks.
Variety classification
1. Dump truck brand:SINOTRUK HOWO,CAMC,SHACMAN,JAC,NORTH-BENZ,ISUZU,FOTON...
2. Tipping Model:Front-tipping,middle tipping dump truck,HYVA or Chinese brand hydraulic oil cylinder brand
3. High tensile steel for dumper materia,4mm,6mm,8mm, 10mm oer as per client's request and purpose.
4. Used in construction site for transportation of mineral,stone,sand and so on.
product Specification for Sinotruck HOWO 10 Wheels Wheeler 6x4 30tons 30T Used Tipper Dumper Dump Truck Trailer for Sale
| Condition | New condition/Left hand drive/6X4 drive model/SINOTRUK HOWO | |||||
| Chassis | Weight in kg | Curb weight(Including upper weight) | 12,110 | |||
| Loading weight | 30,000 | |||||
| Gross weight | 41,000 | |||||
| Front axle loading capacity | 9,000 | |||||
| Rear axle loading capacity | 16,000x2 | |||||
Dimensions in mm |
Wheelbase | 3800+1350 | ||||
| Overall Dimension | 8300*2496*3450 | |||||
| Approach angle(o) | 19 | |||||
| Departure angle(o) | 17 | |||||
| Front axle | HR9; Steering with double T-cross section | |||||
| Rear axle | AC16; Pressed axle housing, central single reduction and differential locks between axles; Ratio: 4.11 | |||||
| Clutch | Single- plate dry diaphragm spring clutch | |||||
| Brakes | Air brakes | |||||
| Steering | ZF8118 | |||||
| Wheel & Types | Rims | 8.5-20,10 hole-steel | ||||
| Types | 12R22.5 with one spear tire, 11 pcs in total | |||||
| Transmission | Model HW19710, 10 forward and 2 reverse, with PTO | |||||
| Cabin | HW70/HW76 | |||||
| Engine | Make | SINOTRUK | ||||
| Model | WD615.47 | |||||
| Description | 4 stroke direct injection diesel engine 6 cylinder in-line with water cooling, turbo-charging & intercooling |
|||||
| Displacement(ml) | 9726 ml | |||||
| Power | 371HP | |||||
| Upper | ||||||
| Box | Type | U-type | ||||
| Size(mm) | 16CBM; 5400*2300*1300 mm | |||||
| Max. Loading weight(kg) | 30tons-35tons | |||||
| Button Thickness(mm) | 6.0 mm | |||||
| Side plate Thickness(mm) | 4.0 mm | |||||
| Material | Hardox 450/NM 450 | |||||
Sinotruk HOWO 6x4 30tons 30T used dump dumper truck Sinotruck used tipper truck for sale
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
