Product Details:
Payment & Shipping Terms:
|
| Tank Material: | Q345R Carbon Steel For Pressure Vessel | Loading Capacity: | 5 TONS, 10 TON, 12 TONS, 15 TONS, 20 TONS, 25 TONS |
|---|---|---|---|
| Tank Size: | 40 M3, 40cbm, 40000liters, 40000L | Design Pressure: | 1.71MPa 1.77MPa 17.1bar, 17.7bar |
| Hydraulic Test Pressure: | 2.21MPa 22.1bar | Filling Medium: | Propane, Butane, LPG, Cooking Gas |
| Level Gauge: | Magnetic Plate Level Gaue, Float-Ball | Diameter: | 2300mm, 2400mm |
| High Light: | Q345R LPG Gas Filling Tank,Diameter 2300mm LPG Gas Filling Tank,40m3 LPG Gas Storage Tank |
||
40000Liters LPG Storage Tank Gas Tanker Bulk 40CBM 40m3 40000L 20tons LPG Gas Filling Tank for LPG Gas Plant
Product Description
1. Storage medium of LPG Stationary Storage Tank : LPG, cooking gas,propane gas,Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Available tank capacity of LPG Stationary Storage Tank : 5m³~200m³,2ton~100tons
3. Manufacturing standards of lLPG Stationary Storage Tank : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
LPG storage tanks are specialized products for the storage of liquefied petroleum gas, belonging to special equipment. The material includes Q345R & Q370R, and AS-ME standard material SA516M & SA517M. The shape is cylindrical with 2 end plates. Usually, the Shell is always thicker than the end plate according to the volume of the tank. Liquefied petroleum gas is a flammable and explosive medium, so the storage tank of this medium should be strictly required during installation and use. Operators must comply with operating specifications. The production flow includes computer controlled cutting, computer controlled rolling, submerged arc welding, assembly, nondestructive testing, heat treatment, hydraulic test pressure, blasting, and paint. Perfect raw material with certificates.
Product Specification;
| Parameter of 40000liters 20 tons LPG Stationary Storage Tank | ||||||
| ITEM | PARAMETER | ITEM | PARAMETER | |||
| Volume | 40cbm | Thickness of Shell | 12mm | |||
| Tank Material | Q345R | Thickness of End plate | 14mm | |||
| Overall Size | 10040*2324*2914mm | Tank Net Weight | 8630kg | |||
| Tank Diameter | 2300mm | Loading Capacity | 20000kg | |||
| Design Pressure | 1.77Mpa | Gas Density | 420kg/M3 | |||
| Hydraulic Test Pressure | 2.22Mpa | Corrosion Allowance | 1mm | |||
| Design Temperature | -20ºC~60ºC | Heat Treatment | Bulk | |||
| Vapor Outlet | DN50 | Gas Outlet | DN50 | |||
| Life time | 15 years | |||||
| Accessories | ||||||
| Model | Item | Qty | Junction surface | |||
| J41N-2.5-50 | Stop Valve DN50 | 6 | RF | |||
| J41N-2.5-25 | Stop Valve DN25 | 2 | RF | |||
| J41N-2.5-100 | Stop Valve DN100 | 1 | RF | |||
| J24W-320-DN6 | J24W Needle Valve M20*1.5 | 1 | ||||
| HG21584-95 | Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 | 1 | RF | |||
| A42F-25-100 | Safety Valve DN100 | 1 | RF | |||
| Y-100T | Pressure Gauge M20*1.5 1.5degree 0~4Mpa | 1 | ||||
| WTQ-280 | Thermometer M33*2 2.5 degree | 1 | -40ºC~60ºC | |||

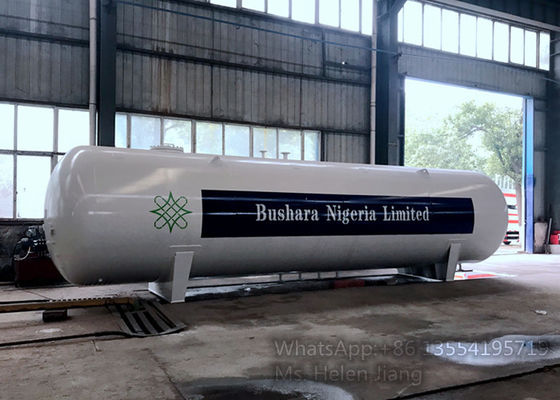

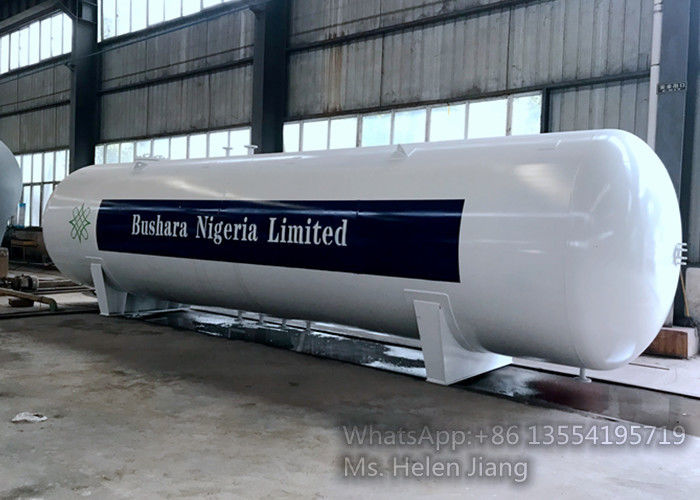

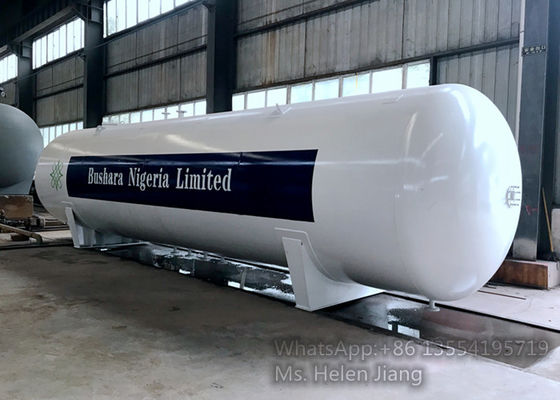

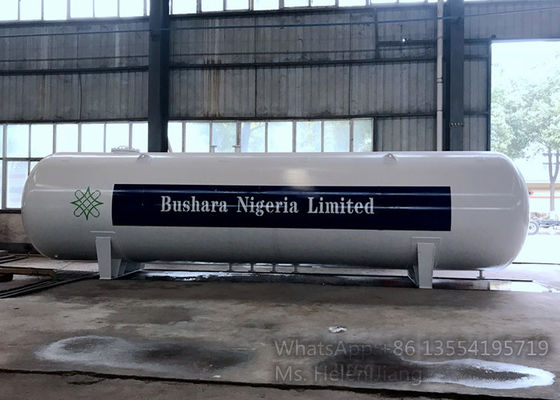

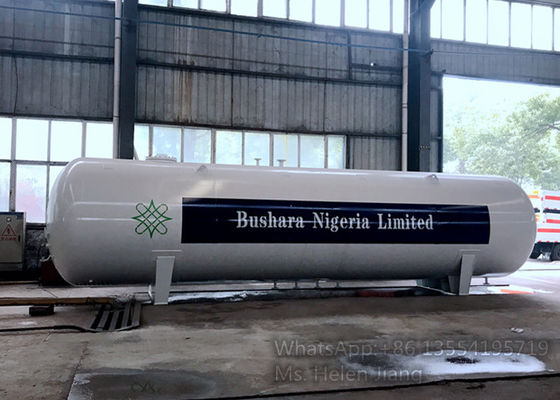

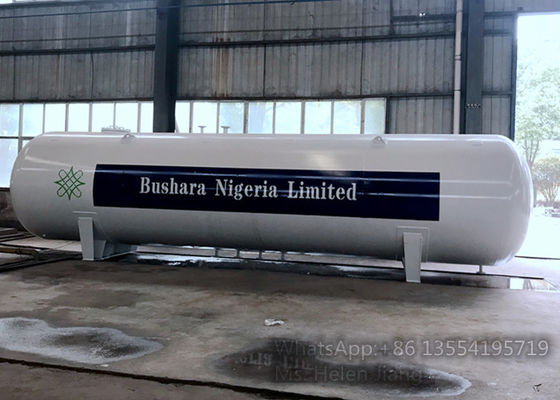

Product 40000Liters LPG storage tank's pictures:
More pictures of different sizes of LPG storage tank we produced:
Pictures of LPG gas plant with the accessories:
Production Process for LPG storage tank:
-- The welding joints, welds, tank heads and geometric positions of each pressure element are strictly inspected by X-ray;
-- non-destructive testing and magnetic particle inspection test for each Underground LPG tank;
-- Design pressure of Underground LPG tank: 1.77Mpa;
-- hydraulic testing pressure:2.21 Mpa;
-- Corrosion allowance: 1mm;
-- Optional for tank accessories and lpg gas station equipments such as safety valve,globe valve,ball valve,pressure gauge,thermometer,magnetic level guage or rochester float-ball level gauge,lpg pump and motor,lpg compressor,lpg flow meter,cylinder filling scales,strainer,glass valve and so on.
