Product Details:
Payment & Shipping Terms:
|
| Chassis Brand: | JMC, Howo, Dongfeng, Isuzu, Foton, JAC, Etc. | Gearbox: | 8 Forward & 2 Reverse Gear |
|---|---|---|---|
| Tanker Volume: | 15m3, 16m3, 17m3, 18m3, 19m3, 20m3, Etc. | Tank Material: | Carbon Steel, Stainless Steel Or Aluminum Alloy |
| Tank Shape: | Square Round, Round | Transport Oil Type: | Diesel, Petrol, Gasoline, Oil, Etc. |
| Oil Pump: | Chinese Famous Brand | Oil Dispenser: | Chinese Famous Brand |
| Hose Reel With Filling Gun: | 15 Meter (Length Can Be Longer As Per Request) | Oil Vapor Recovery System: | Optional |
| Delivery Time: | 35 Days | Color: | Customized |
| Warranty: | 1 Year | ||
| High Light: | 5cbm Fuel Dispenser Truck,JMC 4X2 Fuel Dispenser Truck,5cbm Diesel Refueling Truck |
||
1. Purpose: It is used for vehicles refueling and mobile transporting Fuel/Petrol/Diesel, etc.
2. Refueling System: Oil pump, Oil dispenser machine and Hose reel with filling gun, etc.
3. Advantage: High quality with competitive price.
4. We can supply fuel truck, refueling truck from 4000L to 40000L.
5. According to your requirements, it has functions of oil-absorbing, oil-pumping, separation variety of oil, separation packing of oil.
6. The tank material can choose carbon steel or 304 stainless steel or aluminum alloy.
7. Optional Chassis Brand: Dongfeng, Fonton,JMC, Sinotruk Howo, Shacman, FAW and etc.
8. Factory direct sale, high quality and good price.
Specification
| Cab | JMC single cab, 2 or 3 seats | |
| Overall Dimensions(mm) | 5950×2000×2600 | |
| Tank Dimensions(mm) | 3800x1400x1100 | |
| GVW(kg) | 5900 | |
| Curb weight (Kg) | 3094 | |
| Wheelbase | 3360 | |
| Front/Rear Suspension | 1065/1520 | |
| Steering | Power steering | |
| Approach/departure angle | 15/13 | |
| Wheels & tire | 7.00R16 | |
| Tire number | 6+1 | |
| Tank volume(L) | 5000 | |
| Steel thickness of tank(mm) | 4 | |
| RHD or LHD | optional | |
| Engine | Model | JX493ZLQ |
| Horsepower | 116 | |
| Maximum output Kw | 85 | |
| Maximum torque N.m | 285 | |
| Type | 4 cylinders, in-line, 4-stroke,diesel engine | |
| Displacement | 2.771L | |
| JMC brand, Euro 4 | ||
| Transmission | Five speed forward and one reverse, manual | |
| Front Axle | 2.5T | |
| Rear Axle | 4T | |
| Brake System |
Air brake exhaust brake |
|
| Color and LOGO | Customized | |
| Electric system | 24V | |
| Tank material | Carbon steel, stainless steel, aluminum, etc. alloy, etc. | |
| Standard configuration | Oil pump, two aluminum alloy flow valves, tool box, manhole, climbing ladder, fire extinguisher, oil hose. | |
| Optional configuration | Flow meter, oiling machine, European standard manhole, pneumatic valve, AIP valve, anti overflow sensor plug, oil and gas recovery system, divided into several compartments. | |
| Delivery date | Within 25 days after receipt advance | |
| Packing | Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. | |

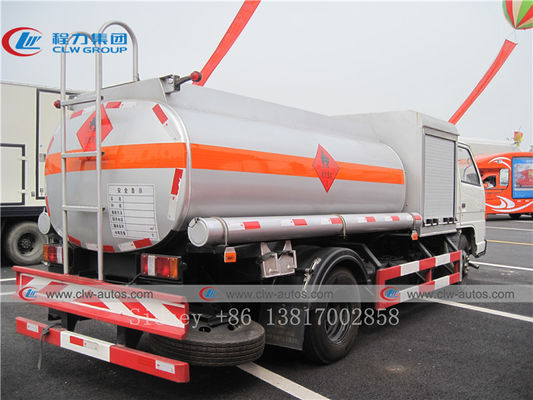

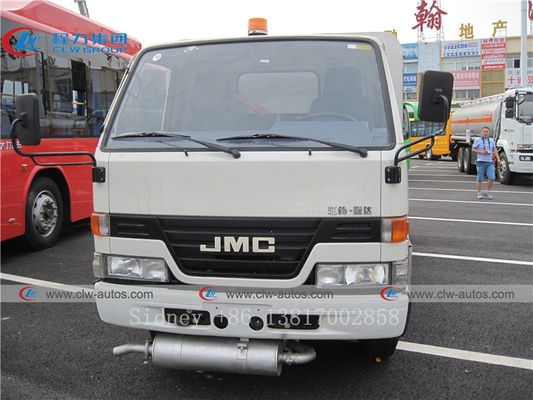

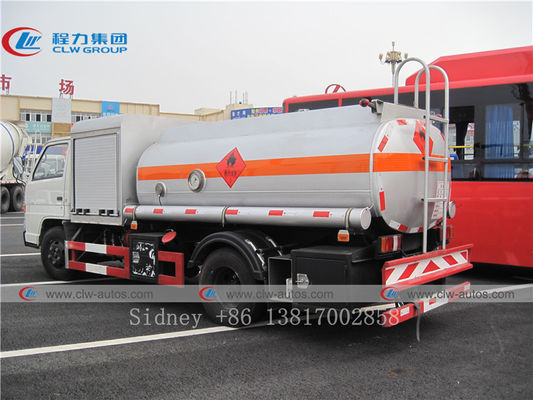

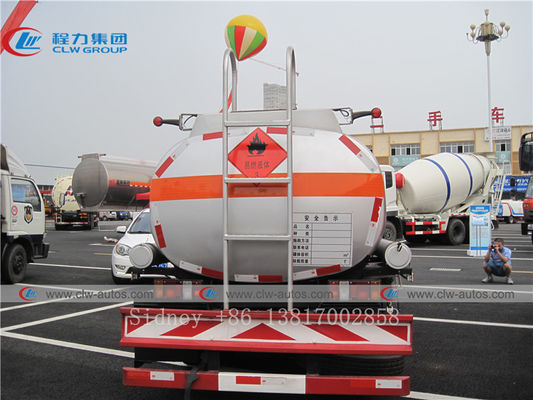

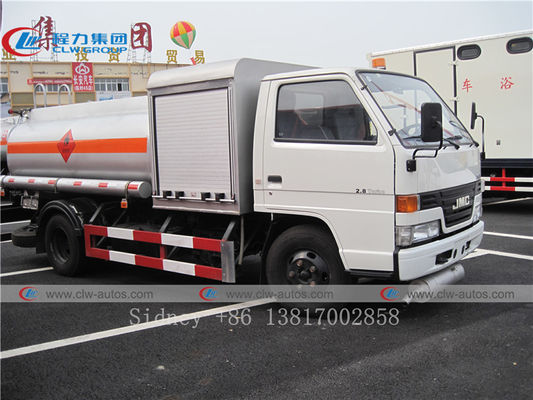

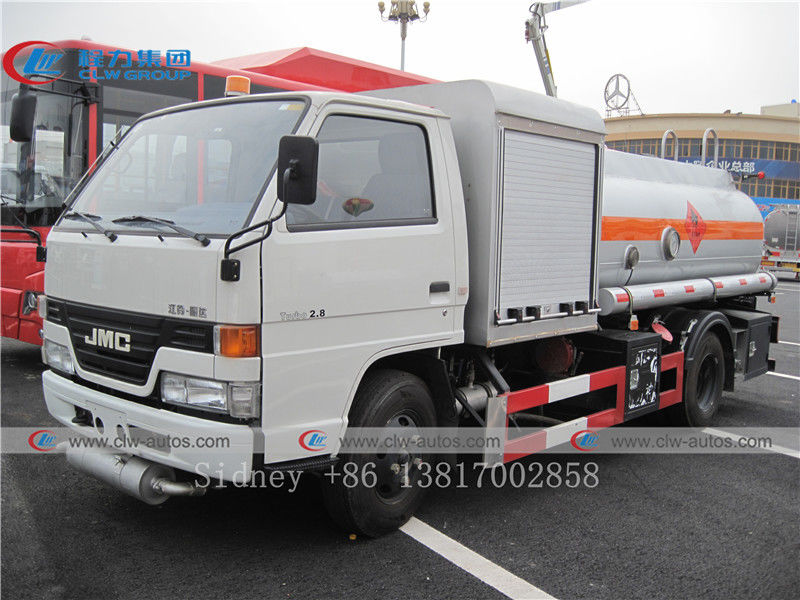

Reference Photos
Other Kinds of Fuel Dispenser Trucks
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of Fuel Dispenser Tanker Truck I can order from your company?
A: We can supply different size Fuel Dispenser Tanker Truck as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.
Q2: What is your production standard of Fuel Dispenser Tanker Truck products?
A: China GB local standard.
Q3: Can we adopts International brand fuel pump for Fuel Dispenser Tanker Truck?
A: Sure, we already cooperated with many international brand supplier.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
