Product Details:
Payment & Shipping Terms:
|
| Tanker Material: | Carbon Steel, Stainless Steel, Aluminum Alloy | Axle: | FUWA, BPW, L1, Brand |
|---|---|---|---|
| Axle Loading: | 13tons, Or 16tons | Oil Tanker: | 45M3, 45 Cubic Meters, 45000 LITERS |
| Compartment: | 2 3 4 5 6 Compartments | Front Axle: | 13 Tons, Or 16 Tons, Liftable |
| Suspension: | Front: Air Bag, Rear: Mechenical Suspension. | Transport: | Fuel, Oil, Diesel, Gasoline, Petrol |
| Function: | Fuel Delivery, Oil Delivery Truck Trailer | Landing Gear: | JOST Brand |
| High Light: | 45m3 Fuel Truck Trailer,Q235 Carbon Steel Fuel Truck Trailer,45m3 Tri Axle Tanker Trailer |
||

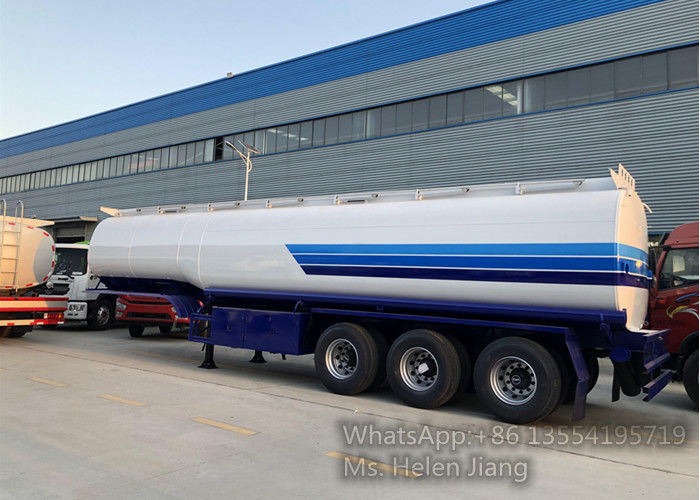

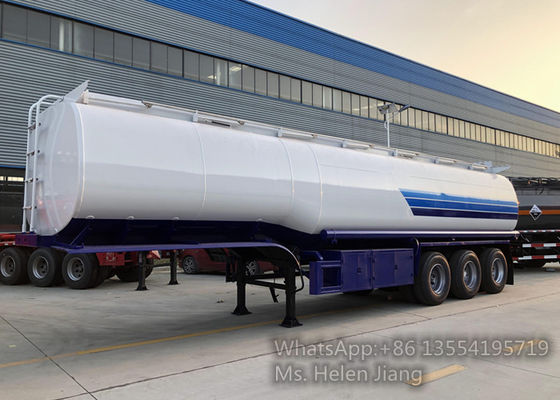

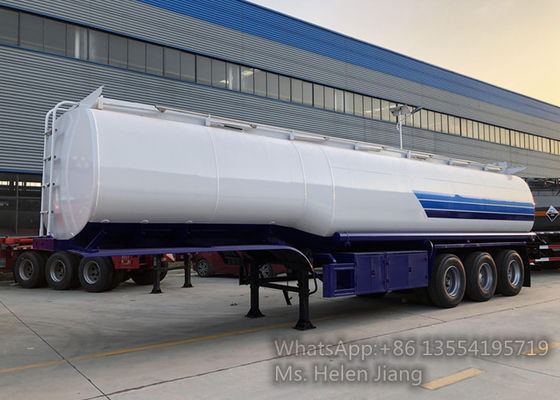

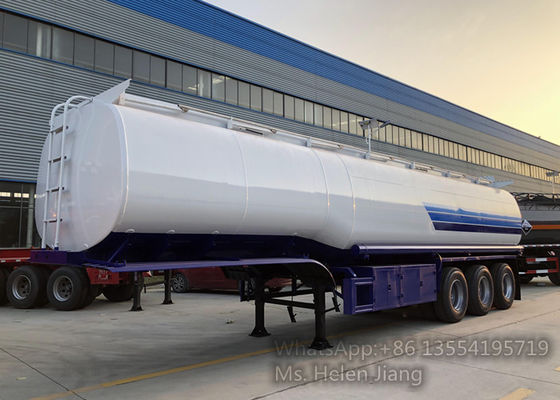

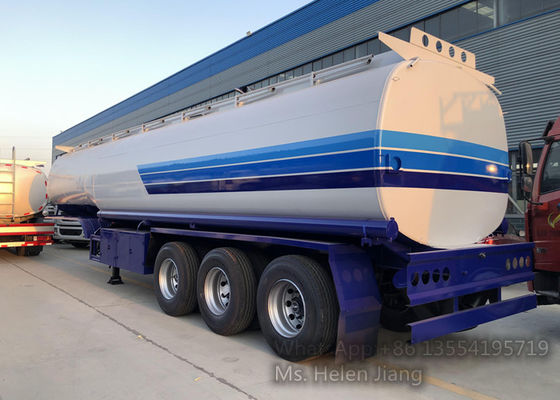

3 Axle 45000L Carbon Steel Fuel Delivery Tank Truck Trailer Oil Tanker Delivery truck Semi trailer
Description:
** Tank material could be carbon steel, stainless steel, alluminum...
** It can be divided into many compartments to load different types of fuels.
** BPW axles, JOST kingpin, JOST landing gears, Air suspension, ABS.
** Heat preservation of rock cotton or polyurethane foaming, Heating system.
** Bottom loading system can be equipped: API connections, over-fill detection system , vapor recovery vent, vapor recovery adaptors & dust cap, pneumatic control, bottom emergent valve...
** Tube or tubeless tyres, off-road single tyre for bad roads.
| Main Dimensions | ||
| Overall Length | 11240mm | |
| Overall Height | 2800mm | |
| Tare Weight | 11500KGS | |
| Loading Capacity | 45m3 | |
| Photo only for reference, final product can be made according to exact requirements | ||
| Tank Body | ||
| Shape | Mono block Cylinder | |
| Total Volume(m3) | 45CBM | |
| Tanker Body Material | 6mm steel / Q235 high tensile strength steel | |
| End plate | 6mm steel sheet/Q235 high tensile strength steel | |
| Manhole cover | Aluminum alloy API manhole cover, ∮500mm ,2 sets with 2 breather valve | |
| Bottom Valve | 1-2 sets of Aluminum API Pneumatic Bottom Valve | |
| Discharging valve | 2-4 set ∮100mm discharging valves | |
| Discharging Pipe | 4”rubber hose, 2 pcs, 6m long | |
| Chassis | ||
| Main Beams | Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation; | |
| Axle | 3 axles | |
| BPW or FUWA 13 Ton | ||
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | |
| King Pin | JOST brand 2” bolt-in king pin | |
| Suspension | German design heavy duty mechanical suspension | |
| Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. | |
| Wheel rim | 8.25R22.5 wheel rim, 13 pieces | |
| Tire | 11R22.5 tubeless tire with one spare tire, 13 pieces | |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |
| Accessories | One standard tool box | |
Heavy Duty landing gears:
As per the capacity, there are 5ton 8ton, 15ton, 20ton,25ton, 28ton, 30ton and 35ton.
As per the gearbox, there are both Gearbox inside and Gearbox outside type.
As per the operation, there are both Single-Side Operation and Double-Side Operation type.
As per the Sand Shoe, there are T-Shoe, Casting T-Shoe, S-Shoe, R-Shoe and A-Shoe.
90# 3.5'' trailer welding king pin
We can provide several model with different specifications.
certification:ISO9001-2000
90# 3.5'' trailer bolt connecting king pin
1. specifical heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performance, strong load ability and lower self weight.
2. high quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability
3. high performance premiun non-asbestos brake linings, extend service life
4. easy for ABS installation
5. camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety
6. new tight fit hub cap have O rings, high property for sealing
Air Suspension is a type of automotive suspension that uses air springs instead of conventional steel springs. Computer-operated vents on the air springs, suspension sensors, and an on board air compressor allow the system to maintain ride height and vary the suspension's ride characteristics.
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of fuel delivery truck I can order from your company?
A: There are various sizes of fuel delivery truck with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied fuel delivery truck to any overseas companies?
A: Yes,with need of cleaning cities,we offered fuel delivery truck to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
