Product Details:
Payment & Shipping Terms:
|
| Tipper Body: | Carbon Steel | Product Name: | Used Or New Dump Truck, Tipper Dumper Truck |
|---|---|---|---|
| Drive Type: | 4X2 6 WHEELS 6 WHEELER | Drive Model: | Left Hand Drive |
| Loading Capacity: | 2 Tons, 3 Tons, 4 Tons, 5 Tons 2T, 3T. 4T, 5T | Truck Brand: | Sinotruk/Sinotruck HOWO, Shacman, FAW, Isuzu FOTON, Jac |
| Tuck Type: | Front Tipping, Or Middle Tipping | Hydraulic: | Middle Tipping, Middle Tipper |
| Condition: | USED, OR BRAND NEW FOR OPPTION | ||
| High Light: | 5T Tipper Dumper Truck,Japan ISUZU Tipper Dumper Truck,600p 2 Ton Dump Truck |
||

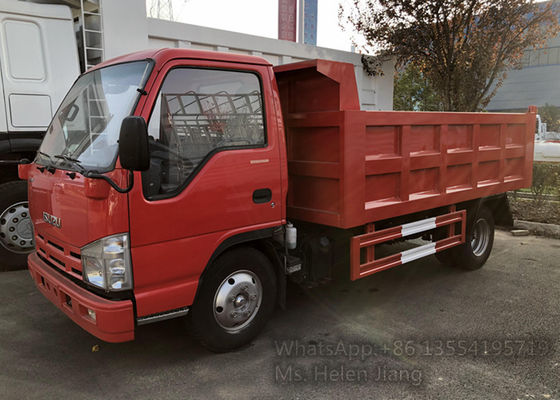

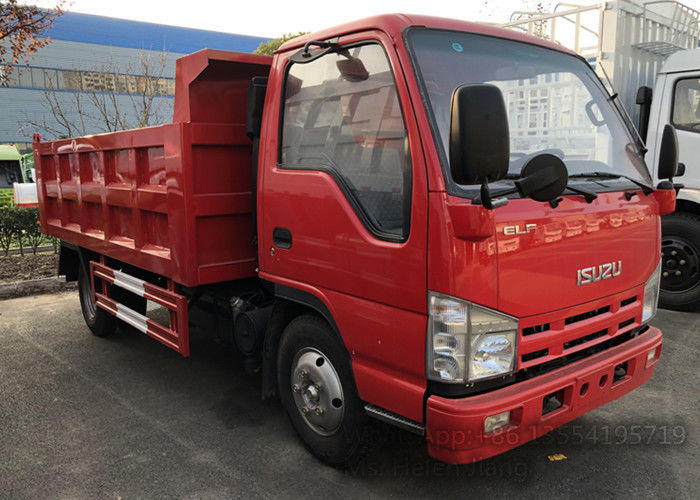

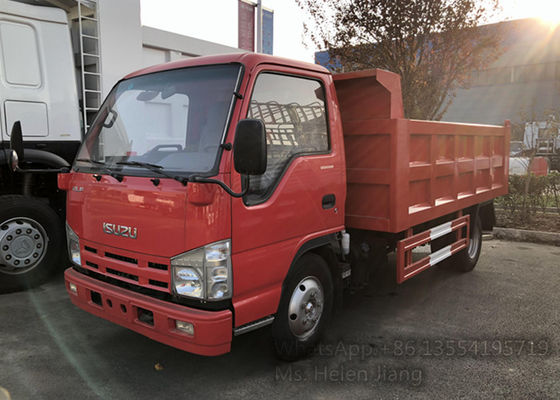

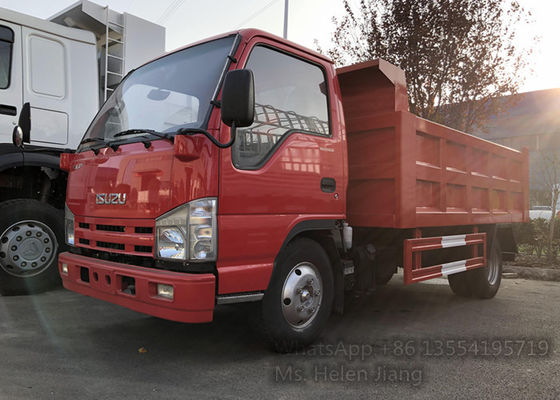

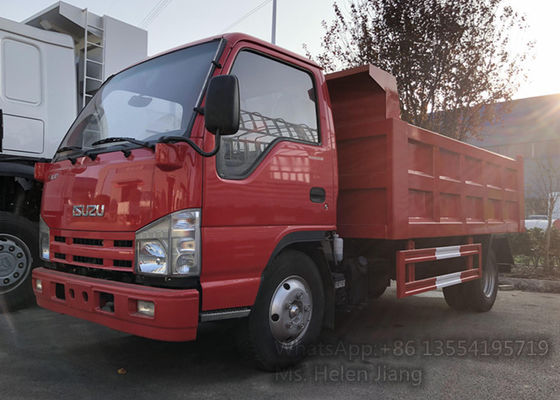

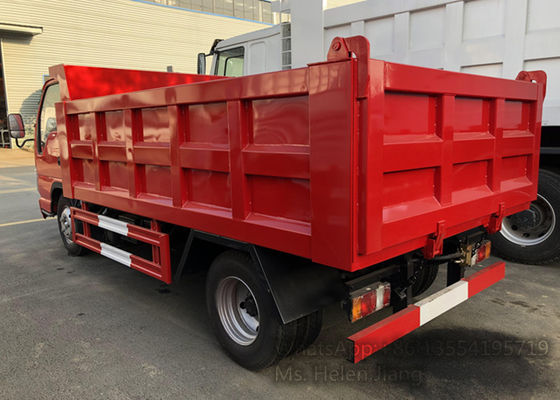

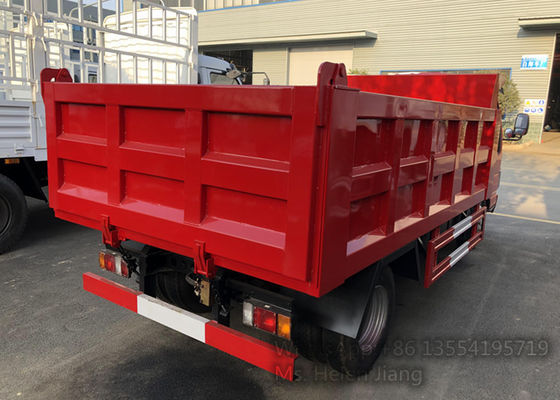

Japan ISUZU small 4x2 600p 3TONS 4TONS 5TONS 3T 4T 5T Tipper Dumper Dump Truck for sale
Product Description
A dump truck is a vehicle that unloads cargo by hydraulic or mechanical lifting. Also known as the dump truck. It consists of a car chassis, a hydraulic lifting mechanism, a cargo compartment and a power take-off device.
The compartment of the dump truck is tilted backwards and laterally tilted. The piston rod movement is controlled by the operating system, and the backward tilting is more common. The piston rod is pushed to tilt the carriage, and a few are tilted in two directions.
Shape classification
Single-bridge dump truck, double-bridge dump truck, flat-head dump truck, pointed dump truck, front four rear eight dump trucks, double-bridge semi-trailer dump trucks, three-bridge semi-trailer dump trucks.
Variety classification
product Specification
| Model Name | Isuzu 600p dump truck | ||||
| Driving Type | 4×2,left hand drive | ||||
| Weights | |||||
| Rated payload weight(kg) | 8000-10000 | ||||
| Curb weight(kg) | 4320 | 5200 | 5400 | ||
| Dimensions | |||||
| Wheelbase(mm) | 3815 | 4175 | 4475 | ||
| Overall Dimension(mm) | 6500*2396*3220 | 7100*2380*3370 | 7500*2245*3370 | ||
| Box dimension (mm) | 4300*2100*550 | 4800*2100*2100 | 6100*2100*550 | ||
| Max speed(km/h) | 110 | 110 | 110 | ||
| Engine | |||||
| Engine model | 4HK1-TCG40 (190HP) | ||||
| Engine type | 4 stroke water-cooled, lectric control system | ||||
| No. of cylinders | straight-4 cylinders | ||||
| Displacement(L) | 5.193L | ||||
| Max. output (kw) | 140kw | ||||
| Drive Line | |||||
| Transmission | MSB 6 speed,6 forwards,1 reverse gear,manual operation | ||||
| Cab | |||||
| cabin | Isuzu 700p | ||||
| Standard configuration | Air conditioner ,USB ,sound,electric windows,and so on | ||||
| Axle | |||||
| Front axle | 4 tons | ||||
| Rear axle | 7 tons | ||||
| Tire specification | |||||
| Tire specification | 8.25-16,8.25R16,8.25-20,8.25R20 standard tire,6 tires+1 spare tire | ||||
| Special function of tipper truck | |||||
| Box material | steel | ||||
| box thickness | bottom 4mm,side3mm | ||||
| lifting system | front lifting | ||||
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
