Product Details:
Payment & Shipping Terms:
|
| Tanker Material: | Carbon Steel, Stainless Steel, Aluminum Alloy | Product Name: | Fuel Oil Disel Gasoline Tank Tanker Bowser |
|---|---|---|---|
| Drive Type: | 4X2 6 WHEELS 6 WHEELER | Drive Model: | Left Hand Drive, Or Right Hand Drive |
| Loading Capacity: | 4000 Liters 5000 Liters 4cbm, 5cbm | Truck Brand: | Sinotruk/Sinotruck HOWO, Shacman, FAW, FOTON, Jac |
| Tuck Type: | Oil Delivery Transport Truck, Oil Refueling Bowser | Other Equipment: | Charging/discharging Valves. API Manhole |
| Engine: | F3.8s3141, FOTON Cummins Brand | Truck Type: | Fuel/Oil Delivery Or Transport. Fuel/Oil Refueling |
| High Light: | 4m3 Mobile Refueling Truck,FOTON AUMARK Mobile Refueling Truck,4X2 Refueler Truck |
||

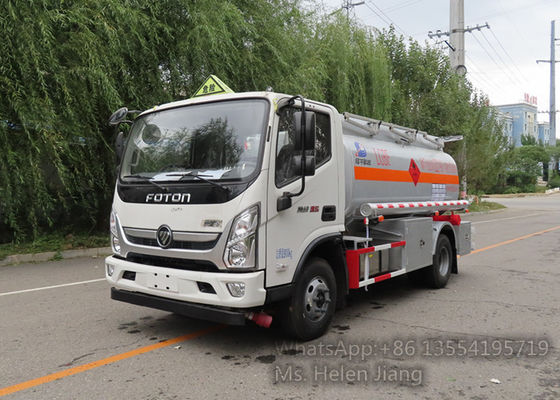

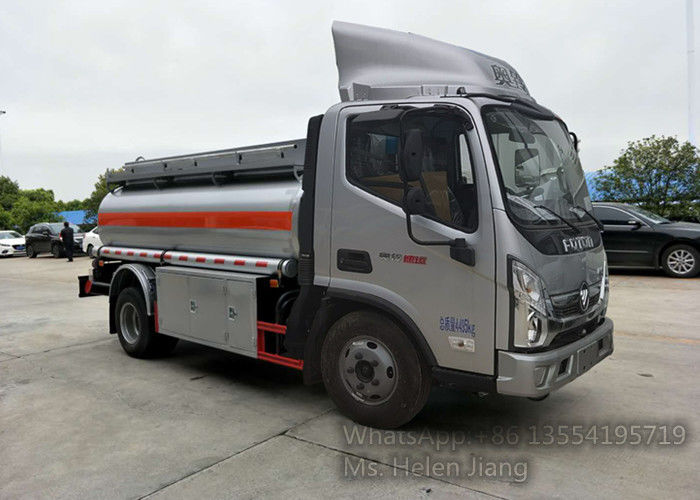

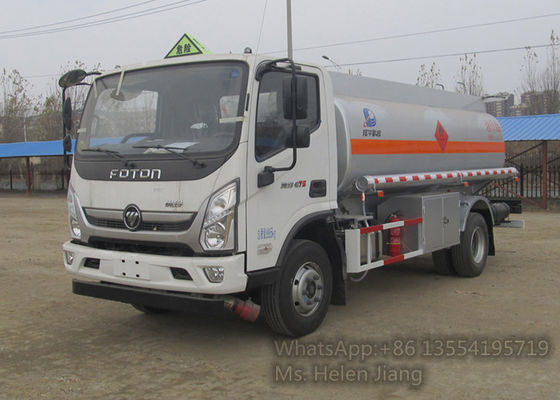

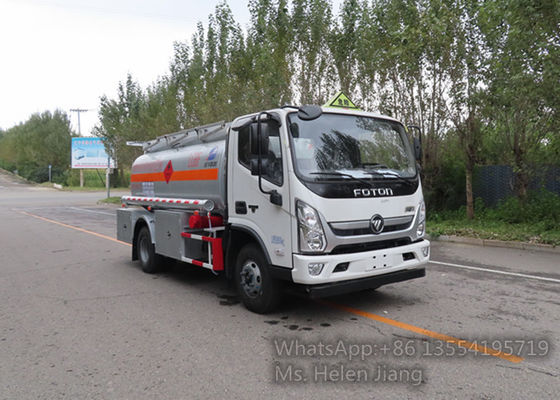

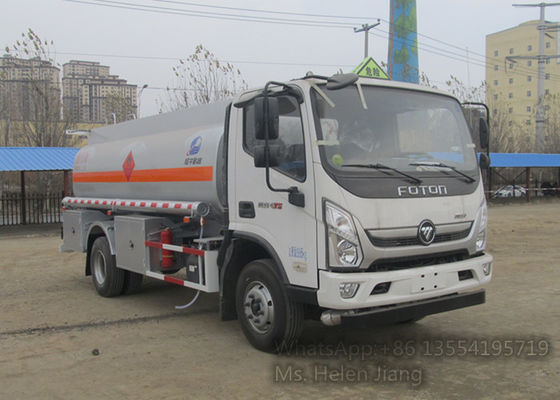

FOTON AUMARK 6 wheels 4x2 4M3 5M3 4000L 5000L Fuel Refueling Tank Truck Oil filling Tanker Truck for Sale
Product Description
1. Manhole: 3 units, DN550mm Europe standard manhole with manhole cover
2. Air valve (breath valve): 3 units,bolt-in manhole cover
3. Inlet hole: 3 units, DN220mm,with manhole loading system
4. Outlet hole: 3 units,DN80mm ball valve at middle side of fuel tanker
5. Vapor recovery system, 3 sets, inculding: (1) Emergency valves; (2) Vapor Recovery System: (3) Bottoms mouth API is only 1 set; (4) anti-flooding probe; (5) Guankou European standard: (6) antistatic reels.
6. Discharge hose: 2 units approved delivery hose with quick couplings
valves of the outputs of the tank in 3 "and deliver with pump and meter must be in 1"
(Male and female coupling), also have housing cabinet with locks above fenders
7. Man walkway: Anti-skidding aluminum walk way on top of tanker, Fold the armrest
8. Ladder: Aluminum alloy climb ladder fixed on rear of tanker ends
9. Reflective tape: '3M' reflective tap on side of tanker and rear of tanker
10. Fire extinguisher cage: 2 pcs x 6Kg's fire extinguisher, installed at sides of vehicle
11. Anti-static grounding device
12. Sign plate: Aluminum alloy plate for warning and information
13. Side fender: Installed at both sides of trailer made of steel, Manufacturer's Standard
14. Rear Bumper: Steel, Manufacturer's Standard design
15. Tank finishes:Without painting
16. Package and shipping: Nude, by 40ft High container, after you receive truck, need to install tires and rims by yourself. Pls clear this. thanks.
product Specification
| Vehicle model | AUMARK-E33 | |
| Cabin | Single row/W1880/left rudder | |
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 5965×1960×2225 |
| Wheel base(mm) | 3360 | |
| Weight data | Curb weight(kg) | 2300 |
| Gross vehicle weight(kg) | 7500 | |
| Persons in cab | 3 | |
| Whole vehicle main performance | Max. speed(km/h) | 100 |
| ENGINE | Model | BJ493ZLQV1 |
| Emissions standards | EuroⅢ | |
| Displacement(L) | 2.771 | |
| Rated Power(kw/rpm) | 80 | |
| Max torque (N.m/rpm) | 280 | |
| Gearbox | Model | 5S368 |
| Front axle | Type/Mainreducetion ratio | 2.4T |
| Rear axle | Type/Mainreducetion ratio | 4.5T/5.714 |
| Suspension | Front suspension/Leaf spring number | 3 |
| Rear suspension/Leaf spring number | 8+6 | |
| Brake system | Service brake | Drum pneumatic braking |
| Parking brake | Brake gas brake | |
| Auxiliary brake | Engine exhaust brake | |
| Wheels and tyre size | 6+1/( 7.00R16) | |
Technical Parameters of Refueling Truck
|
Tank
|
top color | optinal |
| Volume | 4m3 | |
| Tank material and thickness |
Part of the tank material,thickness:Q235B carbon steel, 4mm Head material and thickness: Q235B carbon steel, 5mm |
|
| Emergency shut-off valve |
Quantity: 1 Material thickness: aluminum alloy |
|
| Manhole cover |
Type: Aluminum European standard breathing valve with tank port Quantity: 1 Diameter: 500mm |
|
| Oil pump and pipeline |
Oil pump, seamless steel pipe; Pump flow: 30m³/h; Pump pressure: 0.6Mpa; Speed: 960r/min; Shaft power: 7.1KW |
|
| Pump inlet and outlet |
Specification: choose one of DN50/DN65, aluminum alloy Control method: manual |
|
| Refueling reel and fueling gun |
15m automatic return reel nozzle
|
|
|
Fuel dispenser
|
Three gold medals Chinese and English fuel dispenser (with ticketing function) | |
| power takeoff | SDQ51-38PQ1 (flange output) or SDQ51-38LGQ1 (spline output) | |
|
Climb the ladder
|
Welded independent climbing ladder at the end of the tank-movable European style climbing ladder with anti-skid board | |
|
Top guard
|
Protective handrails are installed on both sides of the top of the tank-aluminum alloy folding guardrail Anti-skid plate installed on the top of the tank-anti-skid walkway |
|
| Tube box |
Number: 2 Installation position: one on each side of the tank Specifications: The length of the tube box is the same as the tank body, and the cross section is circular Water diversion pipe: each pipe box has a built-in water diversion pipe with male and female end joints. The joint model is DN50/DN65. |
|
| Fire extinguisher barrel |
Material: Q235 Quantity: 2 |
|
| Fire extinguisher | Specification: 4KG Quantity: 2 | |
| exhaust pipe | Rear to front | |
| Electrostatic device |
Metal electrostatic plate, electrostatic belt device: 1 each
|
|
| Subframe | Tank bottom auxiliary beam | Made of Q345 carbon steel plate |
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
