Product Details:
Payment & Shipping Terms:
|
| Tanker Material: | Carbon Steel, Stainless Steel, Aluminum Alloy | Product Name: | Fuel Oil Disel Gasoline Tank Tanker Bowser |
|---|---|---|---|
| Drive Type: | 4X2 6 WHEELS 6 WHEELER | Drive Model: | Left Hand Drive, Or Right Hand Drive |
| Loading Capacity: | 4000 Liters 5000 Liters 4cbm, 5cbm | Truck Brand: | Sinotruk/Sinotruck HOWO, Shacman, FAW, FOTON, Jac |
| Tuck Type: | Oil Delivery Transport Truck, Oil Refueling Bowser | Other Equipment: | Charging/discharging Valves. API Manhole |
| Engine: | Snotruk HOWO YUNNEI 116hp | Truck Type: | Fuel/Oil Delivery Or Transport. Fuel/Oil Refueling |
| High Light: | 5cbm Refueler Truck,Sinotruk HOWO Refueler Truck,116HP Mobile Refueling Truck |
||

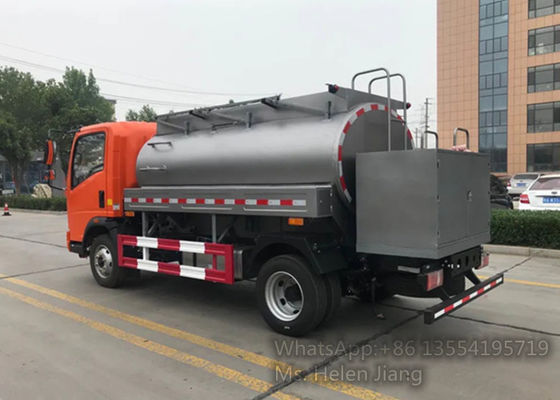

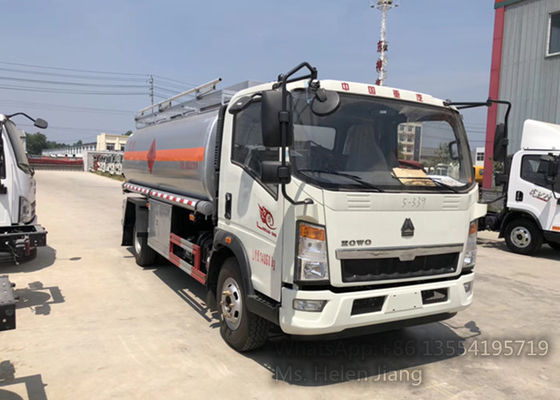

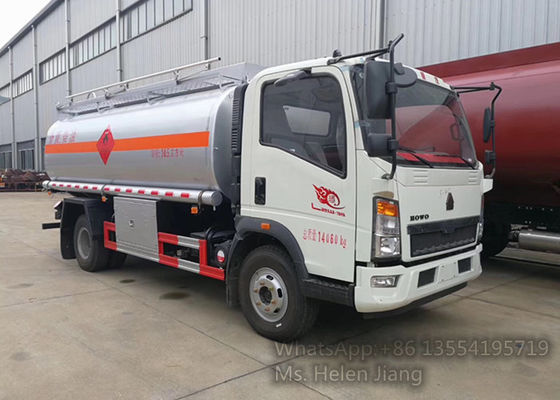

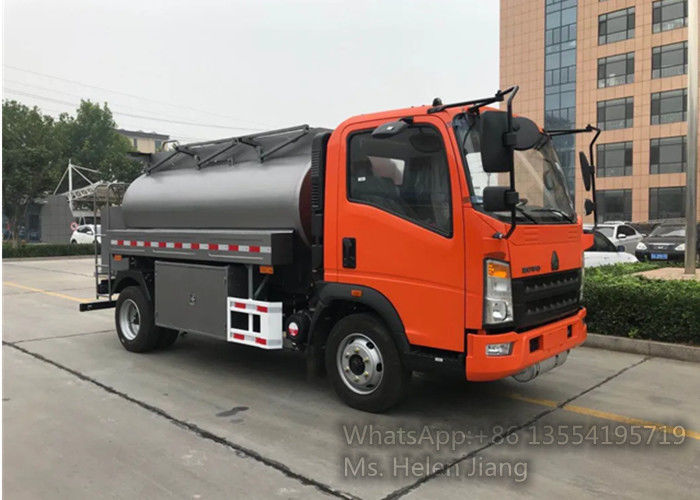

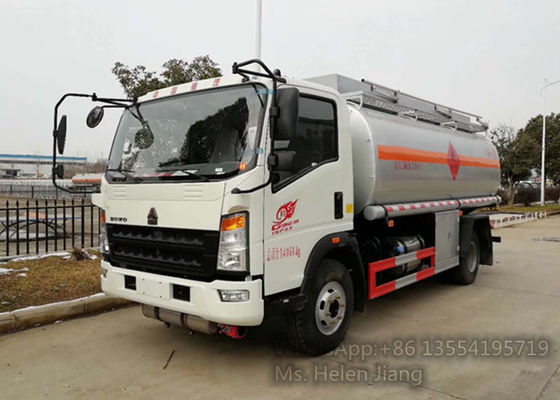

Sinotruk HOWO 4x2 116HP 4cbm 5cbm 4000L 5000L Fuel Refueling Tank Truck Fuel Bower Oil Tank Truck With Dispenser
Product Description
HOWO 4X2 5 cbm Tank Truck capacity is equipped with ultra-high strength integrated auxiliary frame, ensuring its stability and high strength. The 5 cbm Tank Truck can adapt to varied harsh conditions and improves its service life.
Safe and Secure
The specially designed cab is made using the newest robotic welding techniques and complies with the strictest front collision and top pressure regulations.
The instrument panel, mirror placement and overall design contribute to a field of view unparalleled in the industry.
Built for the Driver
The four point shock absorbing mounting, double layer door sealing, and noise reduction technology built into the cab help reduce driver fatigue during those long days on the job.
The interior trim of red and black exudes a sports car feeling to reduce visual monotony. Bluetooth technology with steering wheel controls allows hands free use of mobile devices (where permitted) to maintain contact with coworkers.
The cab tilts forward to allow easy access to engine and transmission for maintenance.
The front mounted air conditioning components allows for ease of maintenance and repair, saving time and money.
Improved Braking Technology
By making full use of engine braking, braking distance has been reduced by 15% and brake lining wear is decreased by 50%.
Energy-saving Technology
The engine dual power mode, coupled with the unique intelligent transmission's power matching technology results in a 10% fuel savings.
Leading-edge Steering Technology
The large displacement power steering pump reduces operator effort by 40%.
Optimizing chassis geometry and front axle steering angle reduces the turning circle by 15%.
Anti-buildup Technology
The three section blade provides an efficient discharge angle.
The flushing device, an innovative front taper and ball-crown connecting structure are installed at the rear taper, in order to clear stagnant aggregate from the dead space, and to prevent aggregate from piling up at front and rear tapers. Due to this, the residual rate at the discharge port declines to 0.4%.
Maintenance Tips
Dashboard mounted monitor provides maintenance alarms for the truck's key components such as engine, axle, and transmission in order to facilitate maintenance scheduling.
product Specification
| Chassis parameters | |||||
| Chassis model | ZZ1067F341BD165 | Chassis brand | HOWO | ||
| Overall dimensions | 5800×2200×2270mm | Wheel base | 3400mm | ||
| Front/rear wheel track | 1730/1650mm | Front/rear suspension | 1150/1745mm | ||
| Approach/departure angle | 21/19° | Maximum speed | 80km/h | ||
| Chassis Manufacturer | China National Heavy Duty Truck Group Co.,Ltd | ||||
| Cab | Configuration | 1880 a row and a half cab(with sleeping berth), allowable 3 passengers | |||
| Color | White, other color is optional | ||||
| Engine | Model | ISF3.8S3141 | |||
| Emission | Euro 3 | ||||
| Type | 4 cylinders,in-line, verticle type, 4-stroke, water-cooled, turbo inter-cooling, direct injection, diesel engine | ||||
| Rated power | 130hp, rated power speed 2800rpm | ||||
| Displacement | 4214ml | ||||
| Max.torque | 420N.m | ||||
| Bore x stroke | 108x115mm | ||||
| Manufacturer | Cummins Machinery Group Co.,Ltd | ||||
| Tire | Size | 215/75R17.5 | |||
| Number | 6 nos | ||||
| Brake | Air brake | ||||
| Front axle | 2.4T | ||||
| Rear axle | 4.2T | ||||
| Drive form | 4X2 | ||||
| Rated voltage | 24V, DC | ||||
| Transmissions | WLY6T51 , 6 speed forward 1 reverse |
||||
| Steering device | Power assisted steering | ||||
| Steering wheel | Left hand drive | ||||
| Selective configuration | Steel wire tire, air conditioner, right hand drive | ||||
| If there is a slight change in the chassis parameters above, please take the actual product as the standard | |||||
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
