Product Details:
Payment & Shipping Terms:
|
| Tanker Material: | Carbon Steel, Stainless Steel, Aluminum Alloy | Product Name: | Fuel Oil Disel Gasoline Tank Tanker Dispenser Bowser |
|---|---|---|---|
| Drive Type: | 4X2 6 WHEELS 6 WHEELER | Drive Model: | Left Hand Drive, Or Right Hand Drive |
| Loading Capacity: | 4000 Liters 5000 Liters 4M3, 5M3 | Truck Brand: | Sinotruk/Sinotruck HOWO, Shacman, FAW, FOTON, Jac |
| Tuck Type: | Oil Delivery Transport Truck, Oil Refueling Bowser | Other Equipment: | Charging/discharging Valves. API Manhole |
| Engine: | F3.8s3141, FOTON Cummins Brand | Truck Type: | Fuel/Oil Delivery Or Transport. Fuel/Oil Refueling |
| High Light: | 4X2 Fuel Dispenser Truck,5m3 Fuel Dispenser Truck,FOTON AUMARK-S33 Mobile Refueling Truck |
||

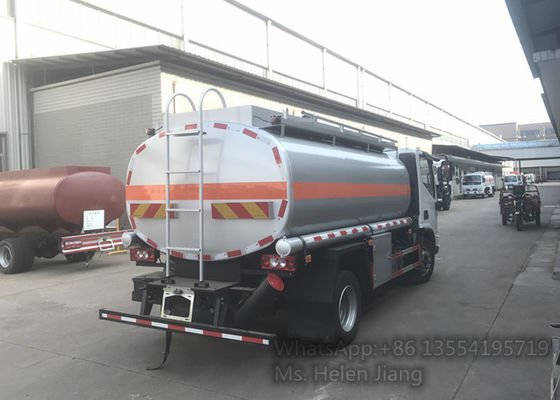

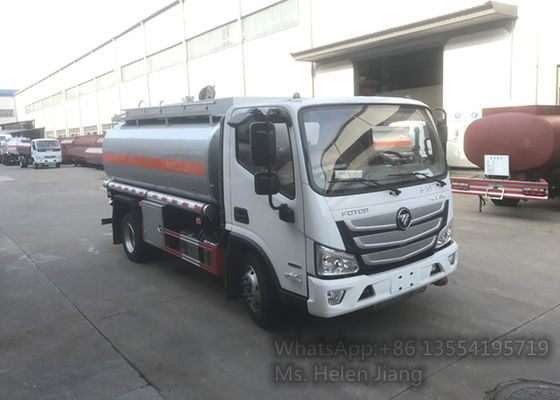

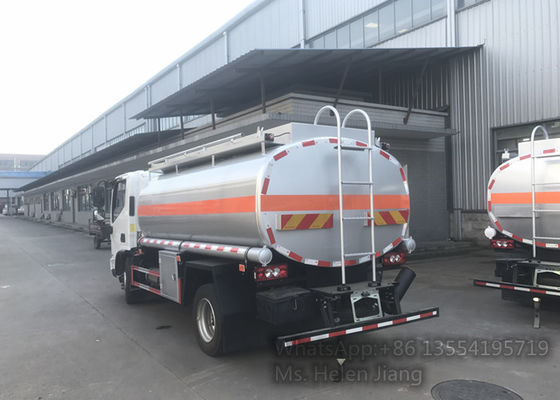

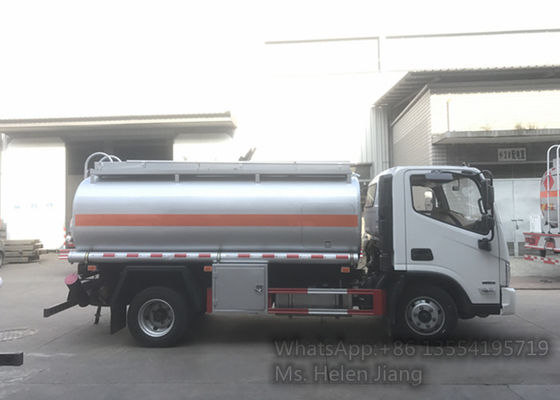

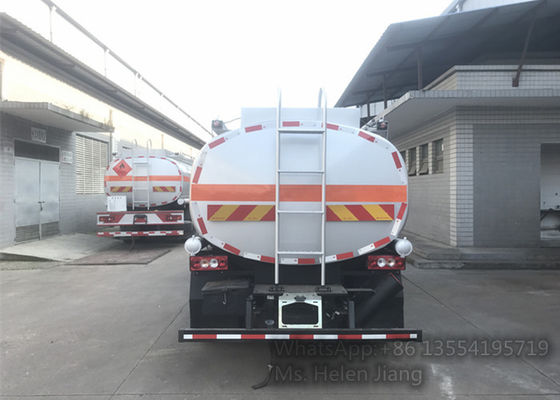

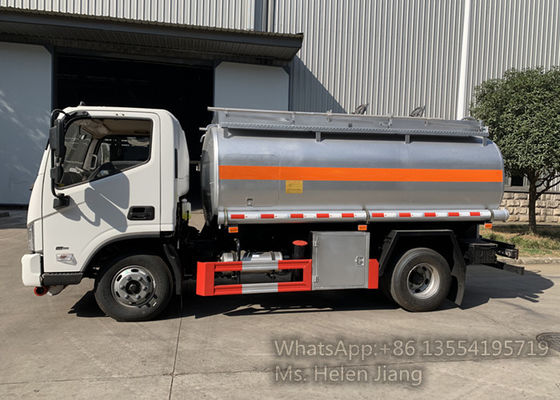

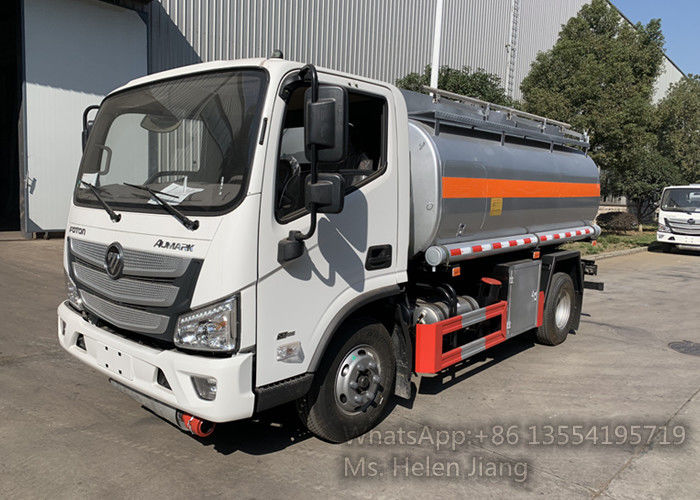

FOTON AUMARK-S33 4x2 5000 Liters Small Mini Fuel Dispenser Truck Oil Refueling Tank Truck With Filling Machine
Product Description
Fuel tank truck also called oil tank truck could be equipped with fuel pump to realize pumping in and out, with fuel dispenser to filling different kinds of oil to the other equipment at anywhere.The tanker could be divided into many compartments for transporting different types of fuel, which could be loading and discharging totally separate.The material of the tanker could be carbon steel, stainless steel, aluminum alloy.
product Specification
| Vehicle model | AUMARK-S33 | |
| Cabin | Single row/W2060/left rudder | |
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 5890×2105×2400 |
| Wheel base(mm) | 3360 | |
| Weight data | Curb weight(kg) | 3210 |
| Gross vehicle weight(kg) | 8275 | |
| Persons in cab | 3 | |
| Whole vehicle main performance | Max. speed(km/h) | 105 |
| ENGINE | Model | F3.8s3141 |
| Emissions standards | EuroⅢ | |
| Displacement(L) | 3.76 | |
| Rated Power(kw/rpm) | 105 | |
| Max torque (N.m/rpm) | 450 | |
| Gearbox | Model | 6S558 |
| Front axle | Type/Mainreducetion ratio | 3.6T |
| Rear axle | Type/Mainreducetion ratio | 6T/5.286 |
| Suspension | Front suspension/Leaf spring number | 9 |
| Rear suspension/Leaf spring number | 8+6 | |
| Brake system | Service brake | Drum pneumatic braking |
| Parking brake | Brake gas brake | |
| Auxiliary brake | Engine exhaust brake | |
| Wheels and tyre size | 6+1/(L8.25R1614L) | |
Technical Parameters of Refueling Truck
|
Tank
|
top color | optinal |
| Volume | 4m3 | |
| Tank material and thickness |
Part of the tank material,thickness:Q235B carbon steel, 4mm Head material and thickness: Q235B carbon steel, 5mm |
|
| Emergency shut-off valve |
Quantity: 1 Material thickness: aluminum alloy |
|
| Manhole cover |
Type: Aluminum European standard breathing valve with tank port Quantity: 1 Diameter: 500mm |
|
| Oil pump and pipeline |
Oil pump, seamless steel pipe; Pump flow: 30m³/h; Pump pressure: 0.6Mpa; Speed: 960r/min; Shaft power: 7.1KW |
|
| Pump inlet and outlet |
Specification: choose one of DN50/DN65, aluminum alloy Control method: manual |
|
| Refueling reel and fueling gun |
15m automatic return reel nozzle
|
|
|
Fuel dispenser
|
Three gold medals Chinese and English fuel dispenser (with ticketing function) | |
| power takeoff | SDQ51-38PQ1 (flange output) or SDQ51-38LGQ1 (spline output) | |
|
Climb the ladder
|
Welded independent climbing ladder at the end of the tank-movable European style climbing ladder with anti-skid board | |
|
Top guard
|
Protective handrails are installed on both sides of the top of the tank-aluminum alloy folding guardrail Anti-skid plate installed on the top of the tank-anti-skid walkway |
|
| Tube box |
Number: 2 Installation position: one on each side of the tank Specifications: The length of the tube box is the same as the tank body, and the cross section is circular Water diversion pipe: each pipe box has a built-in water diversion pipe with male and female end joints. The joint model is DN50/DN65. |
|
| Fire extinguisher barrel |
Material: Q235 Quantity: 2 |
|
| Fire extinguisher | Specification: 4KG Quantity: 2 | |
| exhaust pipe | Rear to front | |
| Electrostatic device |
Metal electrostatic plate, electrostatic belt device: 1 each
|
|
| Subframe | Tank bottom auxiliary beam | Made of Q345 carbon steel plate |
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
