Product Details:
Payment & Shipping Terms:
|
| Design Code: | Total Standard | Type Of Discharge Valve: | API Or French Style |
|---|---|---|---|
| No. Of Compartment: | 2 Or 3 Or 4 Or 5 Or 6 Or 7 Or 8 | Size Of Discharge Valve: | 3inch Or 4 Inch |
| No. Of Axle: | 2 Or 3 Or 4 | Axle Brand: | BPW Or Fuwa Or Hj |
| Tyre Brand: | Triangle Or Double Coin | Size Of Tire: | 12r22.5 Or 315/80r22.5 Or 385/60r22.5 |
| Air Operated Shut-off Valves: | Yes | Rear Ladder: | Yes |
| Top Safety Rail: | Yes | Level Gauge: | Optional |
| Anti-Theft Lock: | Optional | Additional Fuel Tanker: | 500liter Or 1000liter Are Optional |
| Spare Tire Rack: | Yes | ||
| High Light: | 49100L Tank Semi Trailer,Q370R Tank Semi Trailer,49100L LPG Semi Trailer |
||
3 Axles 49100Liters Liquid Ammonia Transport Semi trailer Gas Ammonia Liquid LPG Tank Trailer
Product Description
1. Purpose: It is used for transporting Liquid Ammonia.
2. Main parts: Bottom valve, pipeline and liquid line.
3. Tank material for optional: Carbon steel, Stainless steel 304 and Stainless steel 316L etc.
4. Design: Cylinder-shaped and V-shaped design.
Optional for chemical Tanker Trailer:
1. Tank Material: Carbon Steel/Stainless Steel Material etc
2. Tank Volume: 18000-30000Liters
3. Axle Quantity: 2 Axles / 3 Axles / 4 Axles for choose
4. Axle Brand: FUWA or BPW and other China certificated brand,12ton, 13ton, 16ton, 18ton, 20ton for choose
5. Suspension: Mechanic Suspension, Air Suspension, and Bogie Suspension etc.
Specification
|
Tanker Essential Information |
Dimensions(length*width*height) | 13000×2500×3990(MM) |
| Estimated Tare Weight | 14922KG | |
| Payload | 25078KG | |
| Total Weight | 40000KG | |
| Shell Of Tanker | Products | Liquid ammonia, LPG, Propane |
| Tank volume | 49100 Liters | |
| Fluidproperty | Flammable | |
| Design temperature | 50°C | |
| Design pressure | 2.16MPa | |
| Corrosion allowance | 1.0mm | |
| Major materials of bearing pressure | Tanker body : Q370R | |
| End plate : Q370R | ||
| Main Beam : Q345B | ||
| Compartments | One | |
| Baffle inside the tank |
14-off Aluminium bolted plate , thickness is 5mm |
|
| Shape | Cylindrical ; Ellipse head | |
| Safety Valve | Quantity | Two |
| Location | On the top of tanker ; | |
| Type | Only weld suitable flange | |
| Size | As customer's requirement | |
| Running System | Axles | 13 TON BPW Axles |
| Suspension system | Mechanical suspension | |
| Wheel rim | 9.0-22.5 | |
| Tyre | 12R22.5 | |
| Kingpin | JOST2",bolt on ,in rubbing plate | |
| Landing legs | JOST | |
| Pneumatic Braking System | WABCO RE 6 relay valve; Spring brake chamber; 2 pieces of 45L air tanks | |
| Electronical System | 7-Pin Socket | 24V 7-pin socket |
| LED Lamp | All kinds of lamp | |
| Cable | Stander cable | |

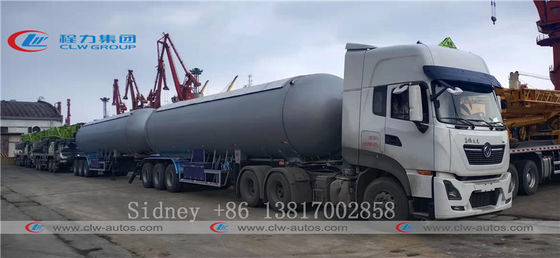

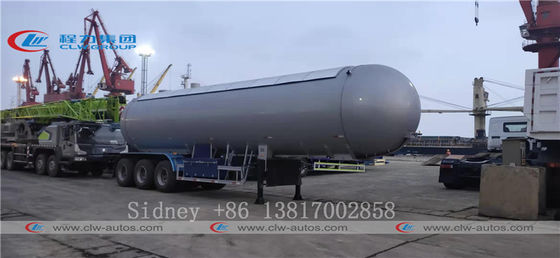

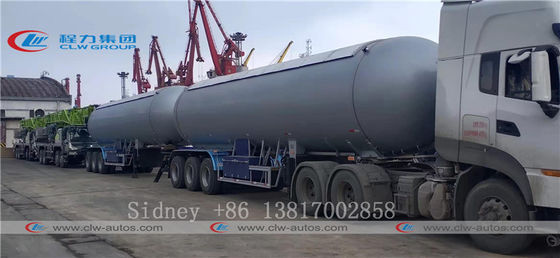

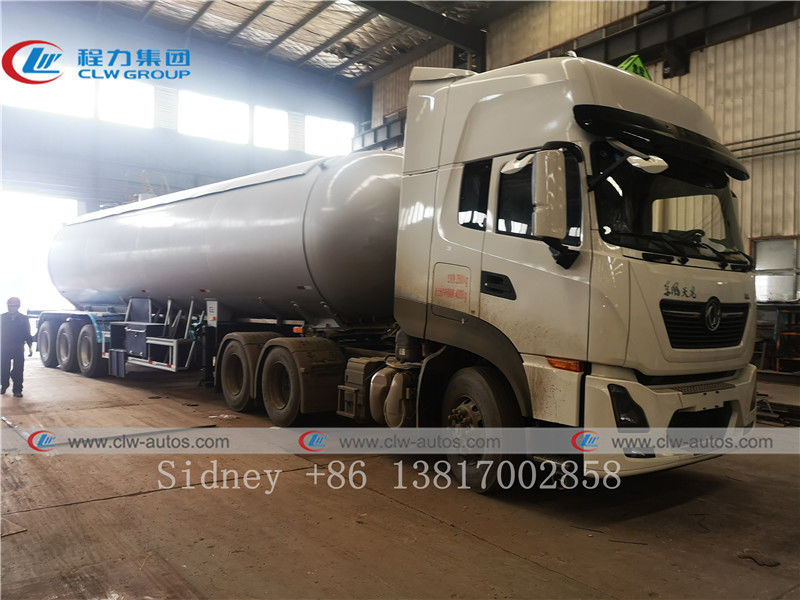

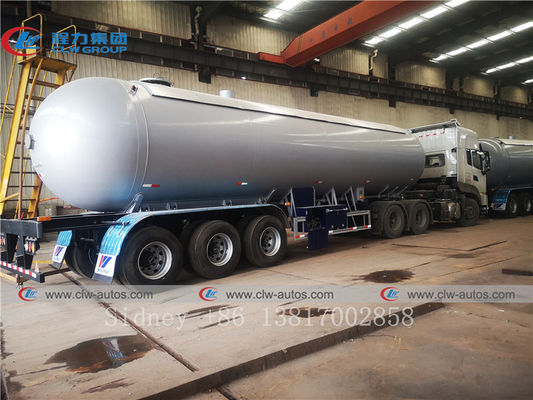

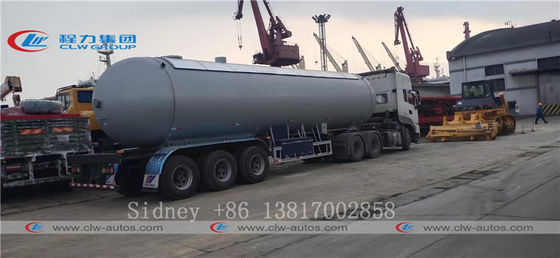

Reference Photos
Parts of Chemical tank/trailer
Factory Overview
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of fuel tank trailer I can order from your company?
A: We can supply various sizes of fuel tank trailer from30-50tons,etc.
Q2: What's the material of your fuel tanker?
A: We usually provide carbon steel, stainless steel, and aluminium materials for customer choice.
Q3: What is your production standard of fuel tank trailer? Whether your fuel tank trailer export to USA, Canada and Europen countries?
A: Our fuel tank trailer is produced as per China GB local standard; We can export super structure to those market, we ever exported fuel tank trailer super structure to Europen countries before.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
