Product Details:
Payment & Shipping Terms:
|
| Tipper Body: | High Tensile Carbon Steel | Product Name: | Shacman Dump Truck,Shacman F3000 Tipper Truck,dump Truck For Zimbabwe |
|---|---|---|---|
| Drive Type: | 6X4 10 WHEELS 10 WHEELER Dump Truck | Drive Model: | Left Hand Drive Or RHD |
| Loading Capacity: | 20 Tons, 25 Tons, 30 Tons, 20T, 25T. 30T 40tons Dump Truck | Truck Brand: | Sinotruk/Sinotruck HOWO, Shacman, FAW, FOTON, Jac |
| Tuck Type: | Front Tipping, Or Middle Tipping | Hydraulic: | HYVA Or Chinese Hydraulic Cylinder |
| Condition: | BRAND NEW Or Used | ||
| High Light: | 20CBM Tipper Dump Truck,RHD Tipper Dump Truck,Shacman F3000 Tipper Dumper Truck |
||

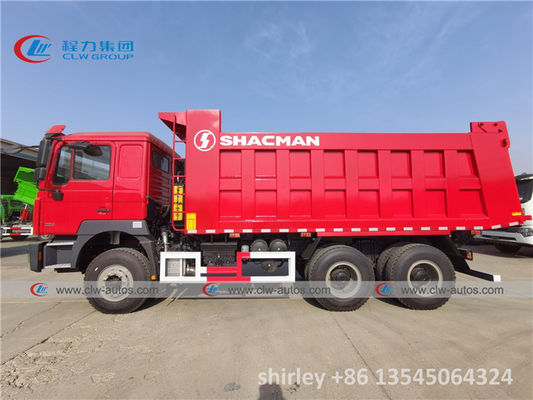

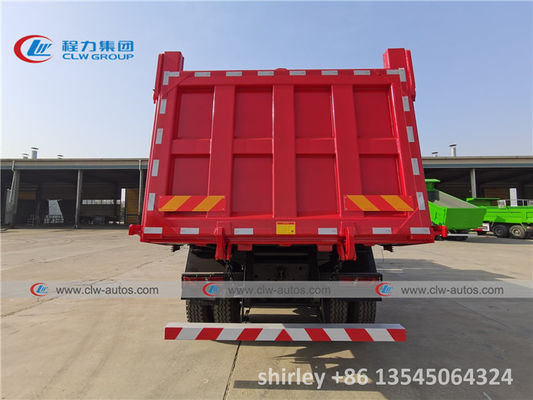

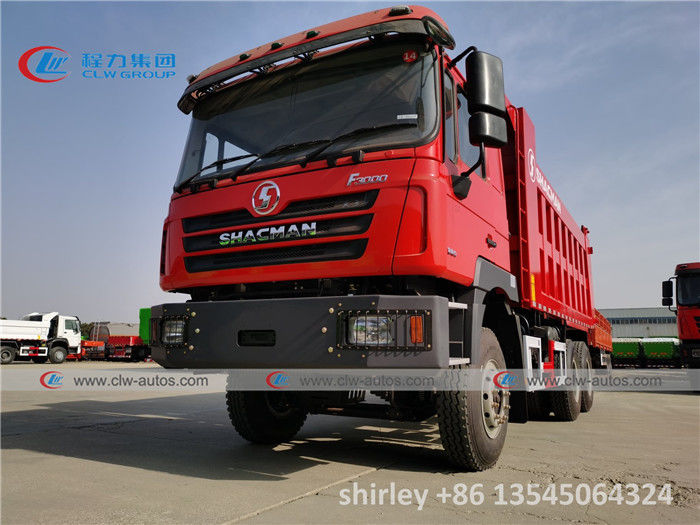

Shacman F3000 6X4 Dump Truck,Right hand drive 20 Cubic meters Tipper truck
Product Description

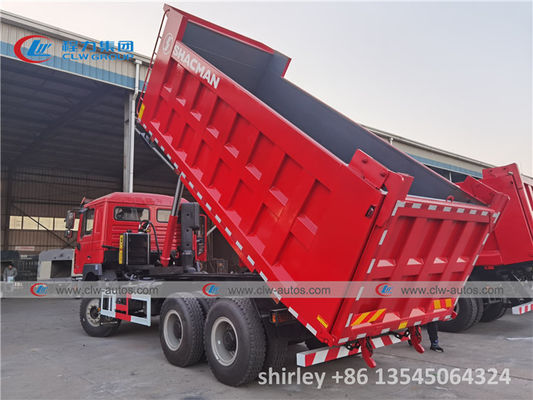

Shacman F3000 dump truck is a vehicle that unloads cargo by hydraulic or mechanical lifting. Also known as the tipper truck. It consists of a truck chassis, a hydraulic lifting system, a cargo compartment and a power take-off device.
Except for shacman F3000 dump truck,we also supply other series,such as Shacman H3000 and Shacman X3000,Howo dump truck,faw dump truck...Single-bridge dump truck, double-bridge dump truck, flat-head dump truck, pointed dump truck, front four rear eight dump trucks, double-bridge semi-trailer dump trucks, three-bridge semi-trailer dump trucks.
Variety classification
Specification
| Model | SX3255DR38 | |
| Drive type | 6x4 LHD or RHD | |
| Cab | Type | F3000 mid-lengthened flat roof with AC |
| Equipment | Hydraulic main seat, four-point hydraulic suspension cab, common rear-view mirrors, electronically controlled automatic constant temperature air conditioner, manual window shaker, manual flip, common air filter, metal bumper, two-stage pedal, water tank protection grille, taillight protection Grid,WABCO 6 line ABS, 180Ah battery, SHACMAN logo | |
| Vehicle Main Dimensions |
Wheel base(mm) | 3775+1400 |
| Total dimensions | 8750×2490×3450 | |
| Front/Rear overhang(mm) | 1525/1629 | |
| Approach/Departure | 28/23 | |
| Weight | Kerb mass | 12400kg |
| Total mass | 25000kg | |
| Engine | Brand | WEICHAI |
| Model | WP10.340E22 | |
| Power(kw/HP) | 250/340 | |
| Displacement(L) | 9.726 | |
| Emission Standard | Euro II | |
| Transmission | Brand | FAST |
| Model | 10JSD180+QH50 | |
| Control type | Manual | |
| Gear shift | 10-forward and 2-reserve speeds | |
| axle | Front axel | MAN 7.5T |
| Rear axel | Man 16T double reduction axle with ratio 5.262 | |
| Tires | Type(Standard) | 12.00R20 |
| Dump Body | Cargo Dimension (mm) |
5600×2300×1500, 19.32CBM, HYVA Front lifting system, thickness of floor 8mm and side 6mm |
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
FAQ
Q: Can I buy a sample of your product for testing?
A. Yes, that's fine. Our MOQ is 1set.
Q: What's about the payment?
A: 40% deposit by T/T before order,balanced by T/T before delivery.
Q: How about quality of your factory product ?
A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .
Q: How do you gurantee the quality of the product?
A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.
Q: Why do you choose us?
A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.
Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.
Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
