Product Details:
Payment & Shipping Terms:
|
| Tanker Material: | Carbon Steel, Stainless Steel, Aluminum Alloy | Axle: | FUWA, BPW, L1, Brand |
|---|---|---|---|
| Axle Loading: | 13tons, Or 16tons | Oil Tanker: | 45M3, 45 Cubic Meters, 45000 LITERS |
| Suspension: | Front: Air Bag, Rear: Mechenical Suspension. | Transport: | Water, Drinking Water, |
| Function: | Water Delivery, Water Transport Truck Trailer | Landing Gear: | JOST Brand |
| Loading Capacity: | 45tons, 40tons, 45 Tons, 40 Tons. | ||
| High Light: | 45000L Tank Semi Trailer,Drinking Water Tank Semi Trailer,45000L 3 Axle Semi Trailer |
||

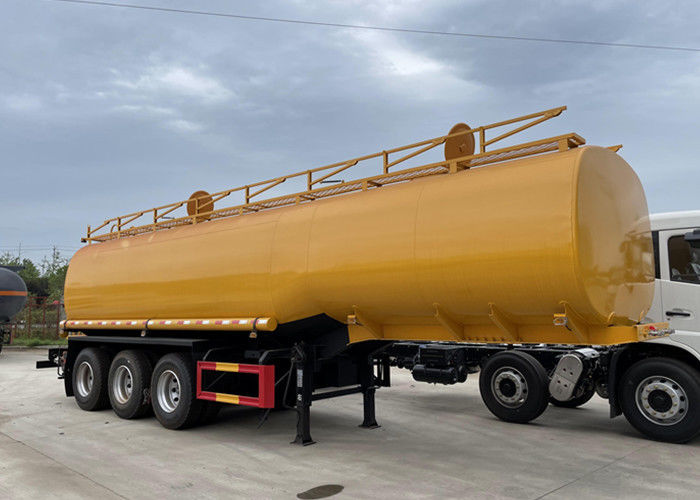

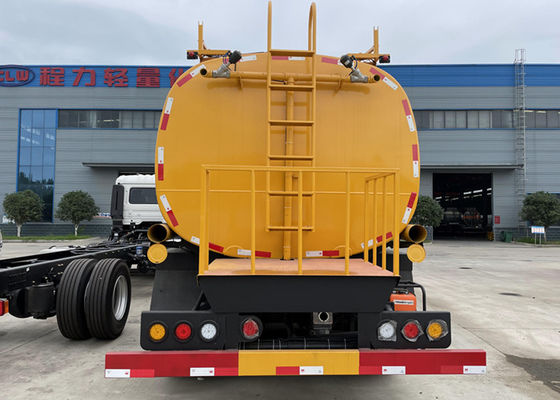

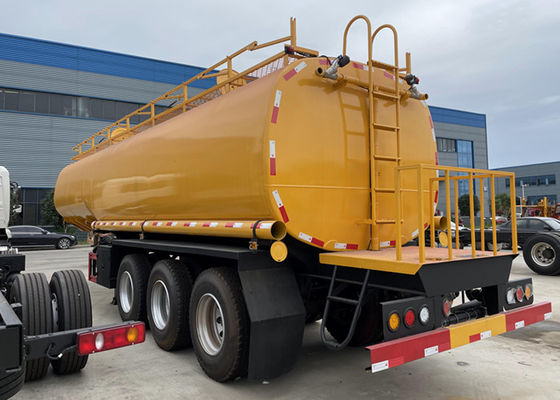

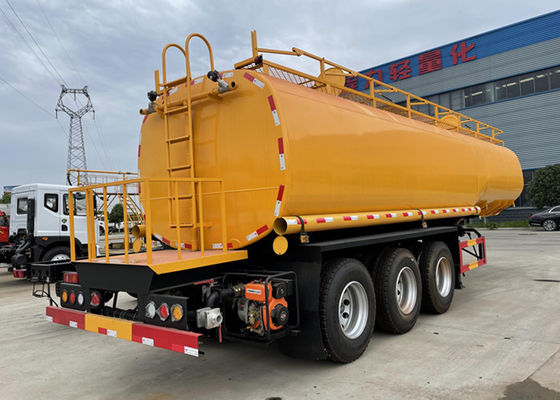

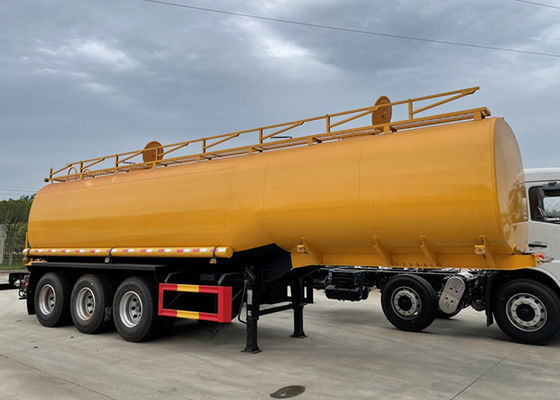

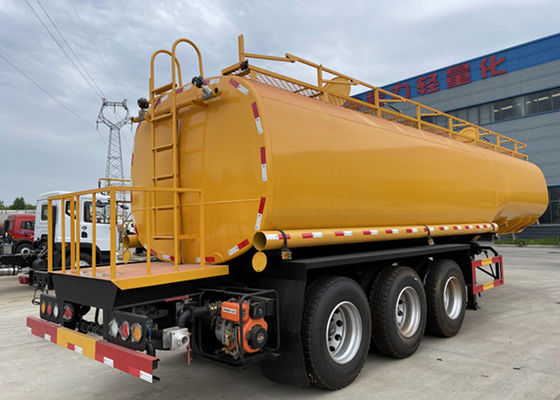

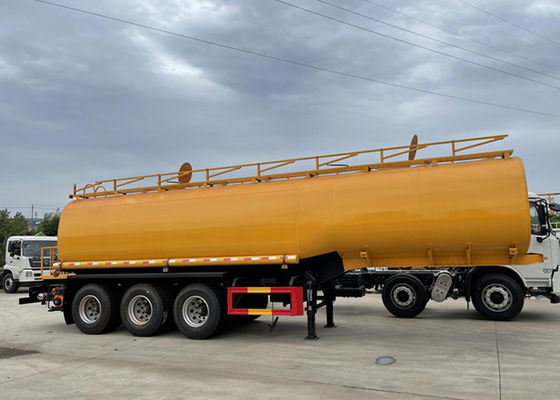

3 Axle 45000L Carbon Steel Water Delivery Tank Truck Trailer Water Tanker Delivery Transport truck Semi trailer
Description:
2. tank trailer for water and drinking water
3. water tank semi trailer with 10-60T
4. water tanker semi trailer transport water quick working speed.
We are specilized in designing and building many kinds of OZ ADR standard trailers, such as :
1. earth-moving side tipper;
2. end tipper,
3. grain end tipper;
4. water tanker;
5. quad-axle lowloader deck-widener;
6. tri-axle lowloader deck-widener;
7. 45ft dropdeck extendable;
8. 45ft flatdeck extendable;
9. 45ft sliding lowloader;
10. dolly trailer;
11. pig trailer/Tagalong Truck, etc.
| DIMENSIONS & WEIGHT (model: SY9402GYY). if you have any other special requirement or customized, please in your free to touch | |
| Overall Dimensions (L*W*H) | according to tank capacity to confrim |
| Tank Dimensions (L*W*H) | according to tank capacity to confrim |
| Volume | according to customer's needs |
| MAX. GVW | according to tank capacity to confrim |
| Kerb weight | according to tank capacity to confrim |
| Rated payload | according to tank capacity to confrim |
| TANK | |
| Material | carbon steel Q235 / Q345, opting aluminum alloy or Stainless steel |
| Thickness of shell | 6 mm |
| Thickness of dish | 7 mm |
| Compartments | compartment optional.(standard only one) |
| TANKER TOP ACCESSORIES | |
| Aluminum Fold Ladder with handrail on the rear up to the tank top walkway. Anti-slip Walkway 400mm wide reach the manholes, not covering the complete length of the tank | |
| TANKER EQUIPMENT ( CIVACON or EMCO, those are opting) | |
| Manhole | manhole covers (20") or (16") with filling opening. DN250 Pressure/vacuum valve. |
| discharge valve | double valve |
| Pump, PTO and cross shaft | 1 set (opting) |
| ELECTRONIC REGISTER FLOW METER (Opting) | |
| Model | M-80H (one set) |
| Details | Positive Displacement Flow Meter with Electronic Register Counter, Strainer. Air Eliminator, Printer & Communication Box & Stainless Steel, Solenoid Valve. |
| DISCHARGE METHOD | |
| Gravity discharge | |
| RUNNING GEAR | |
| Axle | BPW 3*13T axles , single or double wheel. (optional FUWA axle , 1 axle, 2 alxe, 3 axle, 4 axles, or with lift axle) |
Tire and Rim |
6 / 12 pieces tires (385R22.5) or double wheels 6 / 12 pieces rims (8.0/9.0*22.5) or Aluminum alloy rims |
| Suspension | Mechanical suspension leaf spring (made in China), or Air suspension in FUWA or BPW. |
| King pin | JOST 2" or 3.5" kingpin |
| Landing legs | JOST / FUWA one pair landing legs |
| BRAKING SYSTEM | |
| Double line air brakes Mechanical parking brake with WABCO emergency relay valve. WABCO ABS system or EBS system |
|
| ELECTRIC INSTALLATION | |
| Complete 24V system in explosion proof installation (made in China) LED lights. Rear lighting with rear, stop, parking, direction, fog, reverse lights, side lights | |
| PAINTING | |
| One primer +final painting ------- Aluminum tank, we suggest to keep original that will be better. We can polish. The chassis is sand blasting. Tanker internal corrosion protection: F44 (Opting) |
|
| ACCESSORIES | |
| Mudguards | PVC / Aluminium alloy Mudguards |
| Side protection | Aluminum side protection |
| Fire extinguishers carriers | 2pcs |
| Spare tire carrier | 1pcs |
| Tool box | 1 tool box with our factory's standard free tools |
Heavy Duty landing gears:
As per the capacity, there are 5ton 8ton, 15ton, 20ton,25ton, 28ton, 30ton and 35ton.
As per the gearbox, there are both Gearbox inside and Gearbox outside type.
As per the operation, there are both Single-Side Operation and Double-Side Operation type.
As per the Sand Shoe, there are T-Shoe, Casting T-Shoe, S-Shoe, R-Shoe and A-Shoe.
90# 3.5'' trailer welding king pin
We can provide several model with different specifications.
certification:ISO9001-2000
90# 3.5'' trailer bolt connecting king pin
1. specifical heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performance, strong load ability and lower self weight.
2. high quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability
3. high performance premiun non-asbestos brake linings, extend service life
4. easy for ABS installation
5. camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety
6. new tight fit hub cap have O rings, high property for sealing
Air Suspension is a type of automotive suspension that uses air springs instead of conventional steel springs. Computer-operated vents on the air springs, suspension sensors, and an on board air compressor allow the system to maintain ride height and vary the suspension's ride characteristics.
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of fuel delivery truck I can order from your company?
A: There are various sizes of fuel delivery truck with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: Have you supplied fuel delivery truck to any overseas companies?
A: Yes,with need of cleaning cities,we offered fuel delivery truck to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
